Diagnostic Procedure

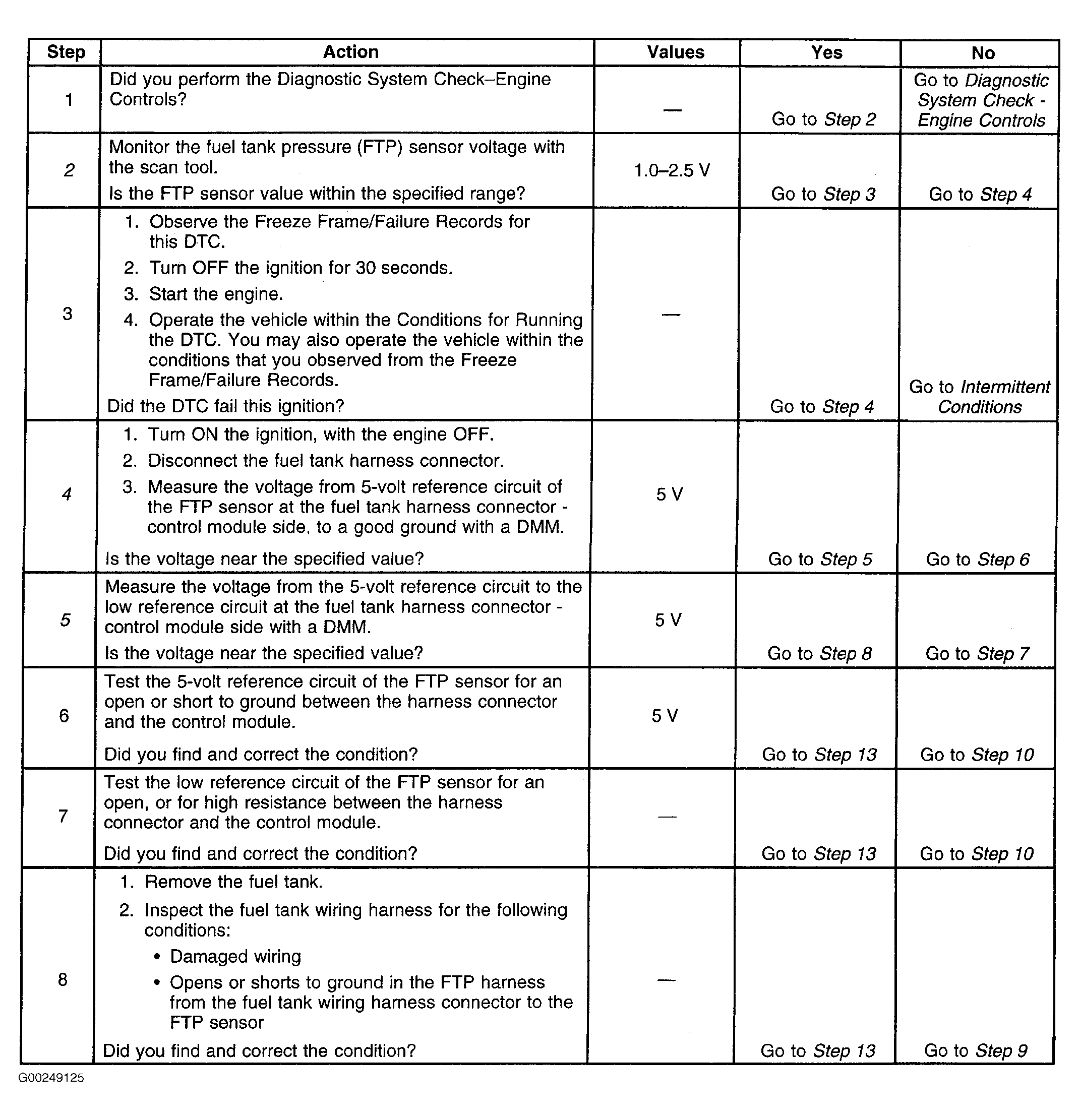

Fig 1: DTC P0451: EVAP Pressure Sensor Range/Performance (Steps 1-8)
G00249125Courtesy of GENERAL MOTORS CORP.

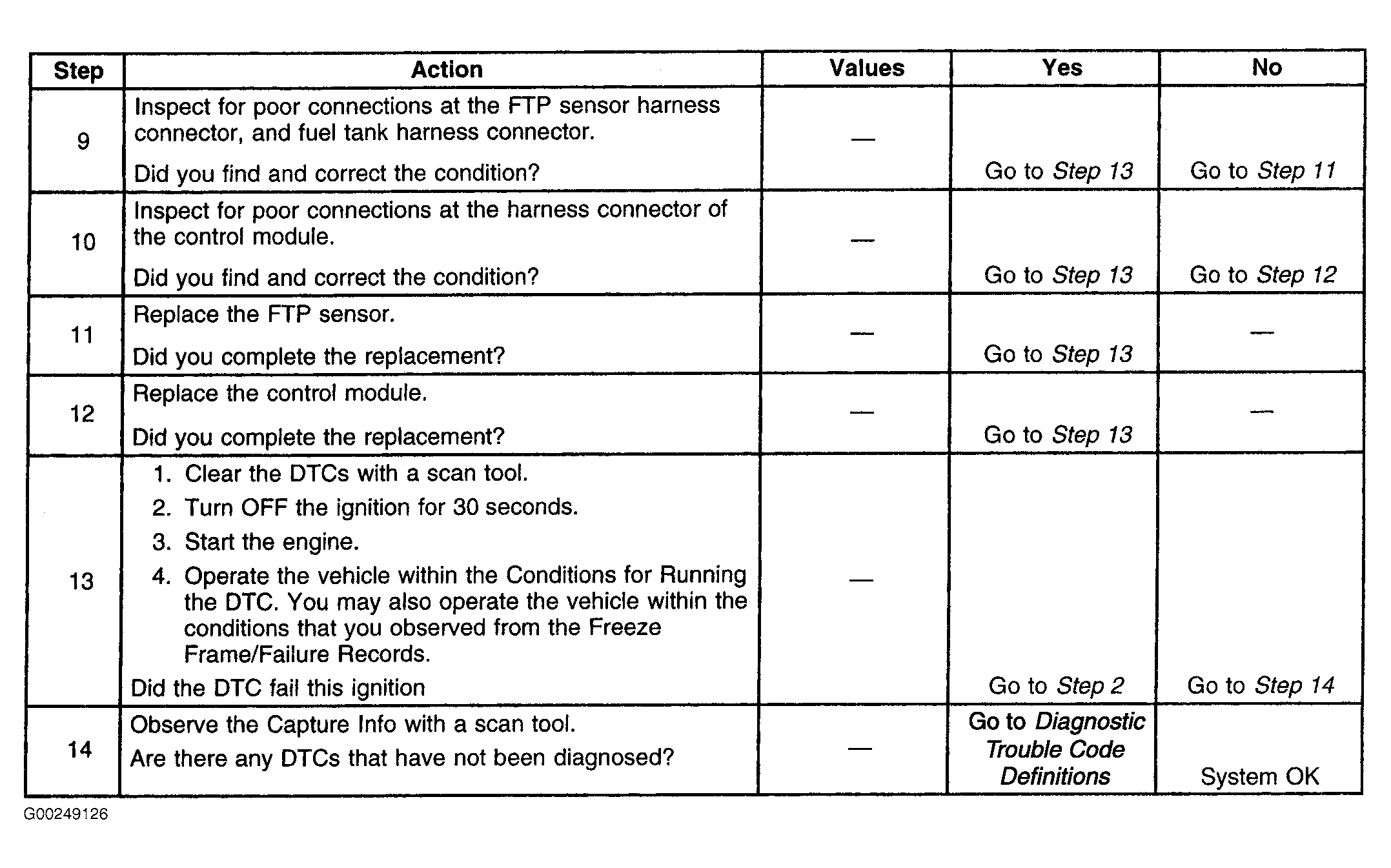

Fig 2: DTC P0451: EVAP Pressure Sensor Range/Performance (Steps 9-14)
G00249126Courtesy of GENERAL MOTORS CORP.
