Diagnostic Procedure

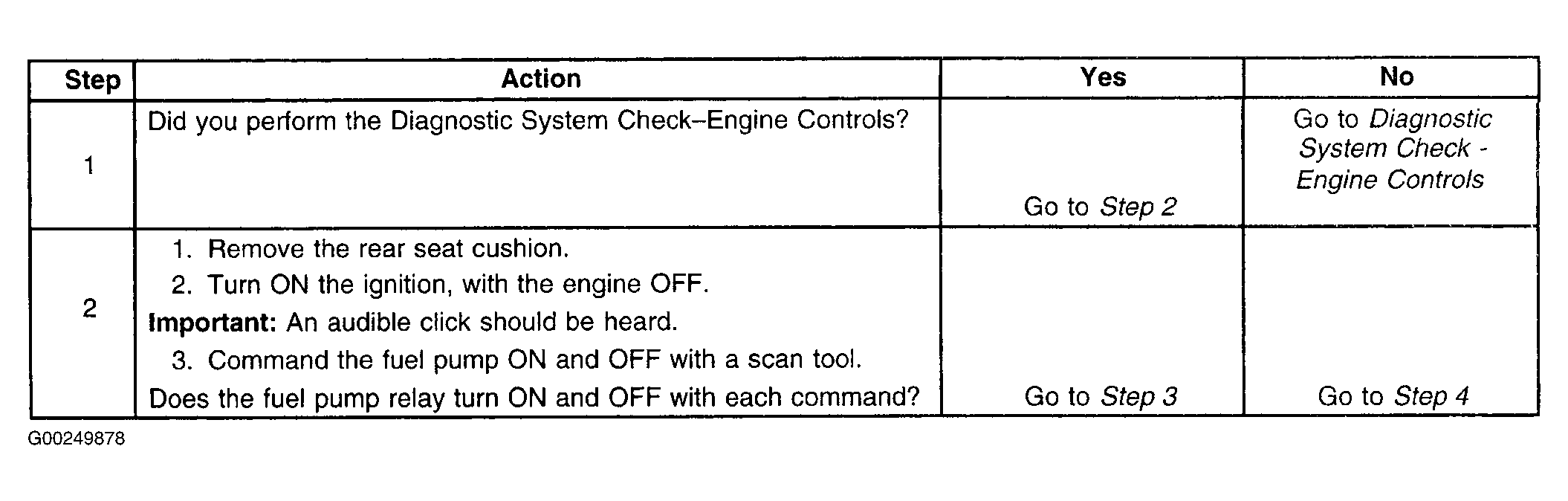

Fig 1: DTC P0629: Fuel Pump Relay Control Circuit High (Steps 1 & 2)
G00249878Courtesy of GENERAL MOTORS CORP.

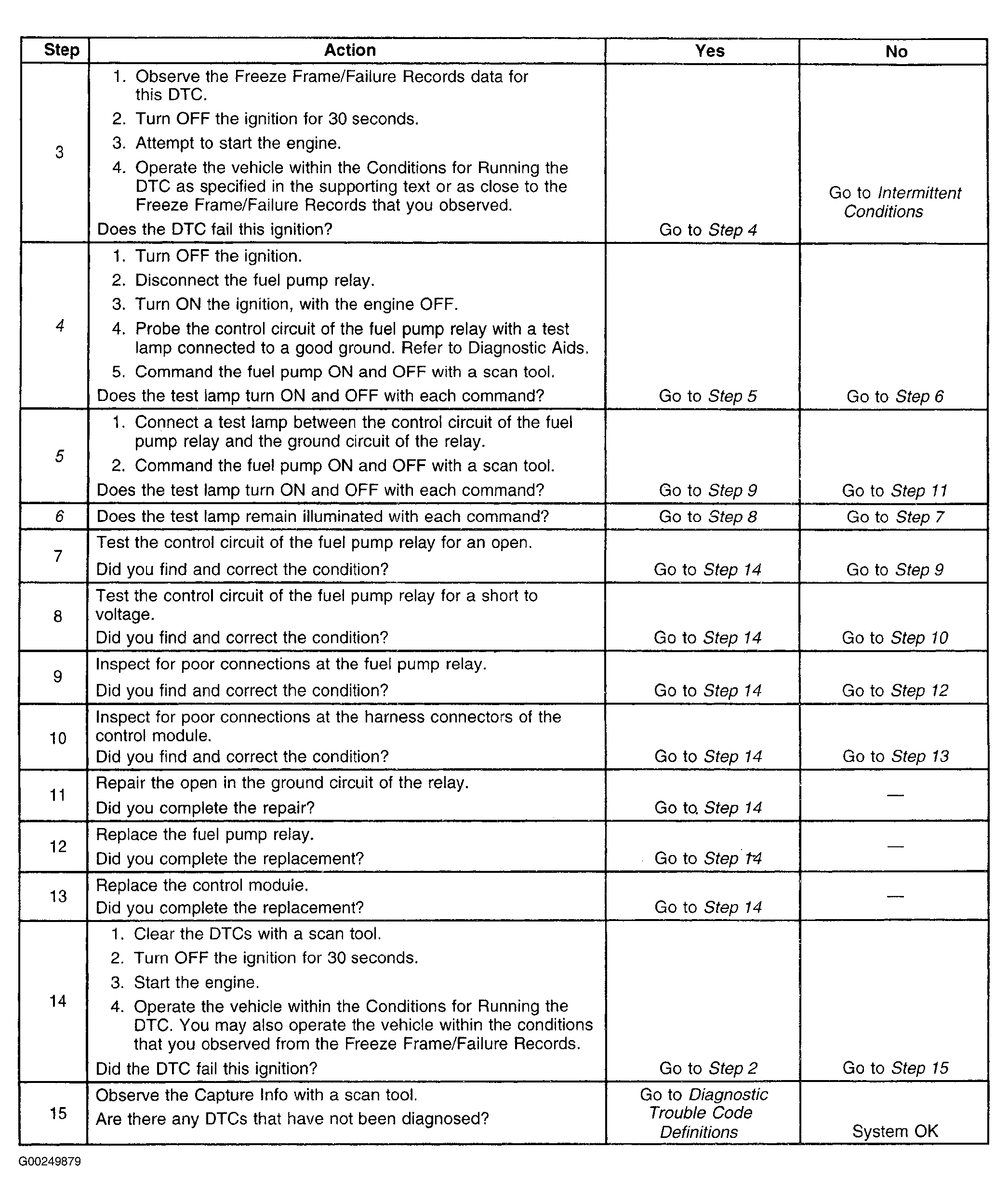

Fig 2: DTC P0629: Fuel Pump Relay Control Circuit High (Steps 3-15)
G00249879Courtesy of GENERAL MOTORS CORP.
