Diagnostic Procedure

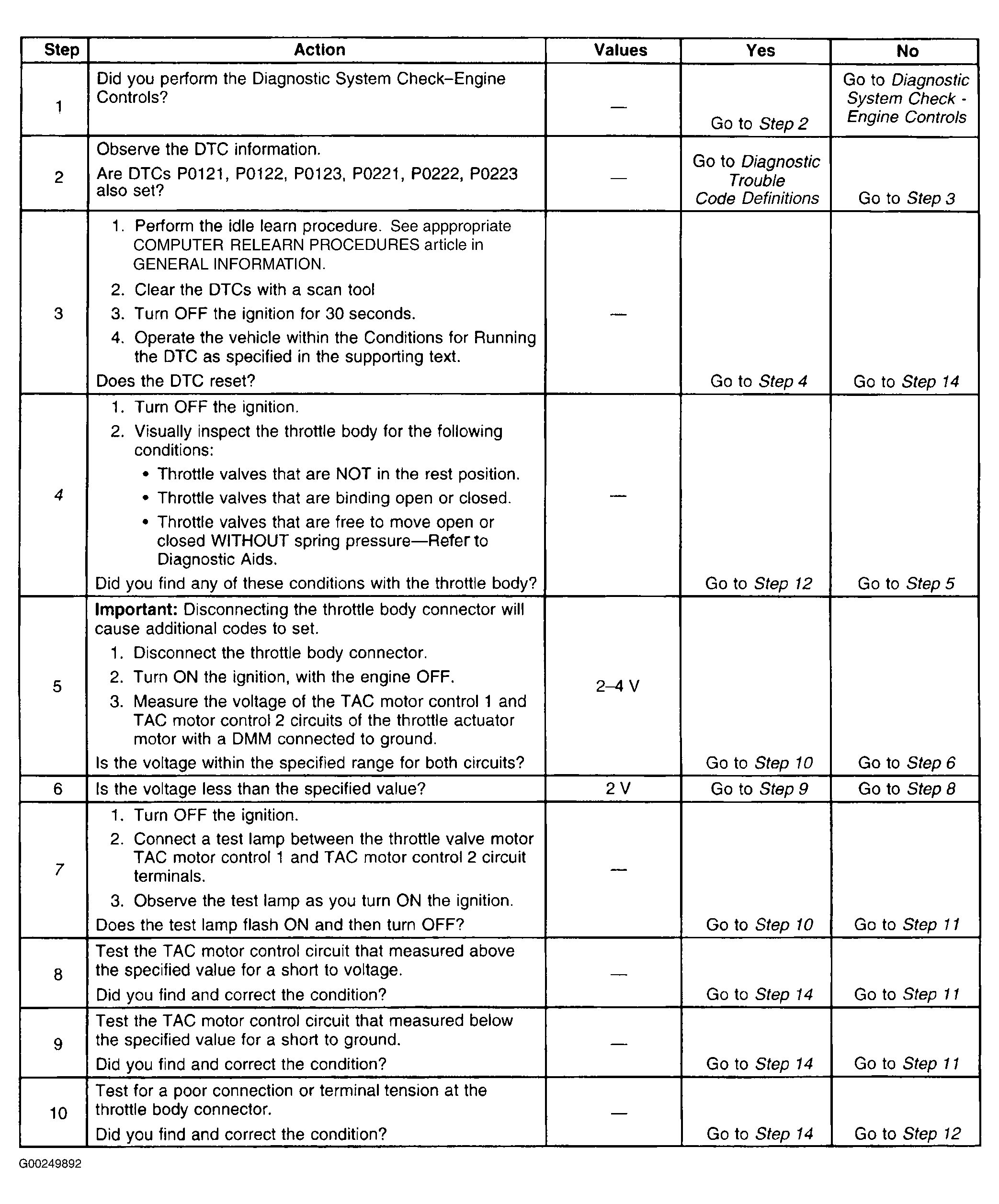

Fig 1: DTC P1551: Incorrect At Rest Throttle Position (Steps 1-10)
G00249892Courtesy of GENERAL MOTORS CORP.

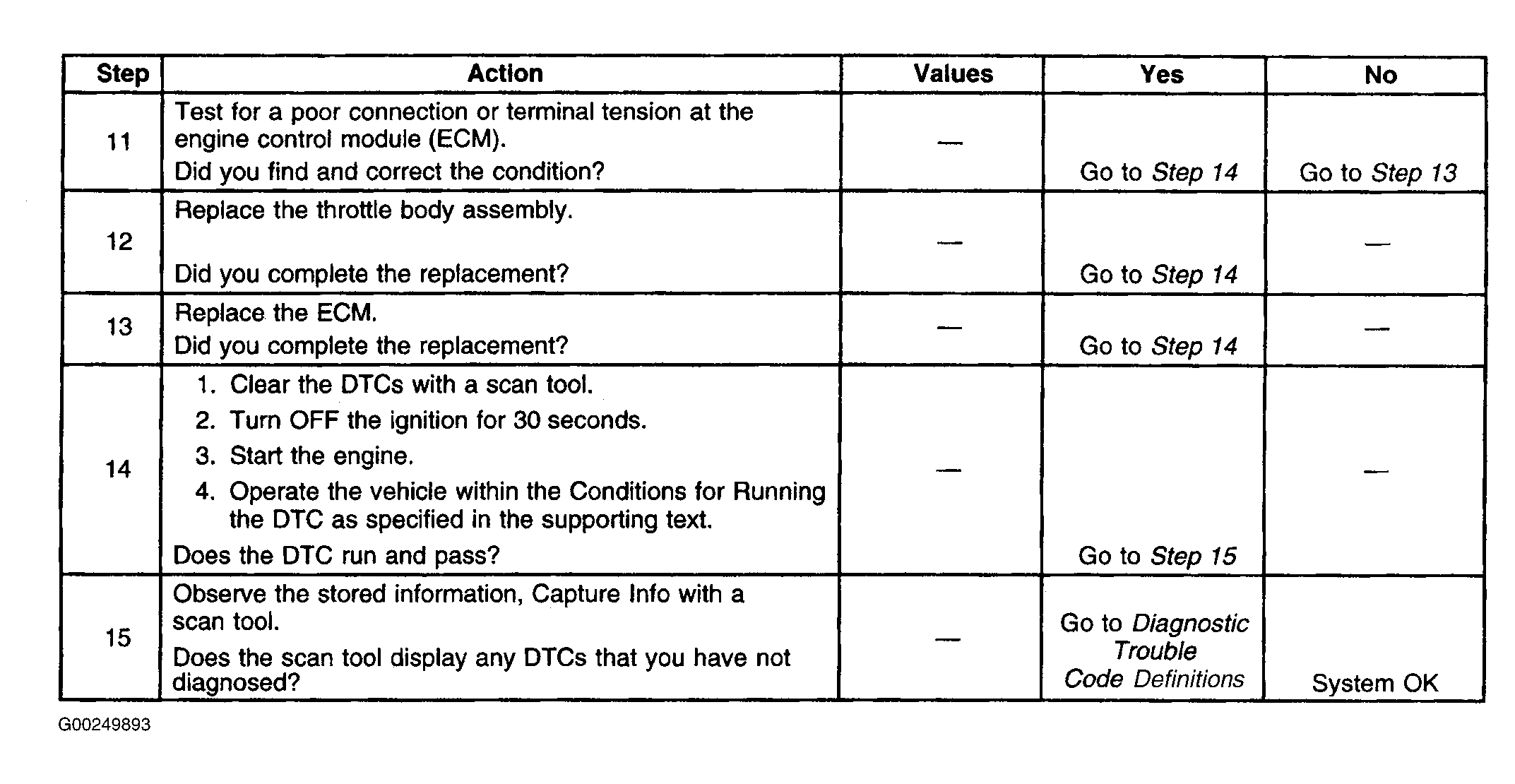

Fig 2: DTC P1551: Incorrect At Rest Throttle Position (Steps 11-15)
G00249893Courtesy of GENERAL MOTORS CORP.
