Diagnostic Procedure

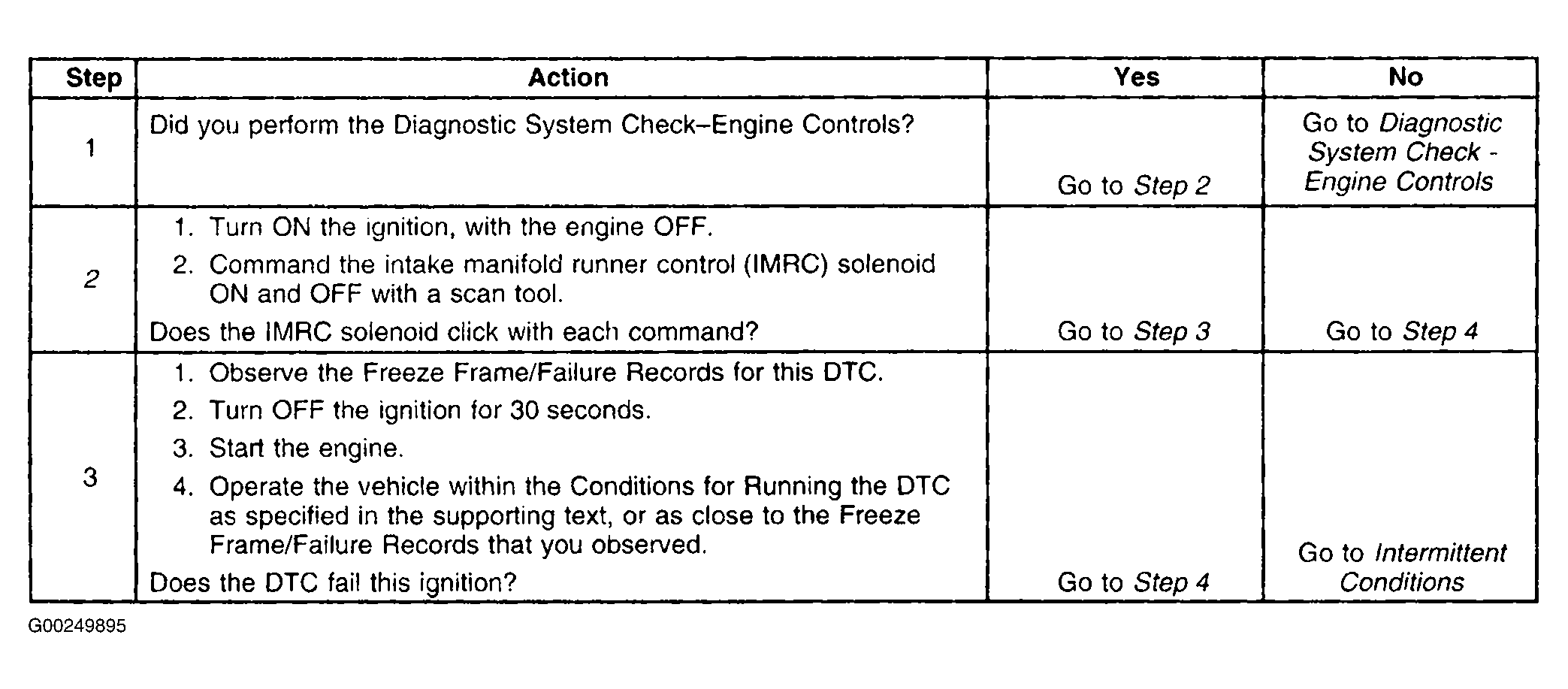

Fig 1: DTC P2008: Intake Manifold Runner Control - Control Circuit Low (Steps 1-3)
G00249895Courtesy of GENERAL MOTORS CORP.

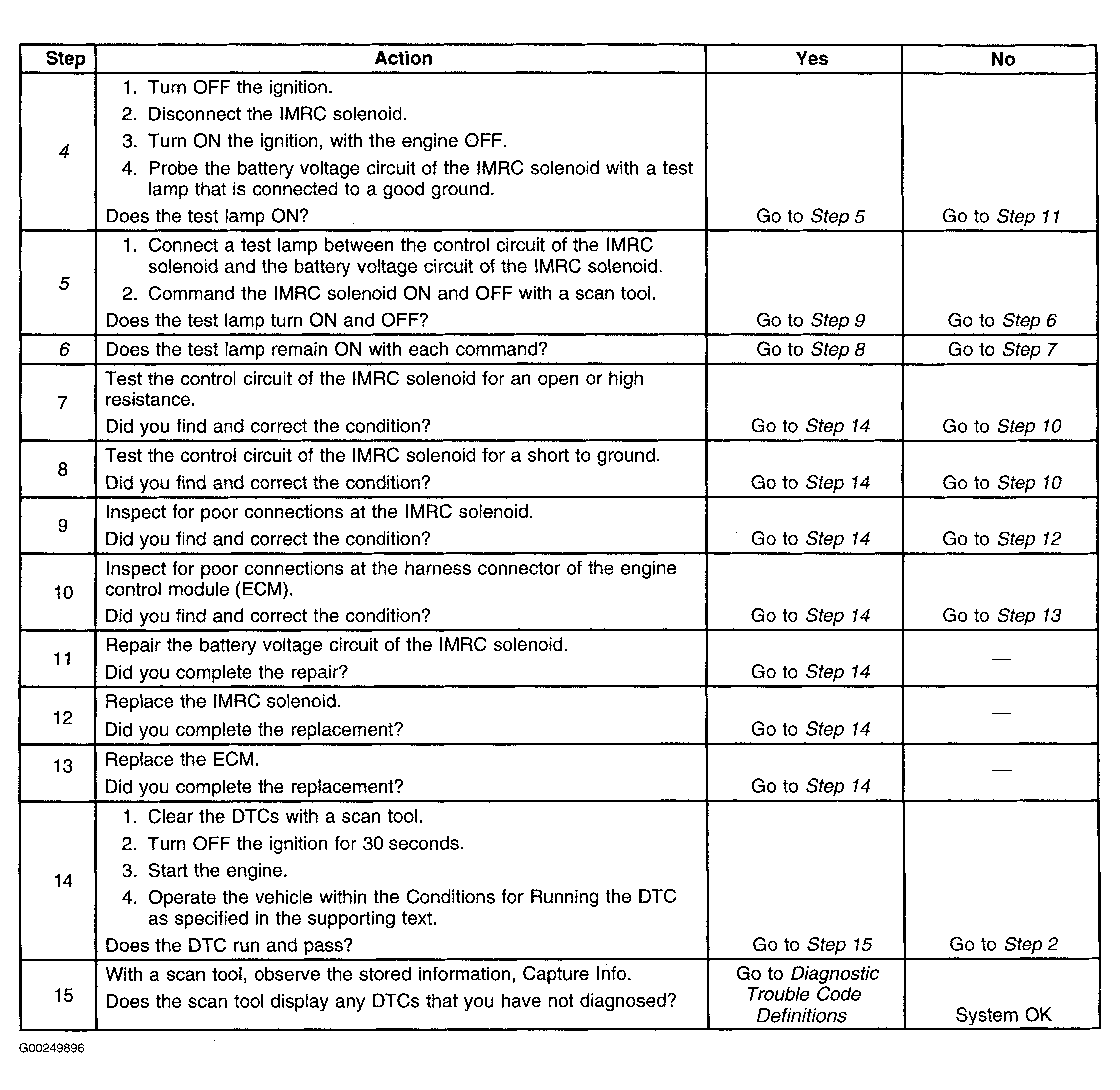

Fig 2: DTC P2008: Intake Manifold Runner Control - Control Circuit Low (Steps 4-15)
G00249896Courtesy of GENERAL MOTORS CORP.
