Diagnostic Procedure

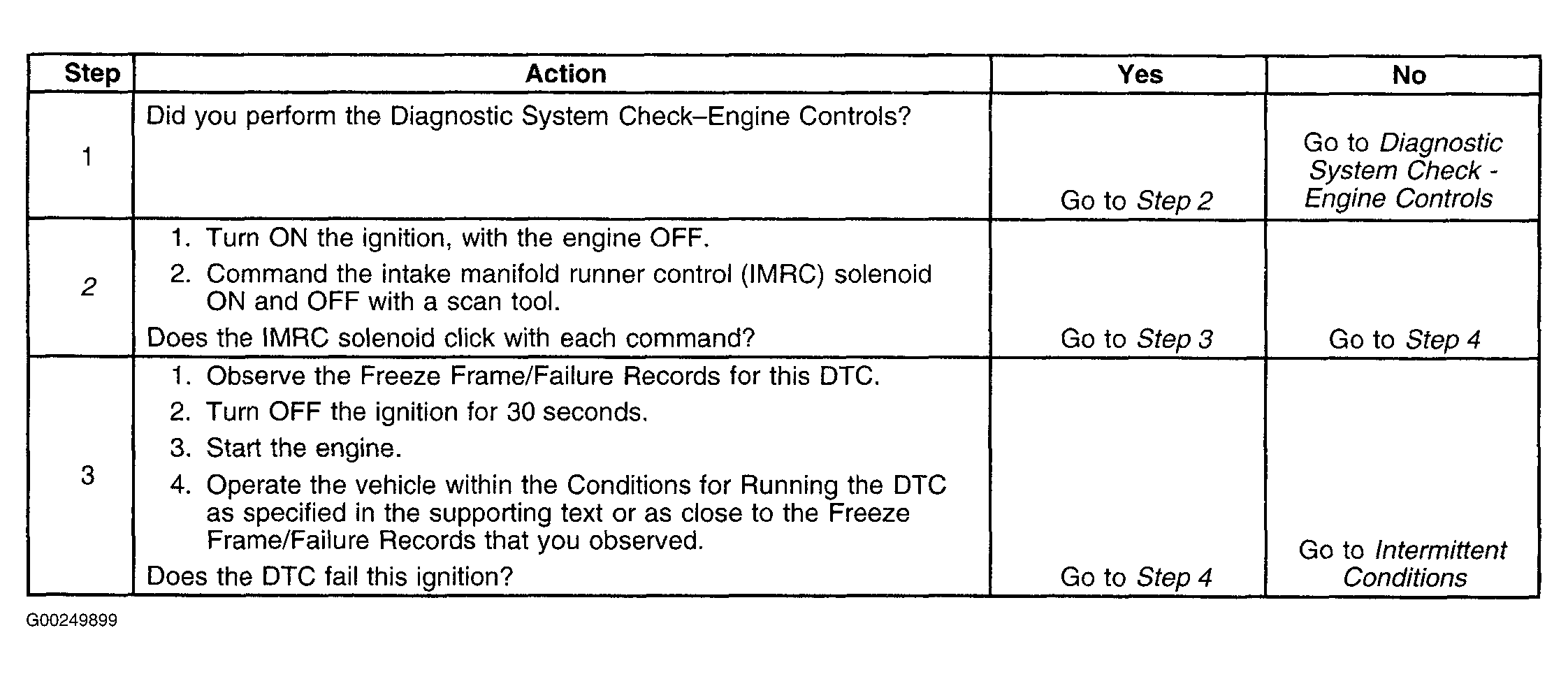

Fig 1: DTC P2009: Intake Manifold Runner Control - Control Circuit High (Steps 1-3)
G00249899Courtesy of GENERAL MOTORS CORP.

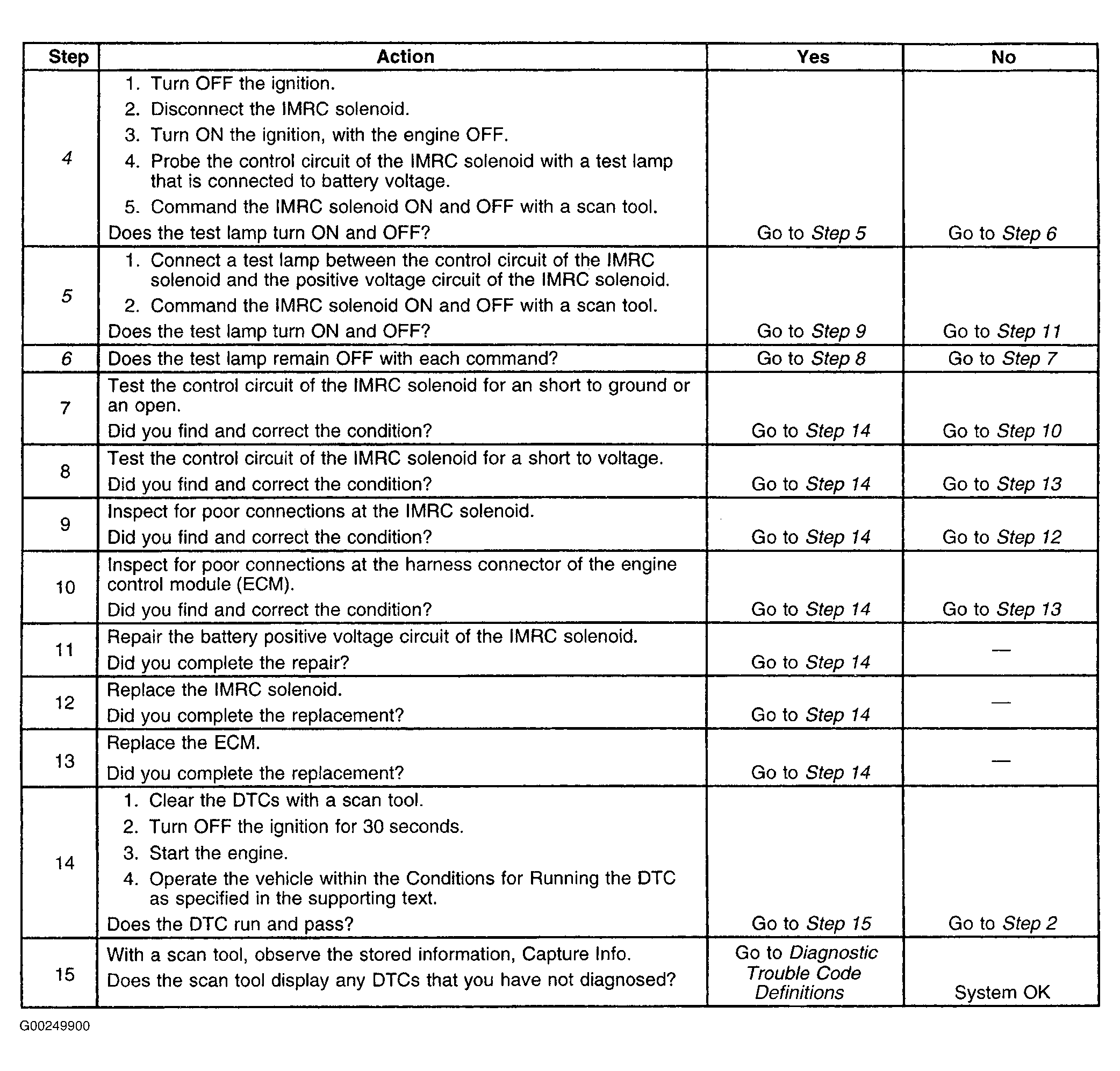

Fig 2: DTC P2009: Intake Manifold Runner Control - Control Circuit High (Steps 4-15)
G00249900Courtesy of GENERAL MOTORS CORP.
