Diagnostic Procedure

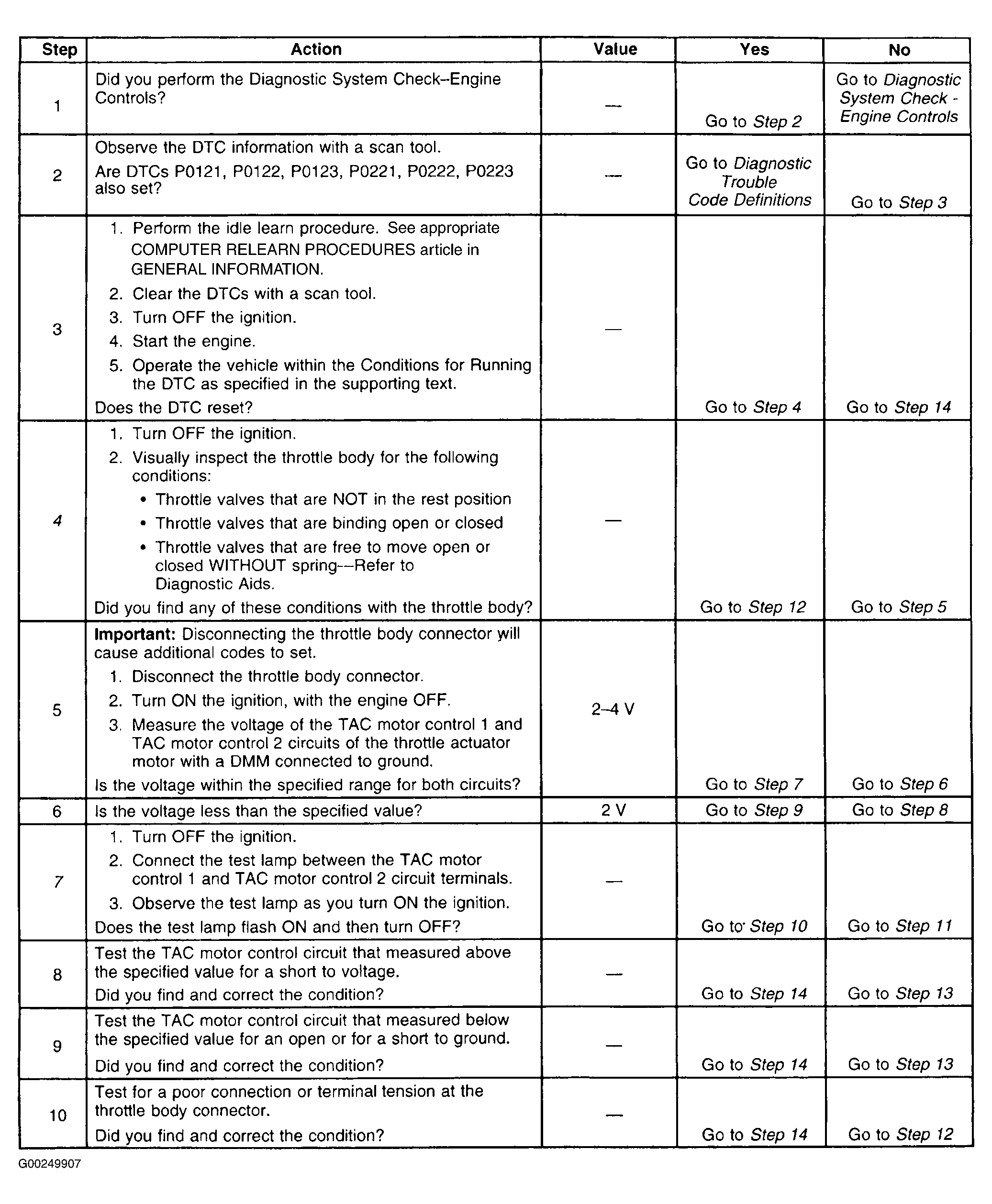

Fig 1: DTC P2101: Minimum Throttle Position Not Detected (Steps 1-10)
G00249907Courtesy of GENERAL MOTORS CORP.

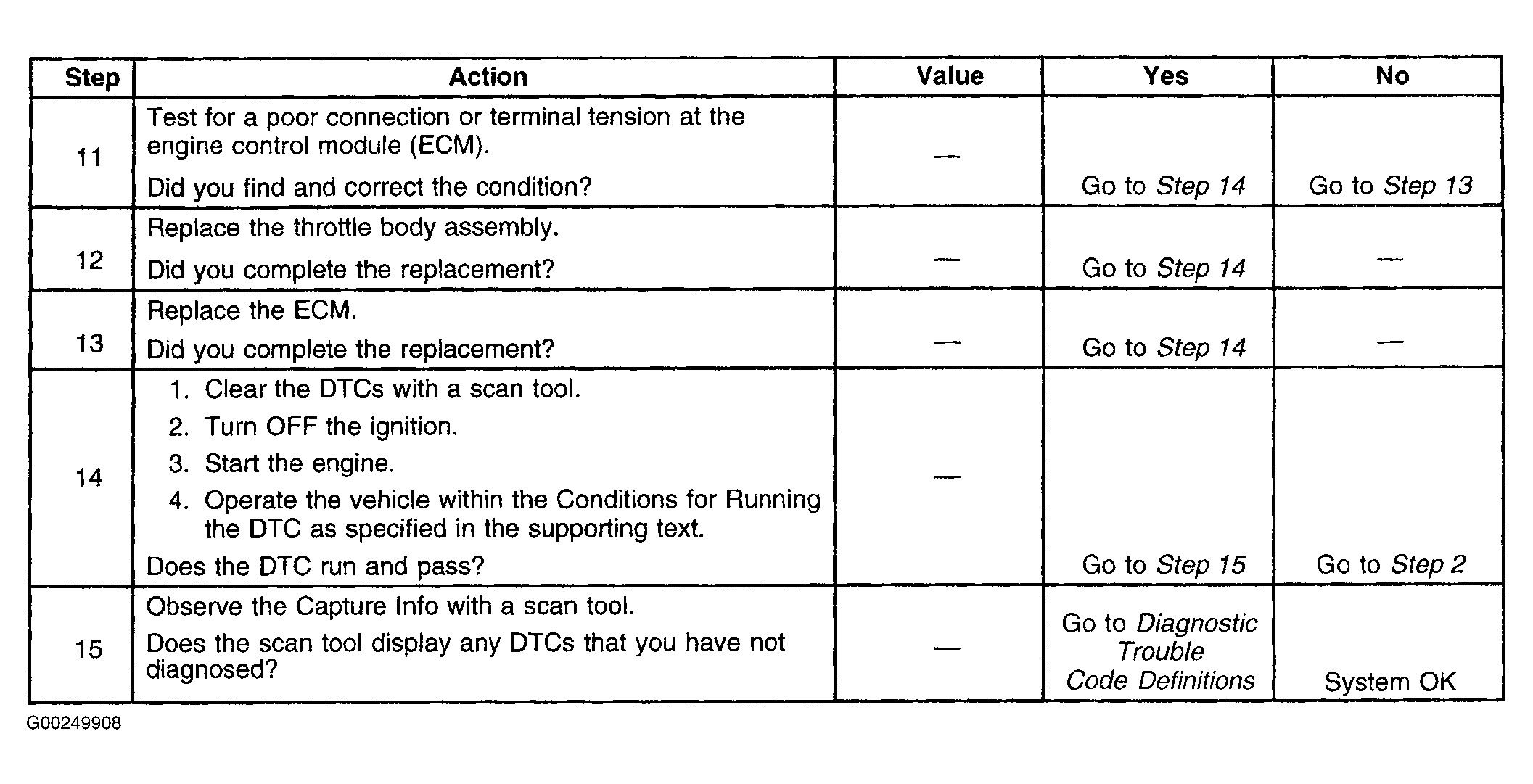

Fig 2: DTC P2101: Minimum Throttle Position Not Detected (Steps 11-15)
G00249908Courtesy of GENERAL MOTORS CORP.
