DTC P2105: Throttle Control System - Out Of Controllable Limit
›
Diagnostic Procedure
Diagnostic Procedure

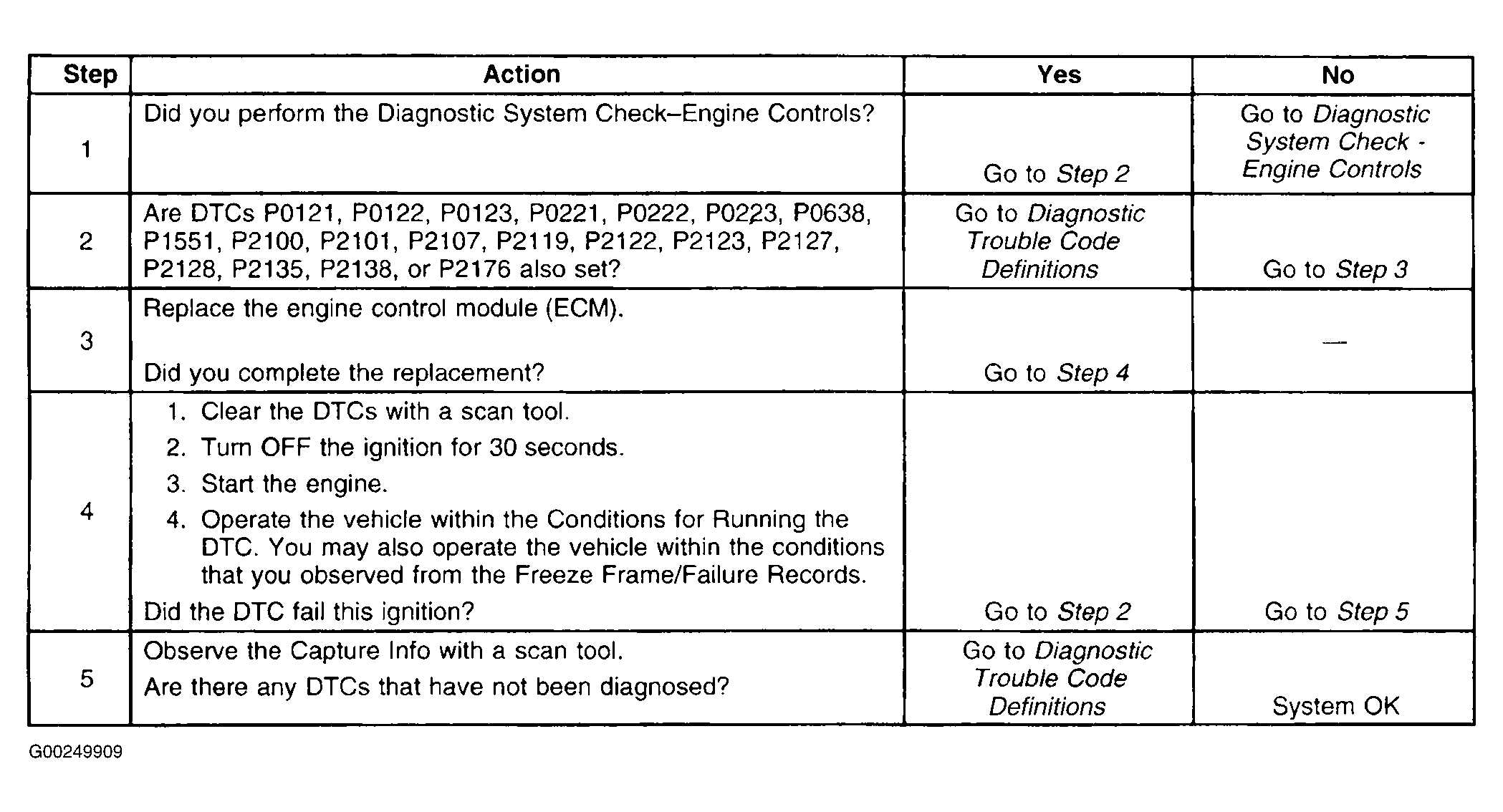

Fig 1: DTC P2105: Throttle Control System - Out Of Controllable Limit
Courtesy of GENERAL MOTORS CORP.
