Diagnostic Procedure

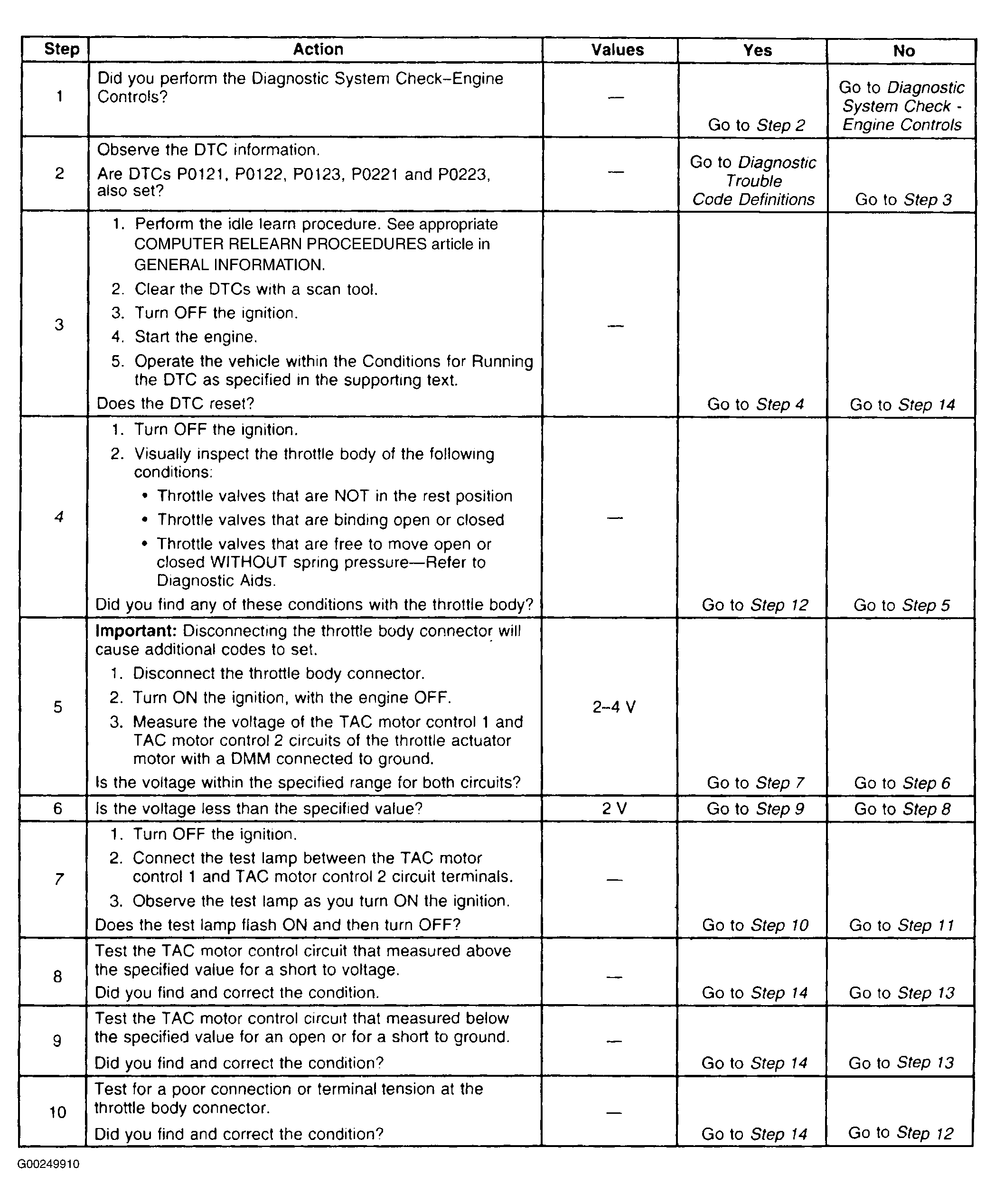

Fig 1: DTC P2107: Throttle Control System - Not Operating In Desired Range (Steps 1-10)
G00249910Courtesy of GENERAL MOTORS CORP.

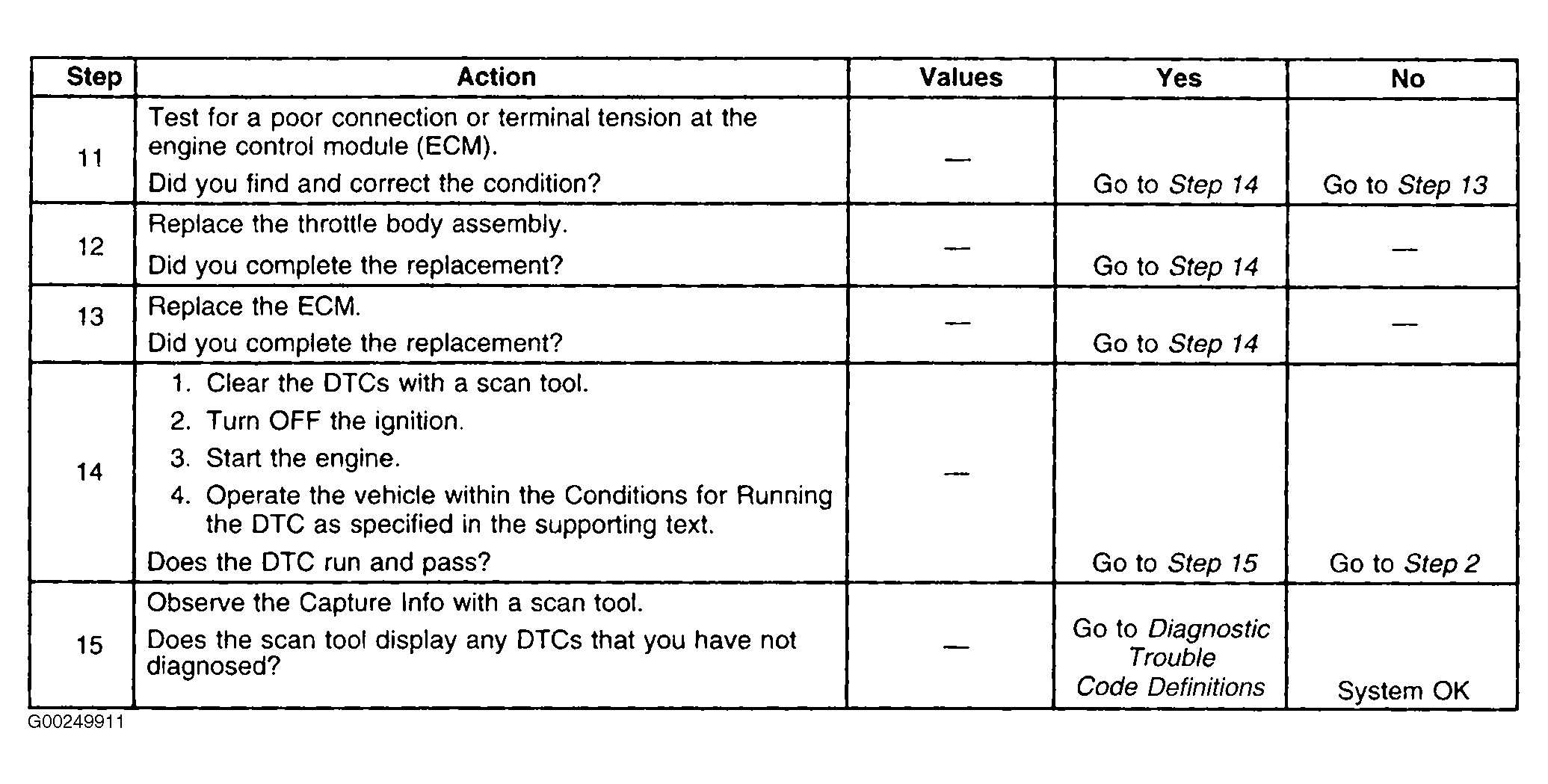

Fig 2: DTC P2107: Throttle Control System - Not Operating In Desired Range (Steps 11-15)
G00249911Courtesy of GENERAL MOTORS CORP.
