Diagnostic Procedure

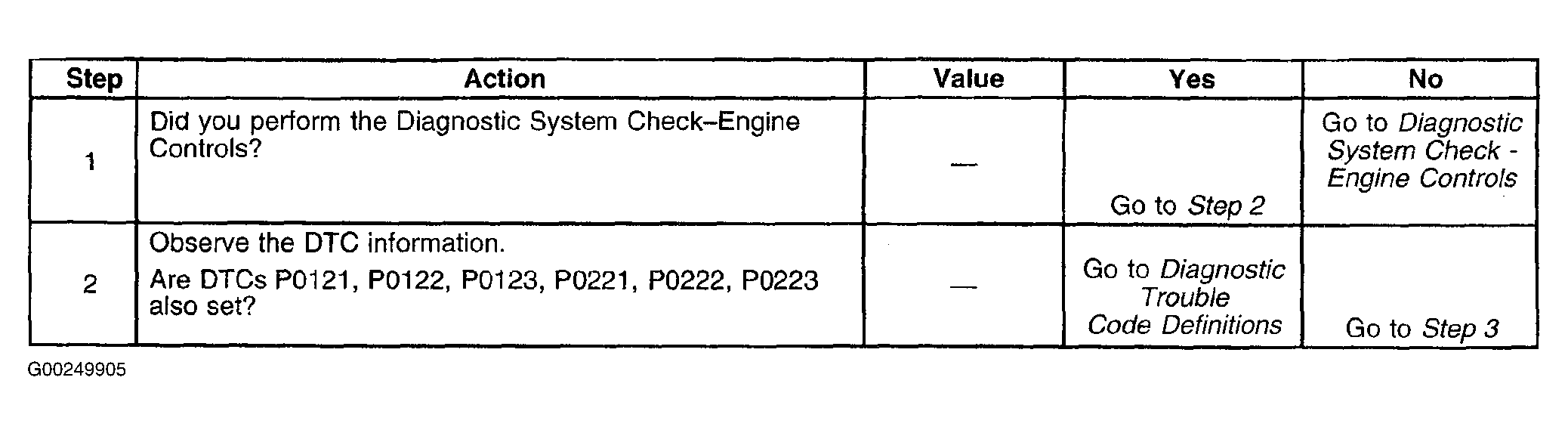

Fig 1: DTC P2100: Throttle Control System - Excessive Pulse Width Modulation Detected (Steps 1 & 2)
G00249905Courtesy of GENERAL MOTORS CORP.

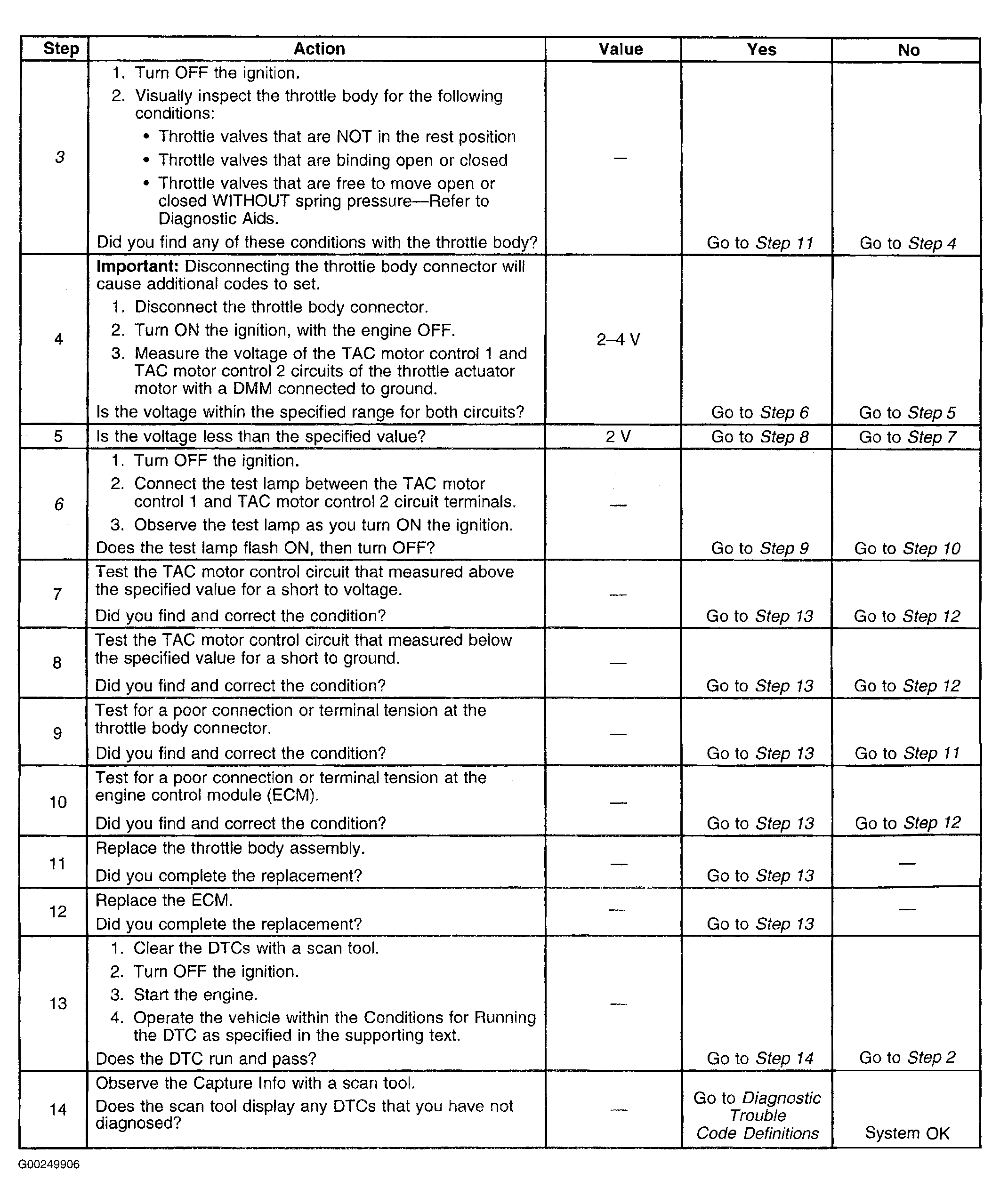

Fig 2: DTC P2100: Throttle Control System - Excessive Pulse Width Modulation Detected (Steps 3-14)
G00249906Courtesy of GENERAL MOTORS CORP.
