Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
Support the transmission with a safety stand.
Remove the brake combination valve to transmission support mounting bolt.

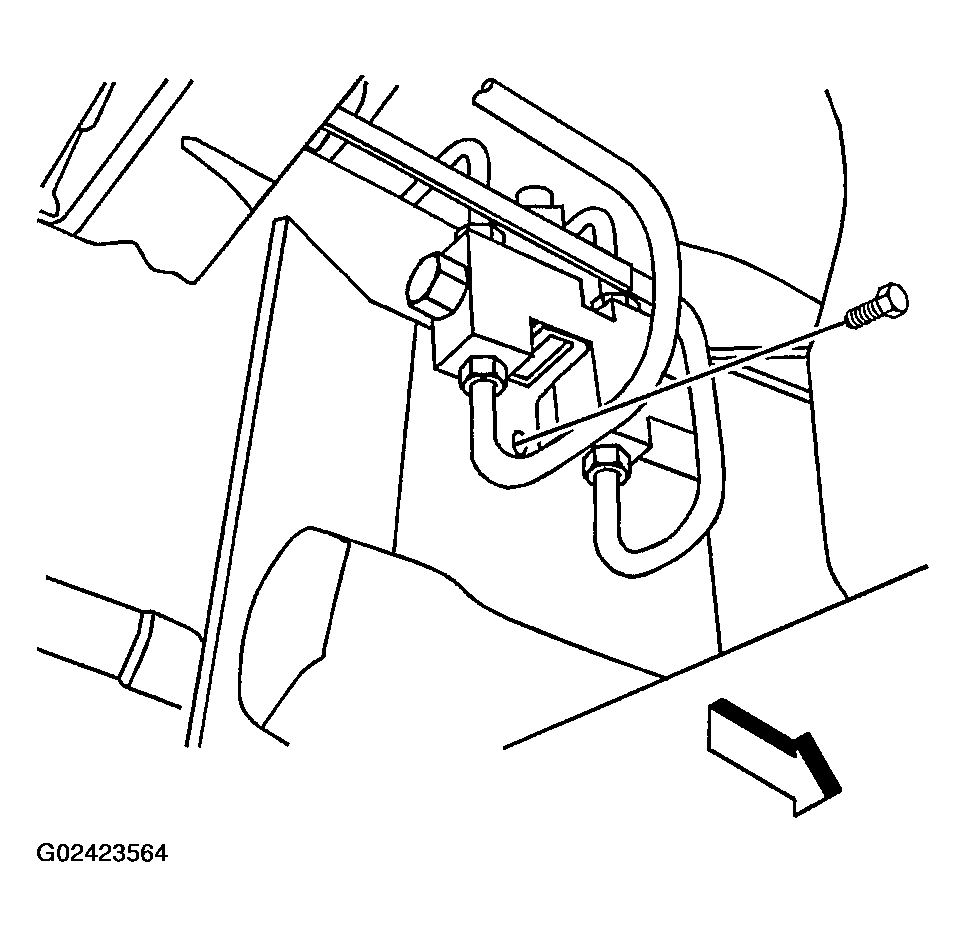

Fig 1: Removing Brake Combination Valve To Transmission Support Bolt
Courtesy of GENERAL MOTORS CORP.
Remove the fuel filter bracket to transmission support retaining bolts.

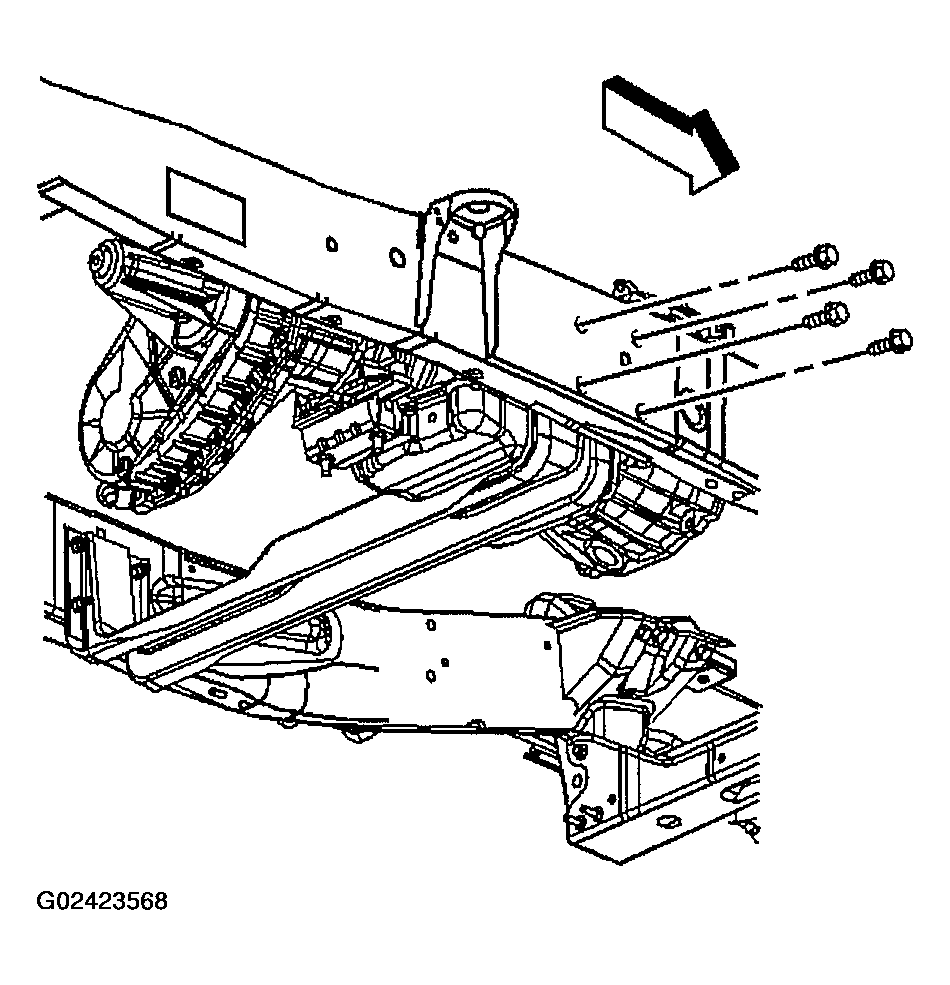

Fig 2: Removing Fuel Filter Bracket To Transmission Support Bolts
Courtesy of GENERAL MOTORS CORP.
Remove the transmission mount to the transmission support retaining nut, for RWD vehicles.

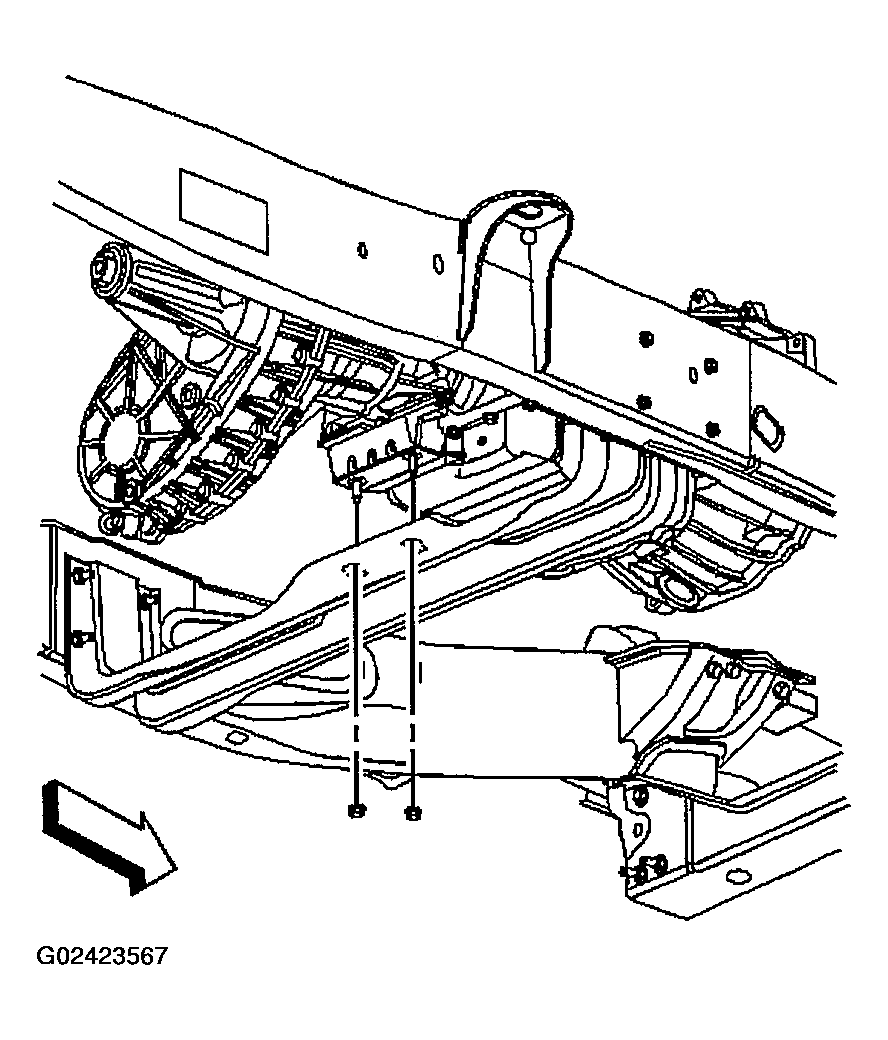

Fig 3: Removing Transmission Mount To Transmission Support Retaining Nut (RWD)
Courtesy of GENERAL MOTORS CORP.
Remove the transmission mount to the transmission support retaining nuts, for 4WD vehicles.

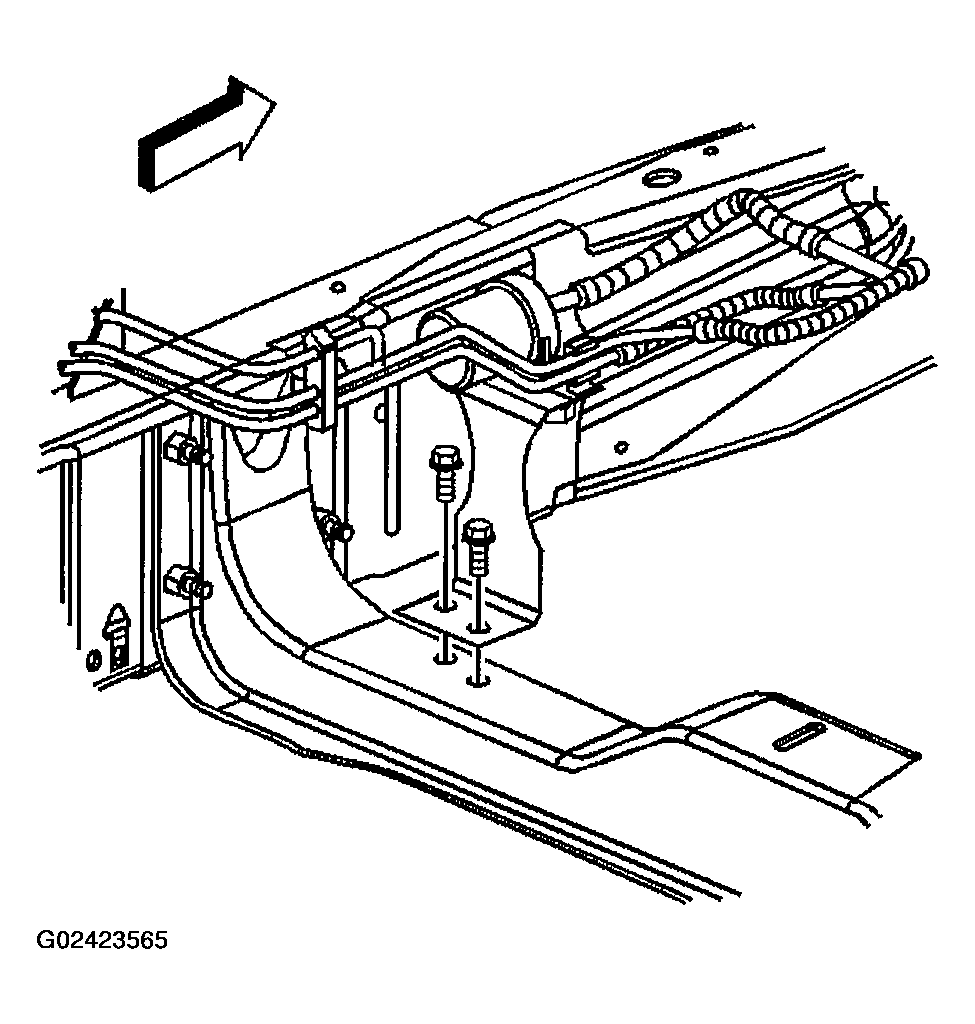

Fig 4: Removing Transmission Mount To Transmission Support Retaining Nuts (4WD)
Courtesy of GENERAL MOTORS CORP.
Remove the transmission support to the frame mounting bolts.
Remove the transmission support from the vehicle.

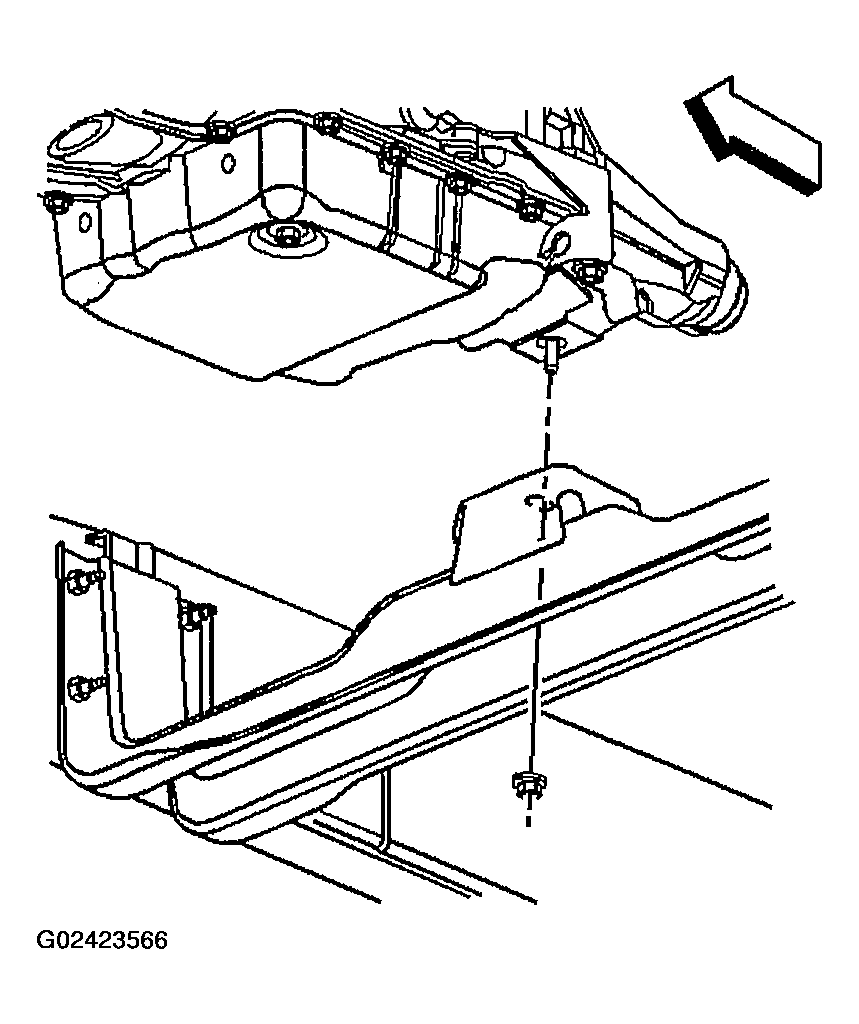

Fig 5: Removing Transmission Support To Frame Mounting Bolts
Courtesy of GENERAL MOTORS CORP.
