Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Install the hitch to the vehicle.
CAUTION: Refer to FASTENER NOTICE .
Install the hitch to frame mounting nuts and the bolts.
Tighten

Tighten the nuts to 88 N.m (65 lb ft).

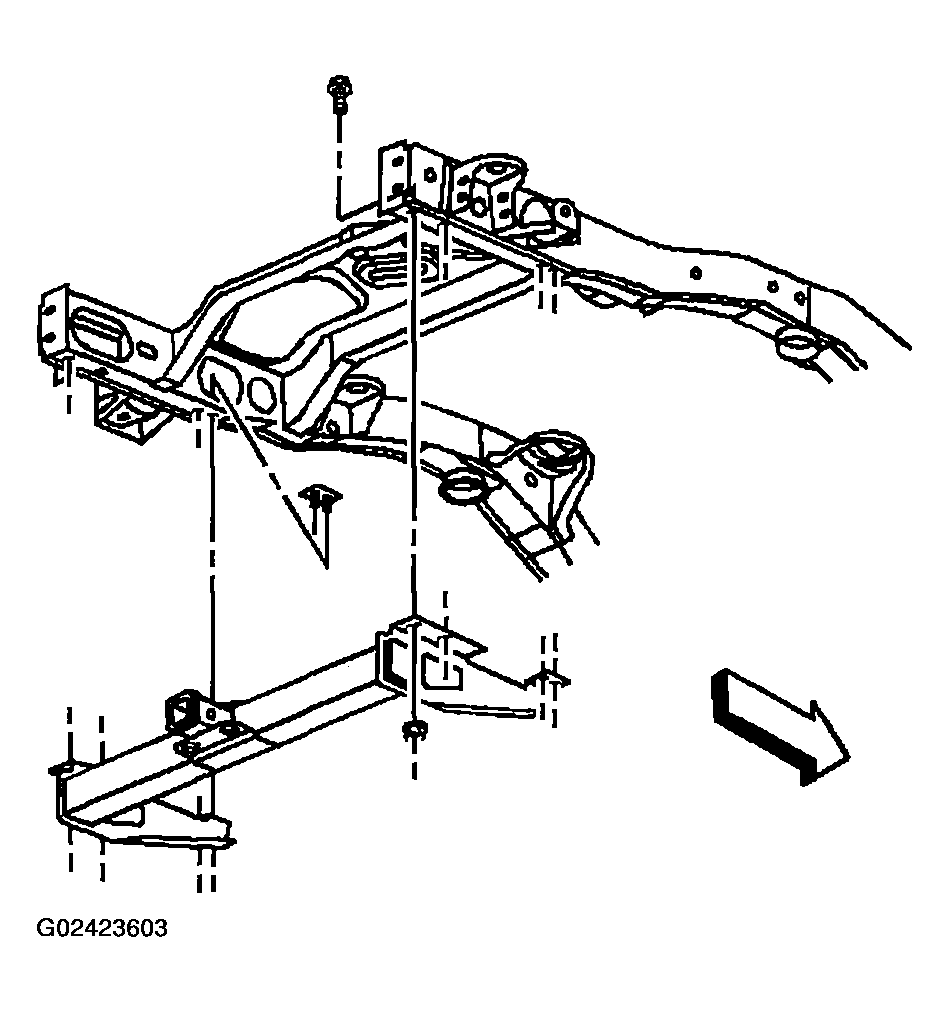

Fig 1: Installing Weight Distribution Hitch
Courtesy of GENERAL MOTORS CORP.
