Blower Motor Control Processor Connector End View
Blower Motor Control Processor Connector End View

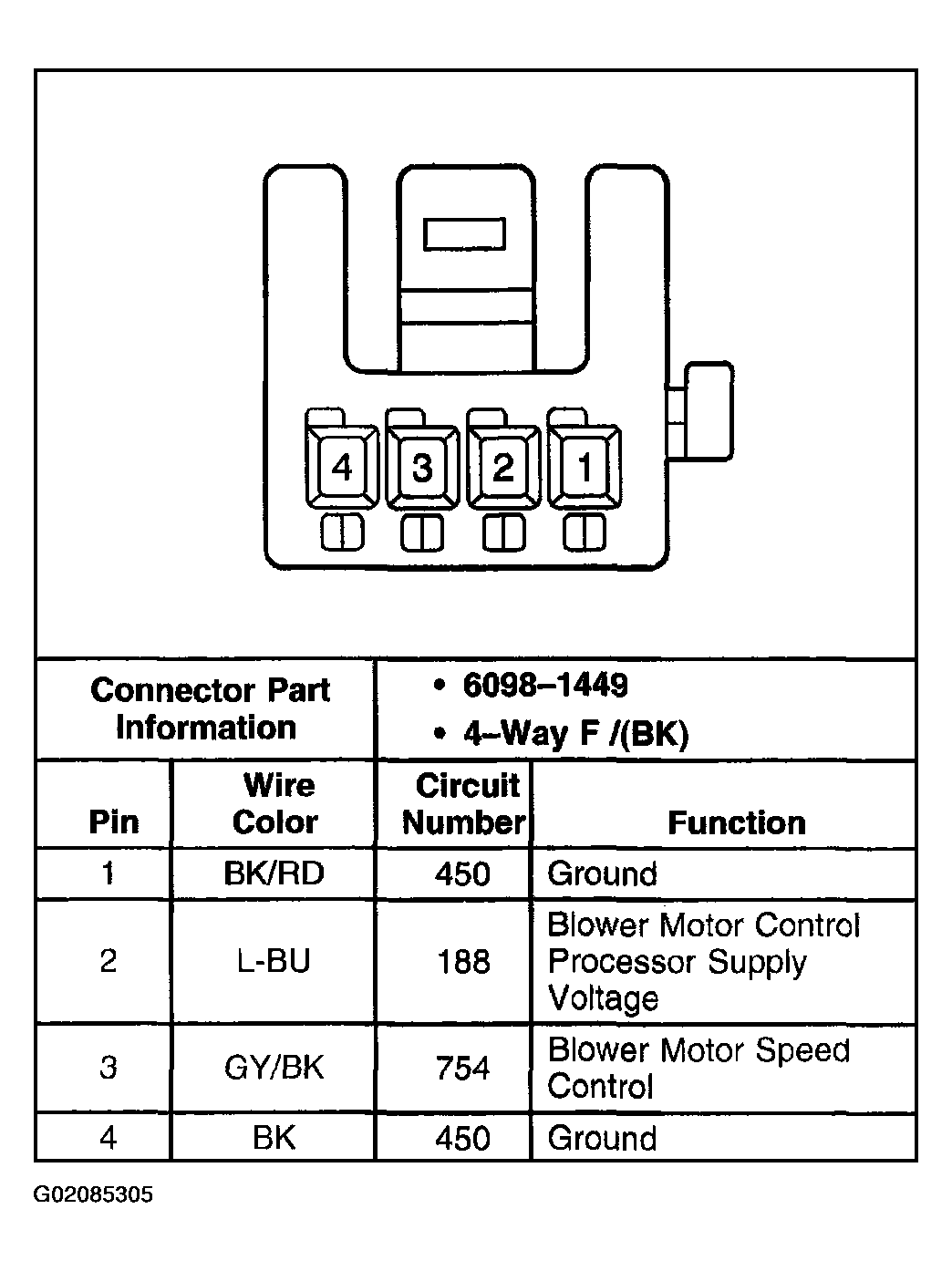

Fig 1: Blower Motor Control Processor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
