HVAC Control Module Connector End View (1 Of 2)

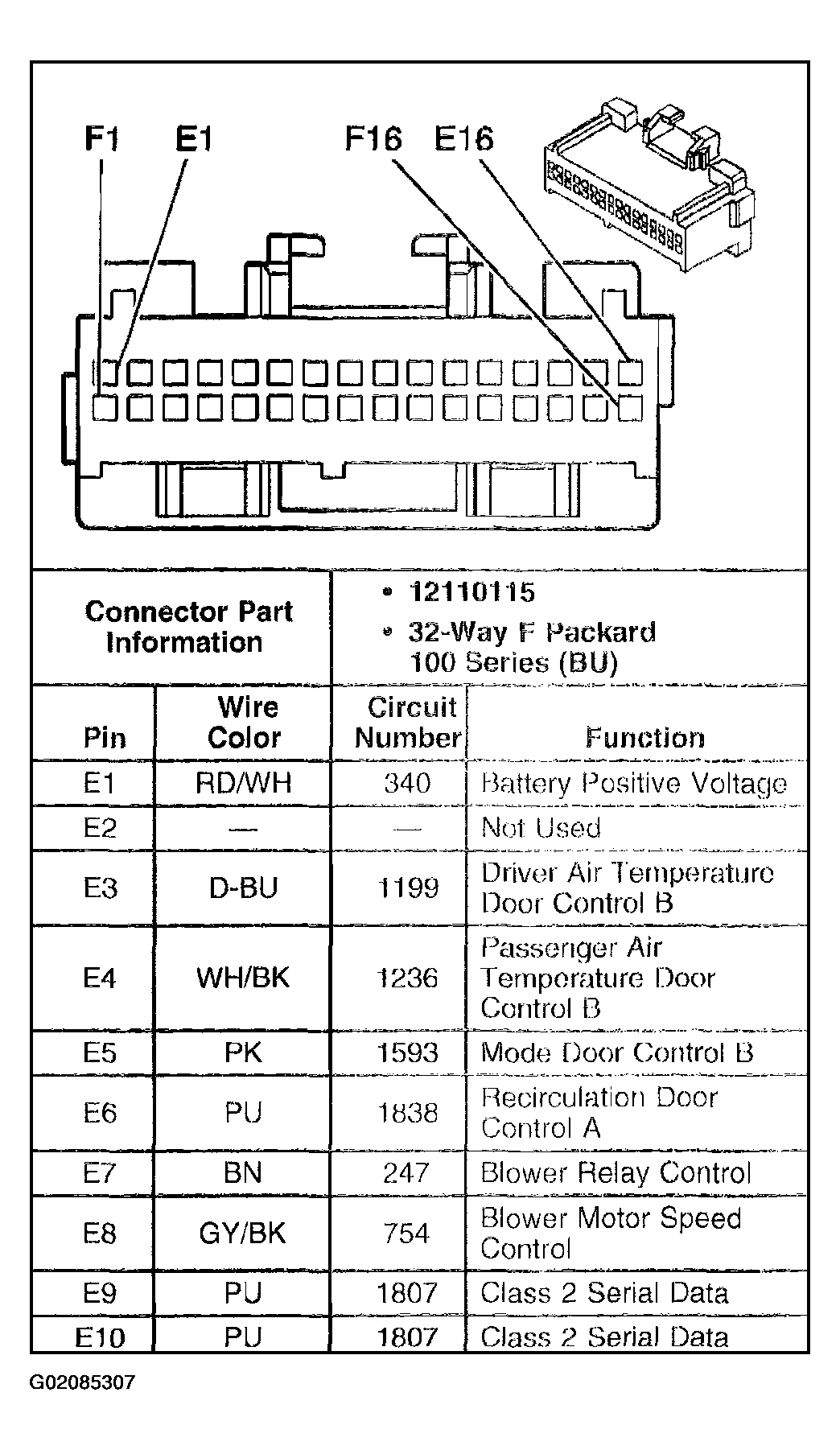

Fig 1: HVAC Control Module (1 Of 2)
G02085307Courtesy of GENERAL MOTORS CORP.
