Intrusion Sensor Connector End View
Intrusion Sensor Connector End View

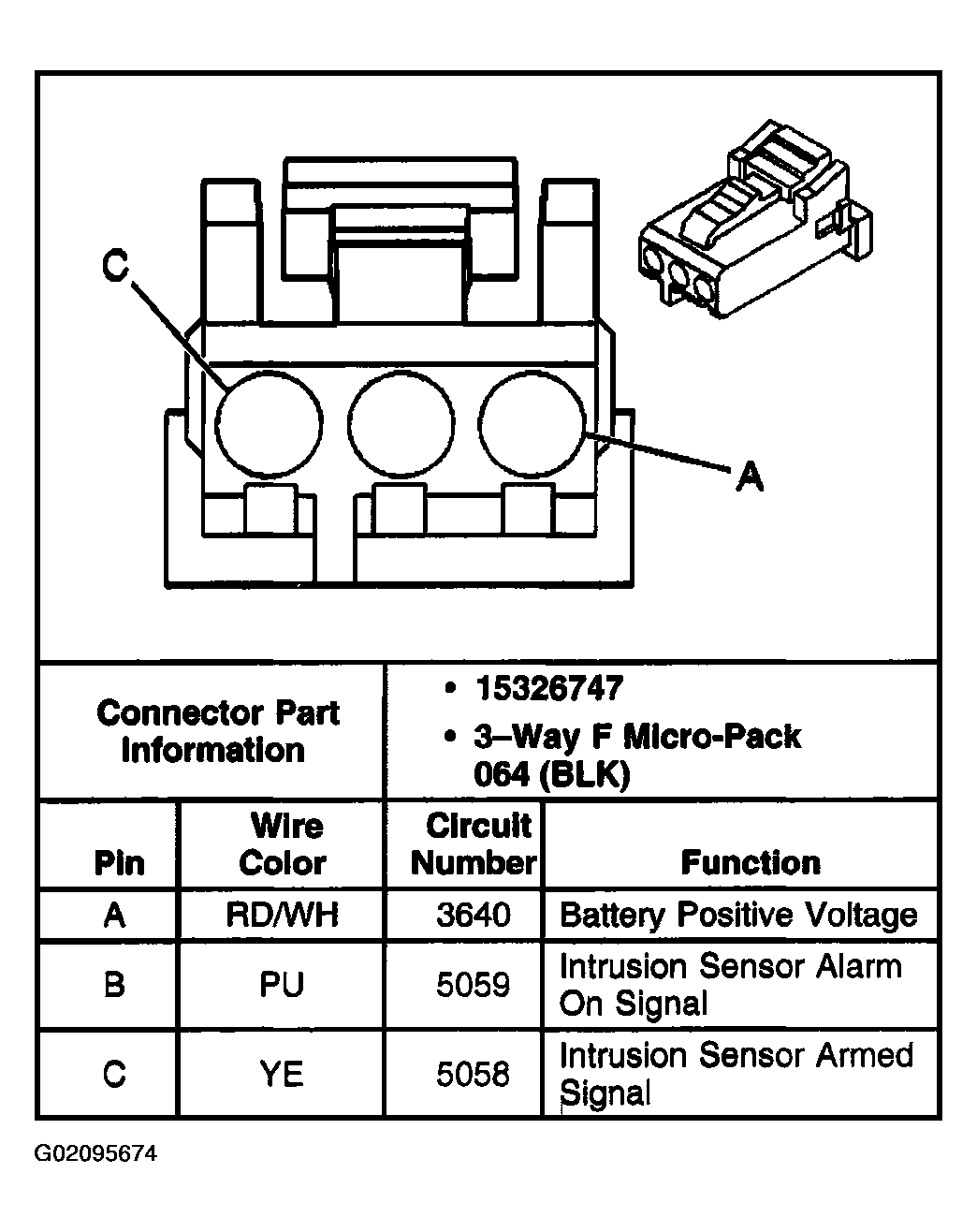

Fig 1: Intrusion Sensor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
