LH Heated Seat Module Connector End View
LH Heated Seat Module Connector End View

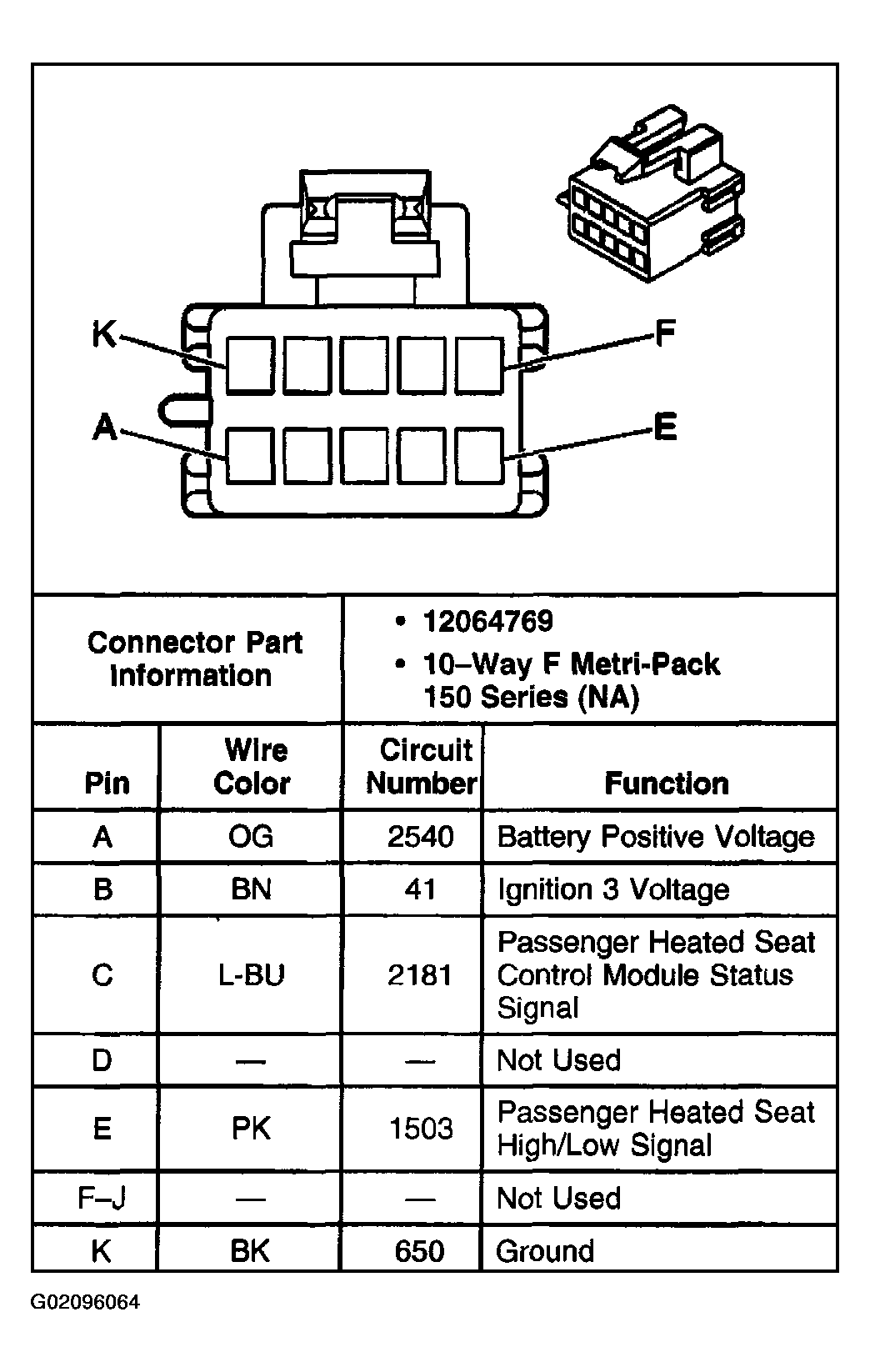

Fig 1: LH Heated Seat Module
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
