RH Heated Seat Module Connector End View
RH Heated Seat Module Connector End View

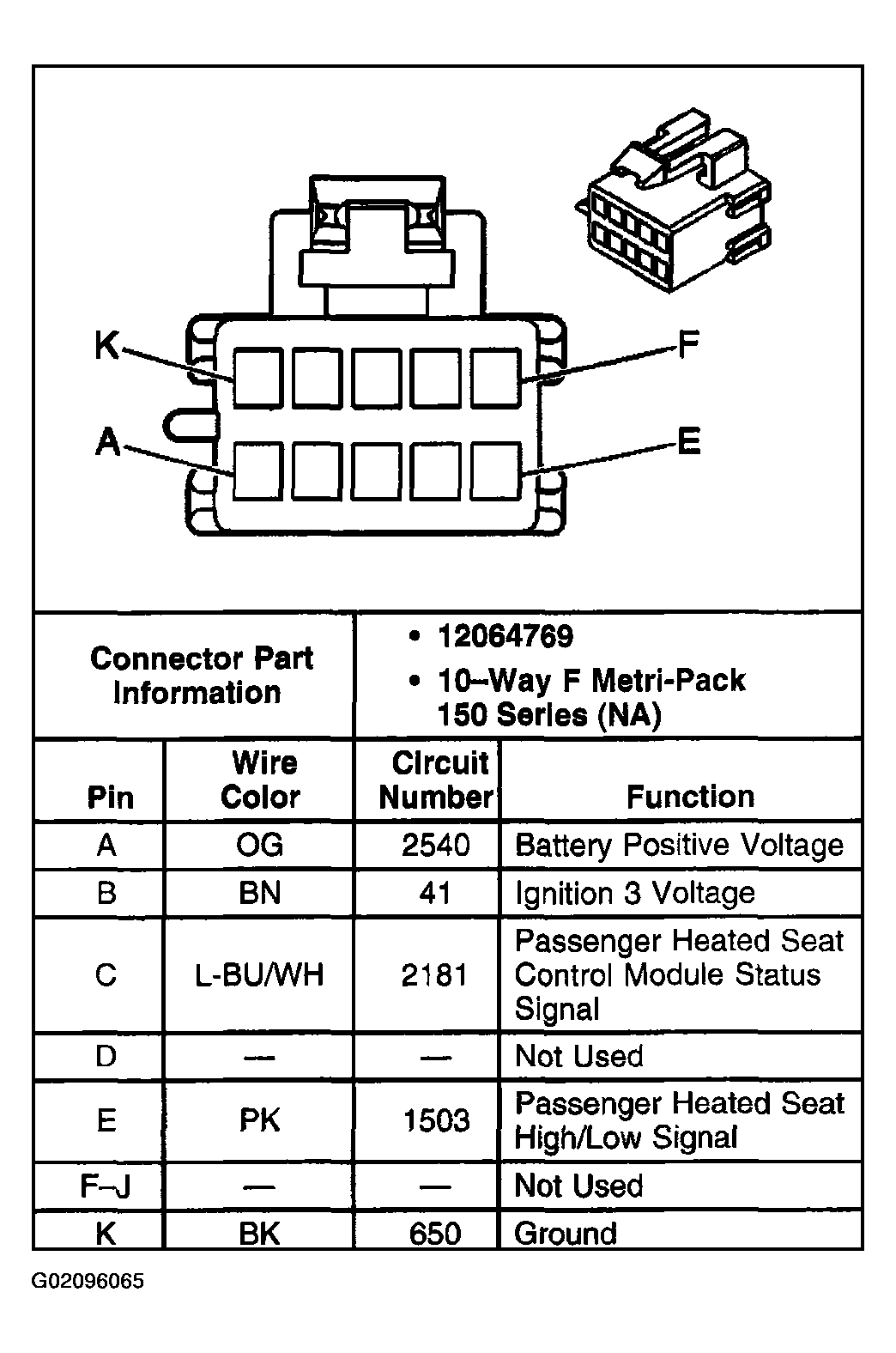

Fig 1: RH Heated Seat Module
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
