Sunload Sensor Assembly Connector End View
Sunload Sensor Assembly Connector End View

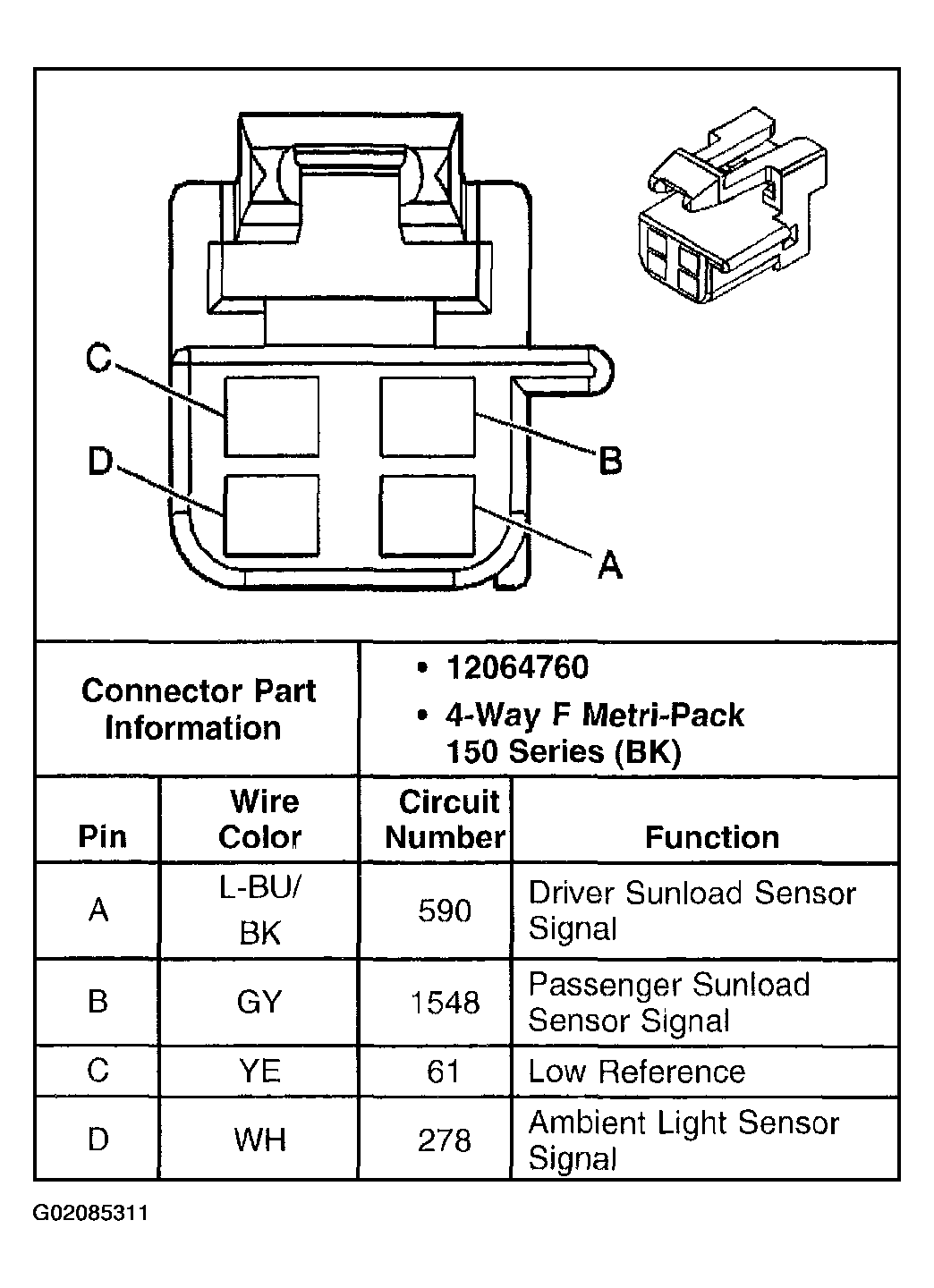

Fig 1: Sunload Sensor Assembly
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
