Sunroof Control Switch Connector End View
Sunroof Control Switch Connector End View

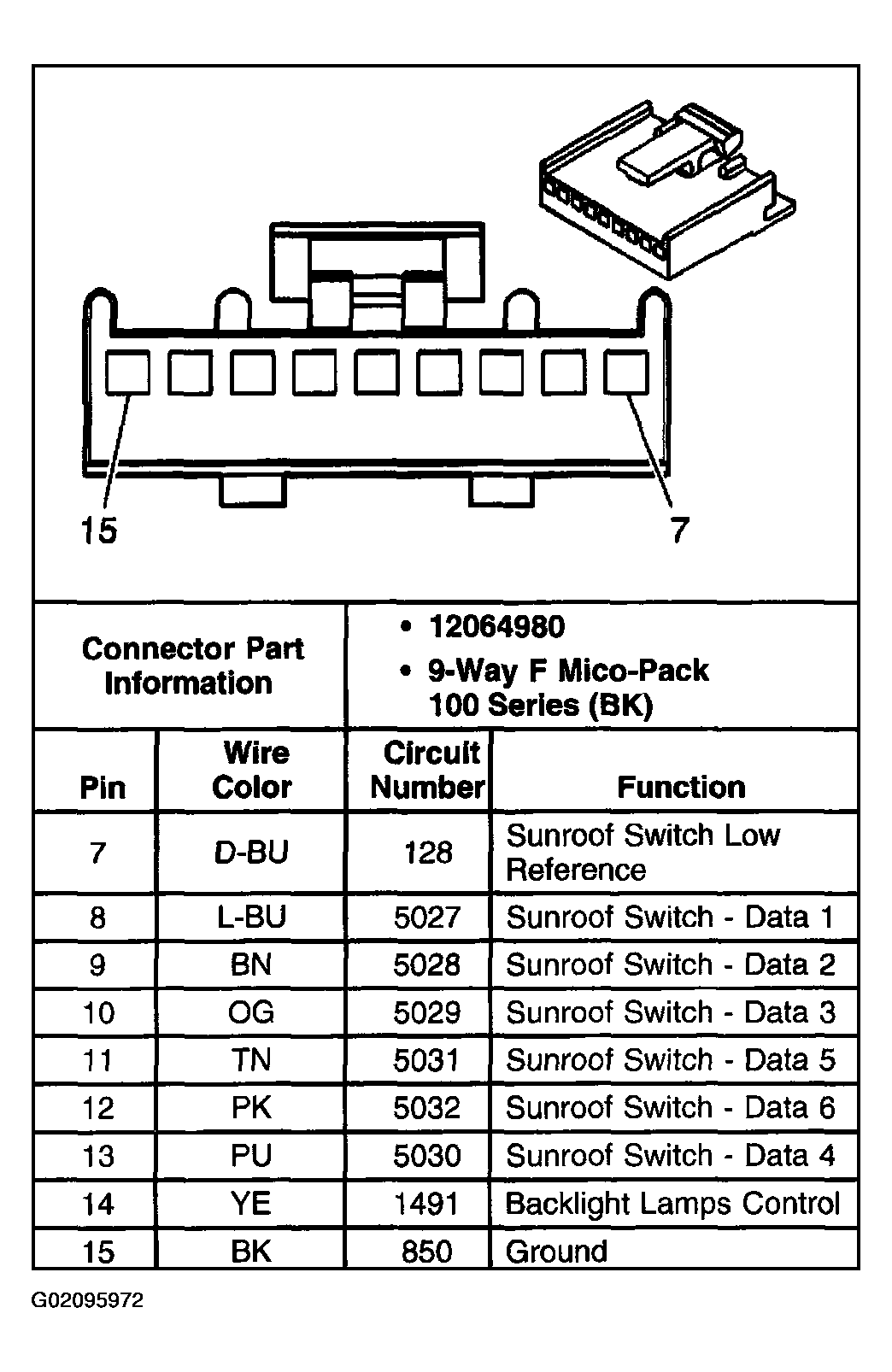

Fig 1: Sunroof Control Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
