Vehicle Speed Sensor (VSS) Connector End View
Vehicle Speed Sensor (VSS) Connector End View

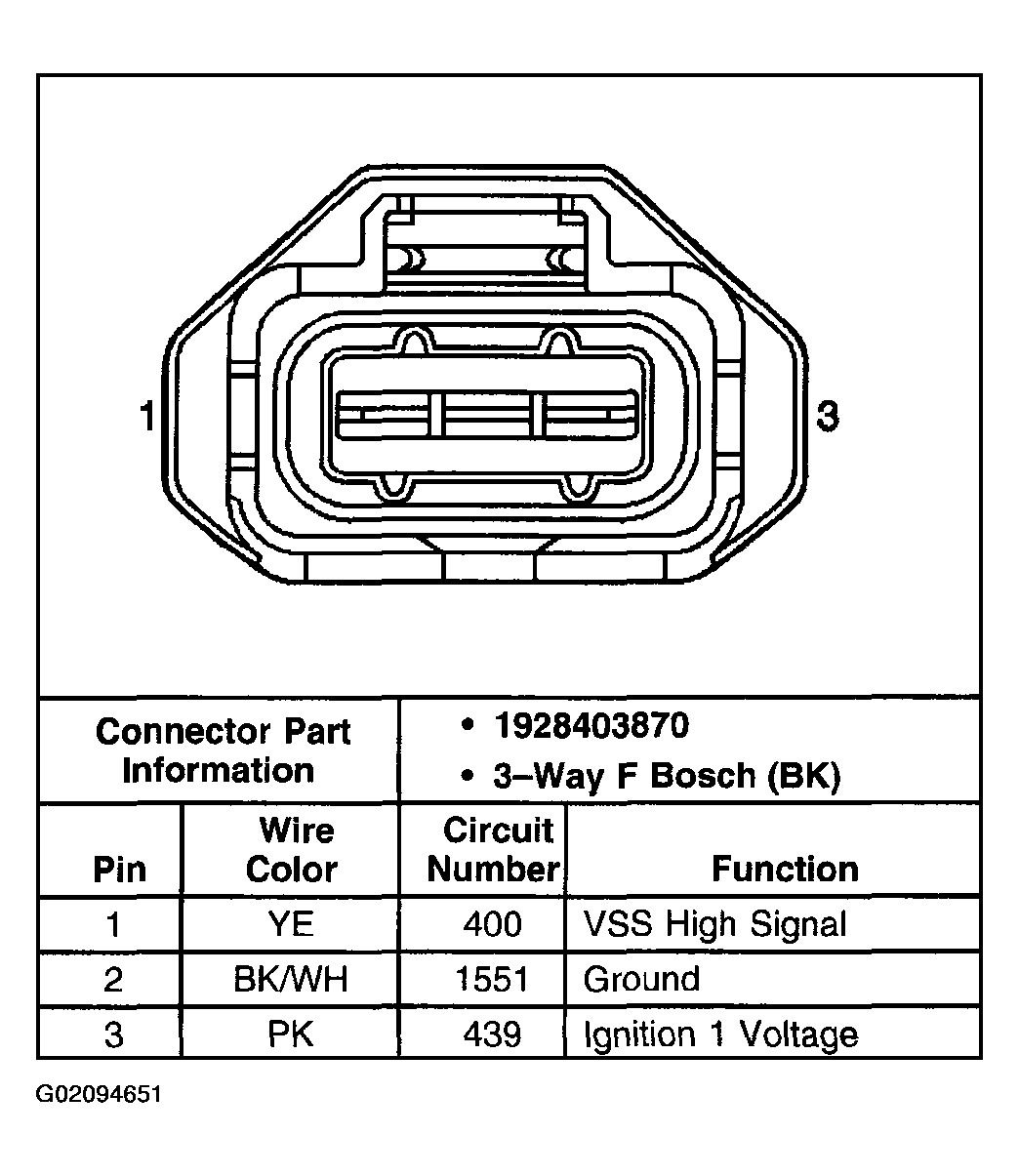

Fig 1: Vehicle Speed Sensor (VSS)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
