Windshield Wiper/Washer Switch Connector End View
Windshield Wiper/Washer Switch Connector End View

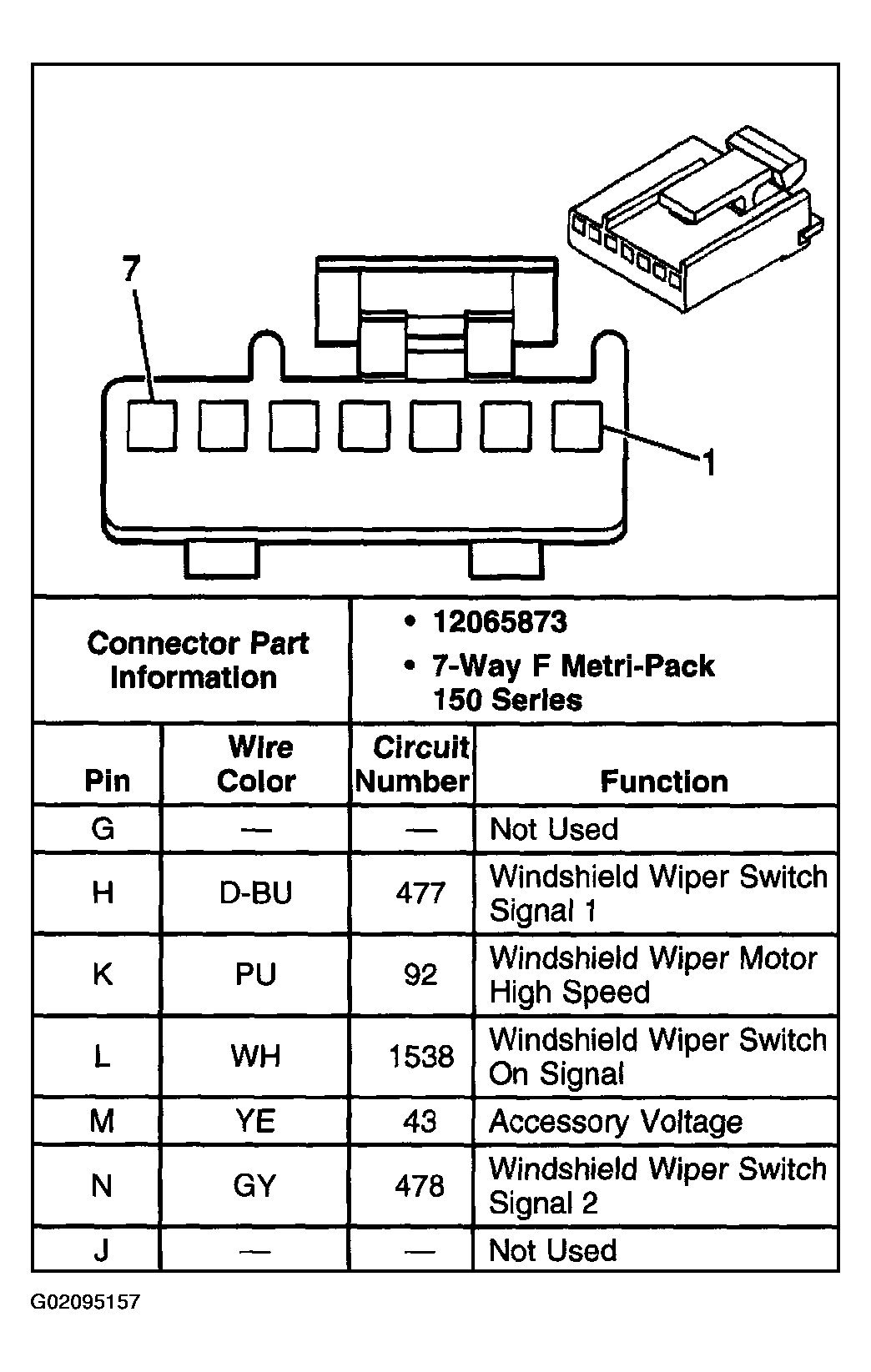

Fig 1: Windshield Wiper/Washer Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
