FixVault
Home
›
Cadillac
›
2003
›
CTS Automatic
›
Repair and Diagnosis
›
Restraints
›
Restraints Control Systems
›
Seat Belt System
›
Component Locator
›
Seat Belt Component Views
Seat Belt Component Views

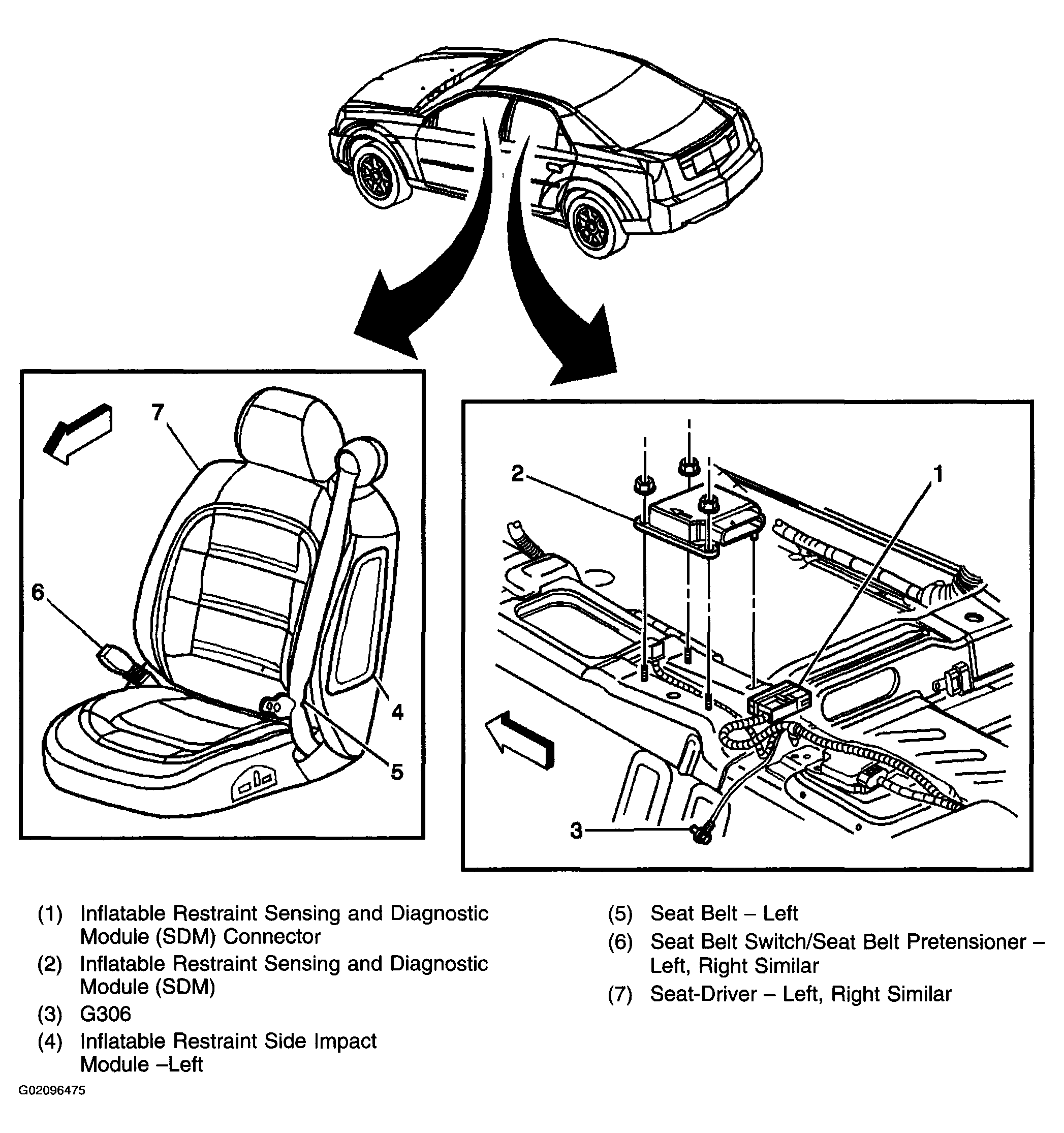

Fig 1: Component Location - Seat Belts Sub-System
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
