Steering Controls Component Views

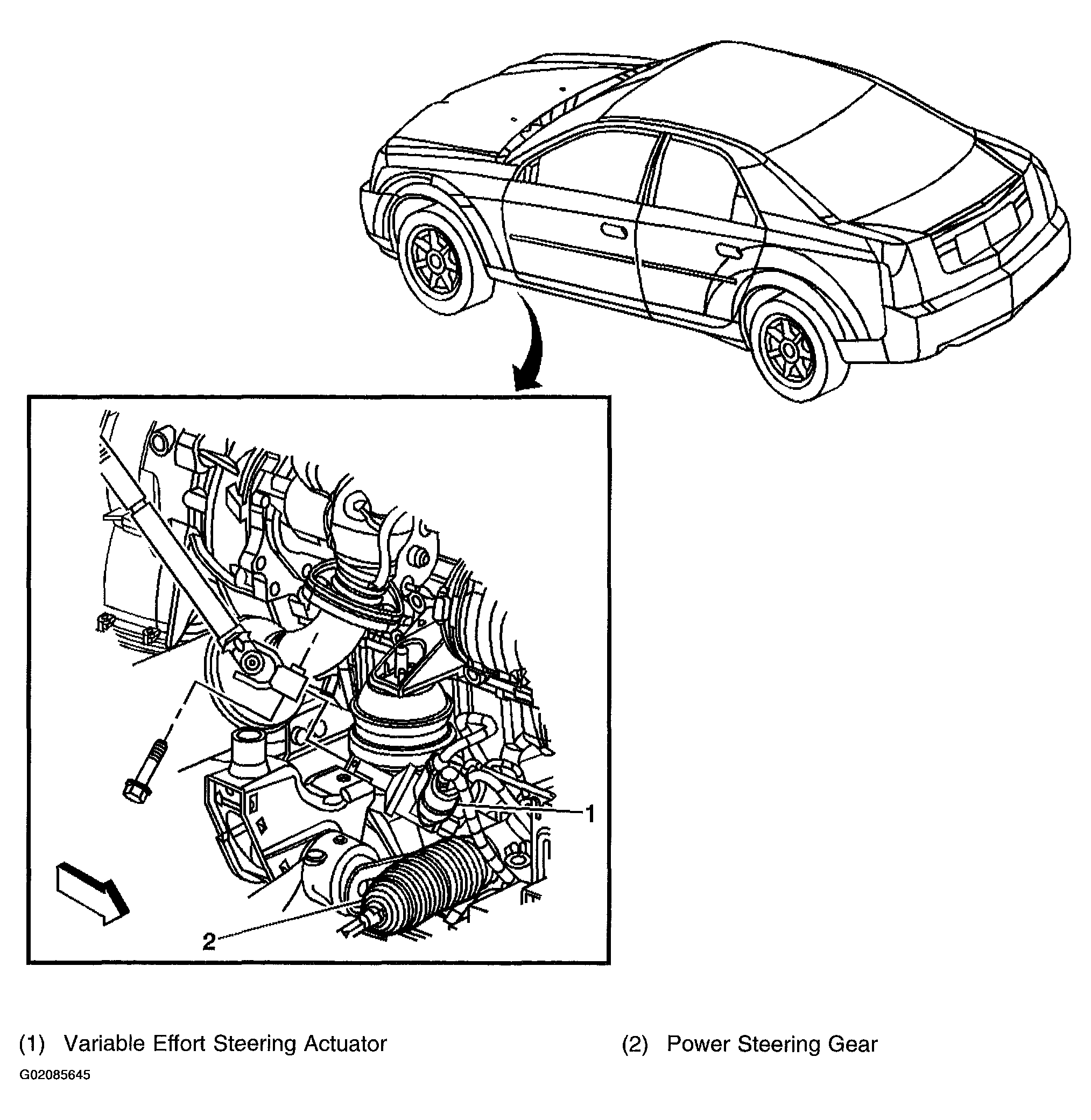

Fig 1: Locating Variable Effort Steering Sub-System Components
G02085645Courtesy of GENERAL MOTORS CORP.
