Variable Effort Steering System
›
Component Locator
›
Steering Controls Connector End Views
Steering Controls Connector End Views

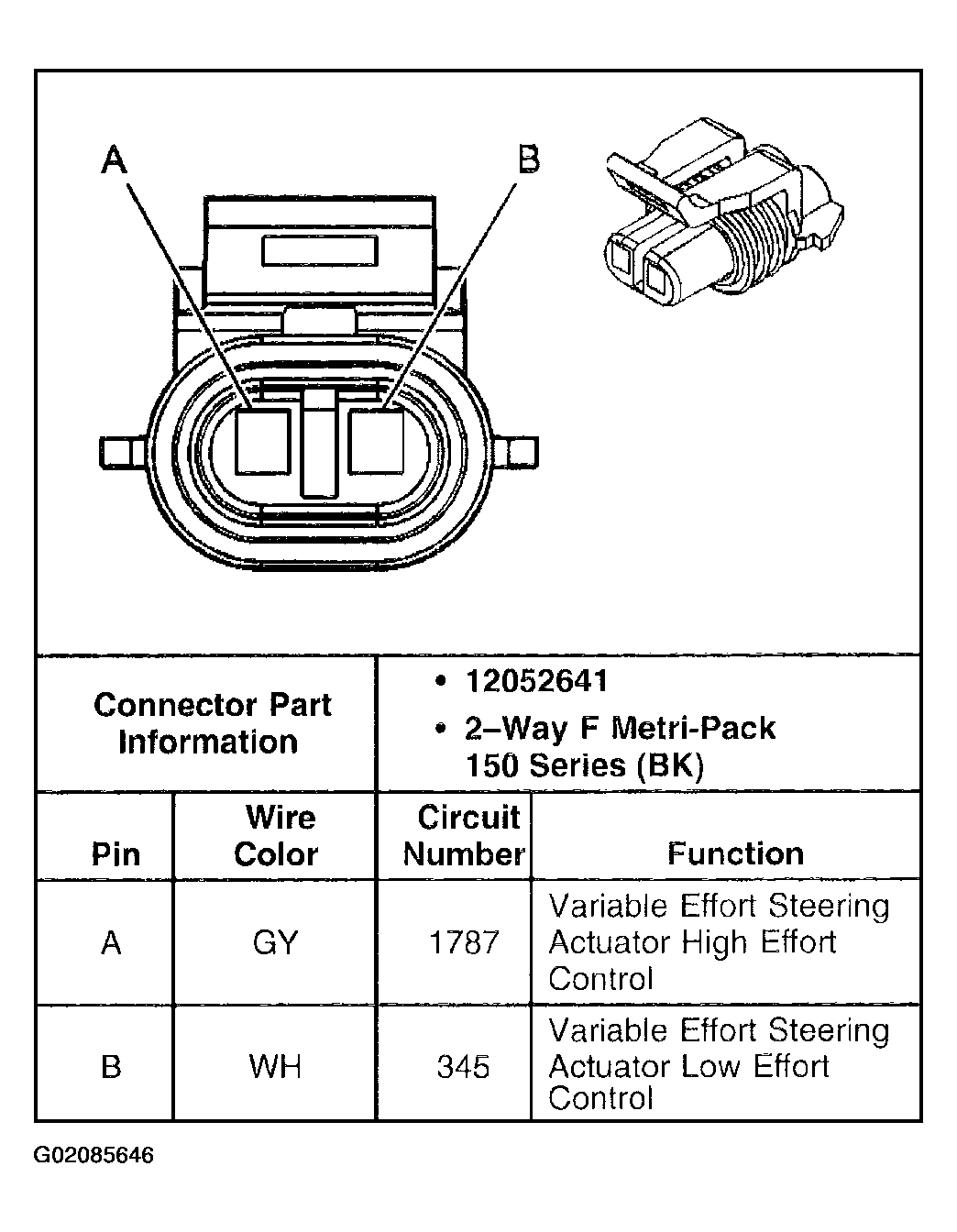

Fig 1: Identifying Variable Effort Steering Actuator Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
