Removal Procedure

  1. Place a drain pan under the vehicle.
  2. Remove the power steering pulley. Refer to POWER STEERING PULLEY REPLACEMENT .
  3. Disconnect the power steering reservoir outlet hose from the power steering pump.

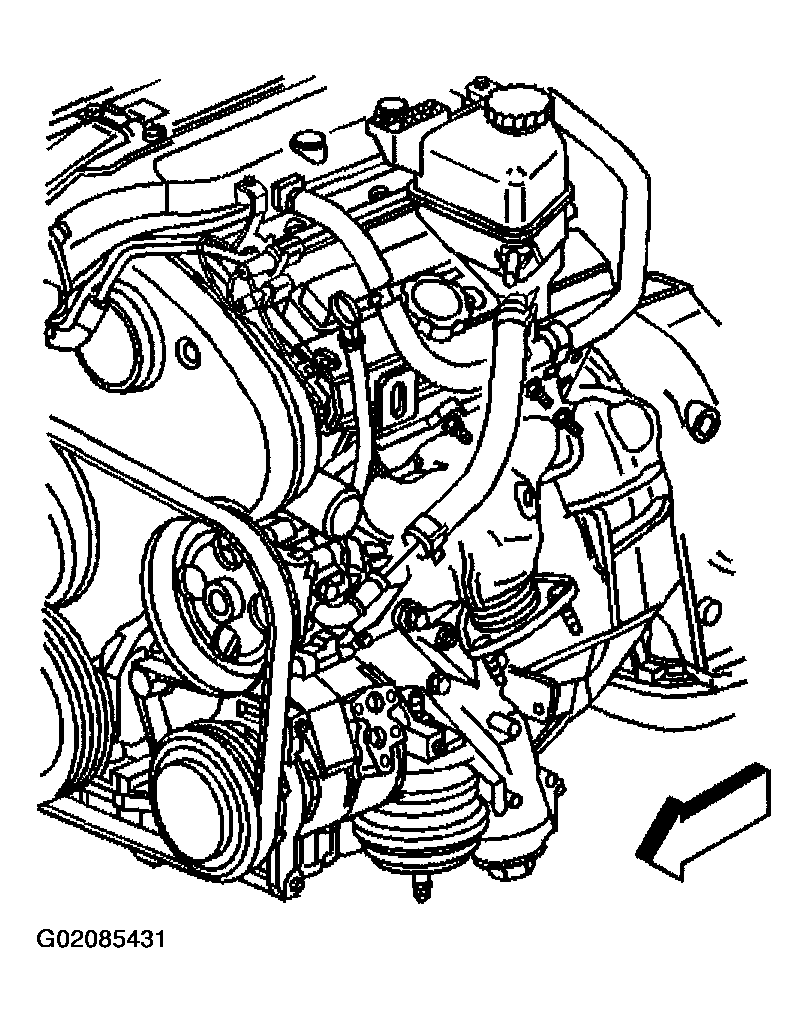

    Fig 1: Disconnecting Power Steering Reservoir Outlet Hose From Power Steering Pump
    G02085431Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the power steering pressure hose from the power steering pump.
    Fig 2: Disconnecting Power Steering Pressure Hose From Power Steering Pump
    G02085432Courtesy of GENERAL MOTORS CORP.
  5. Remove the power steering pump mounting bolts (1,2, and 3).
  6. Remove the power steering pump.

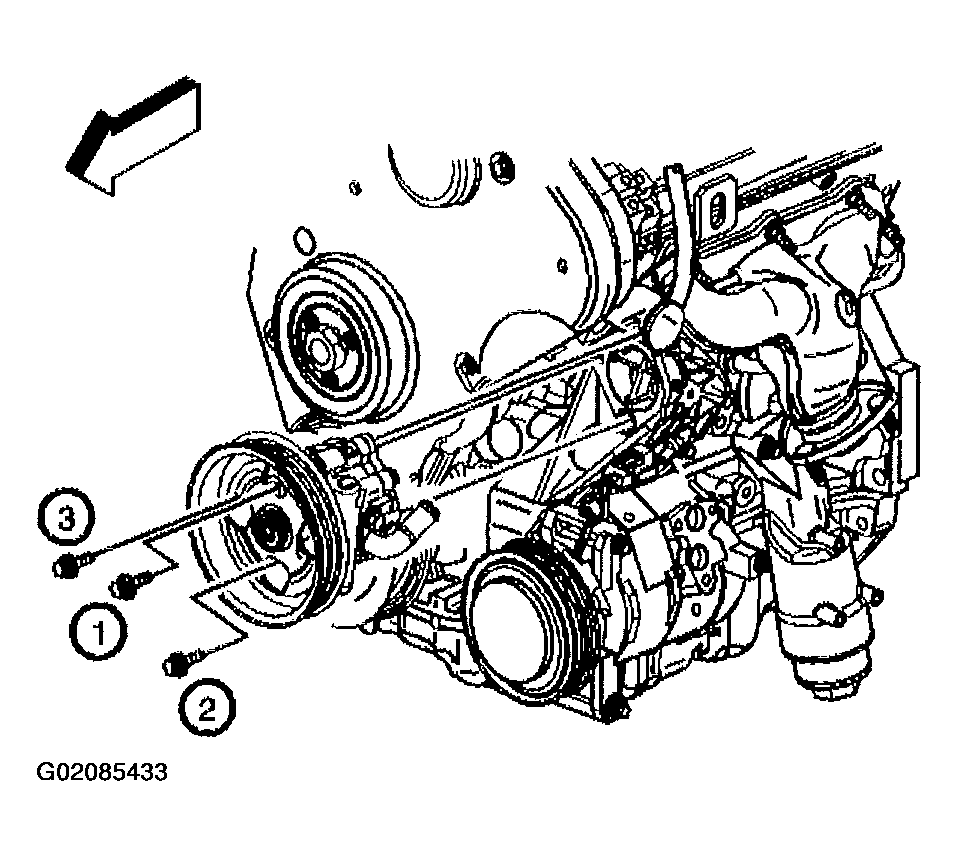

    Fig 3: Power Steering Pump & Mounting Bolts
    G02085433Courtesy of GENERAL MOTORS CORP.
