Installation Procedure

  1. Install the power steering reservoir.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the power steering reservoir mounting bolts (1 and 3).

    Tighten

    • Tighten the bolts (1) to 9 N.m (80 lb in).
    • Tighten the bolt (3) to 25 N.m (18 lb ft).

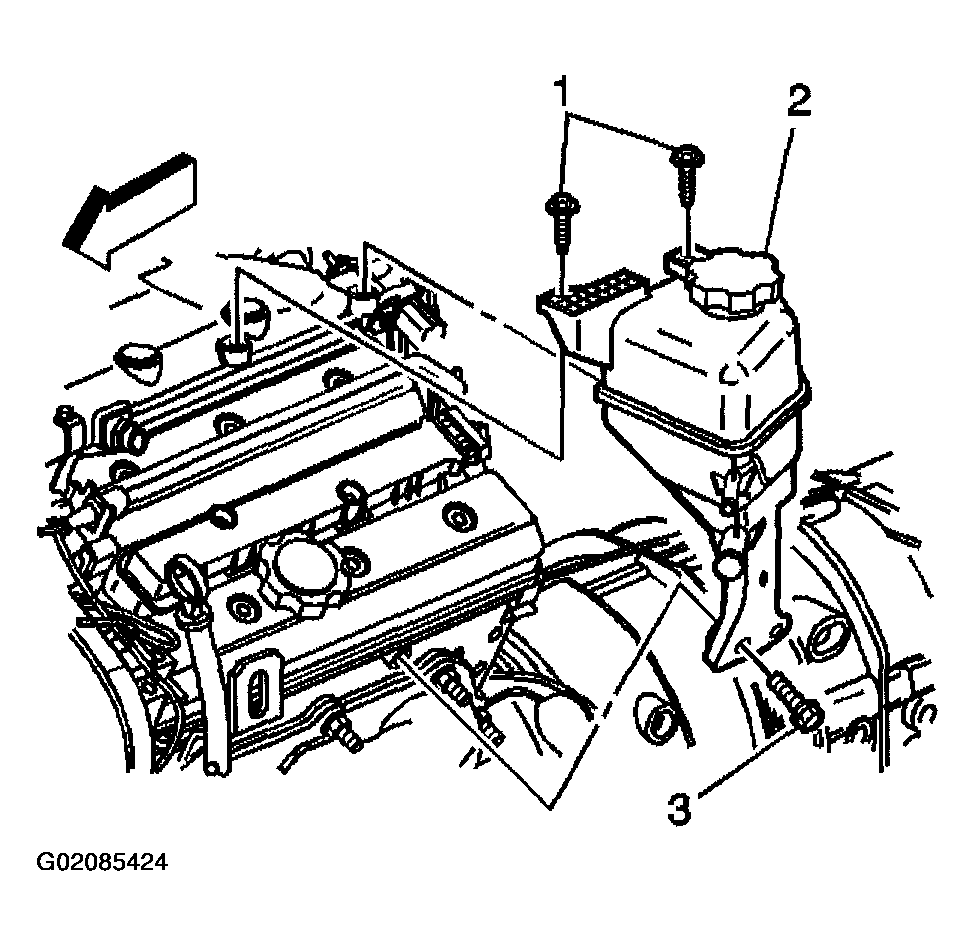

      Fig 1: Power Steering Reservoir
      G02085424Courtesy of GENERAL MOTORS CORP.
  3. Connect the wiring harness (2) to the power steering reservoir (1).
  4. Connect the brake vacuum hose to the power steering reservoir.

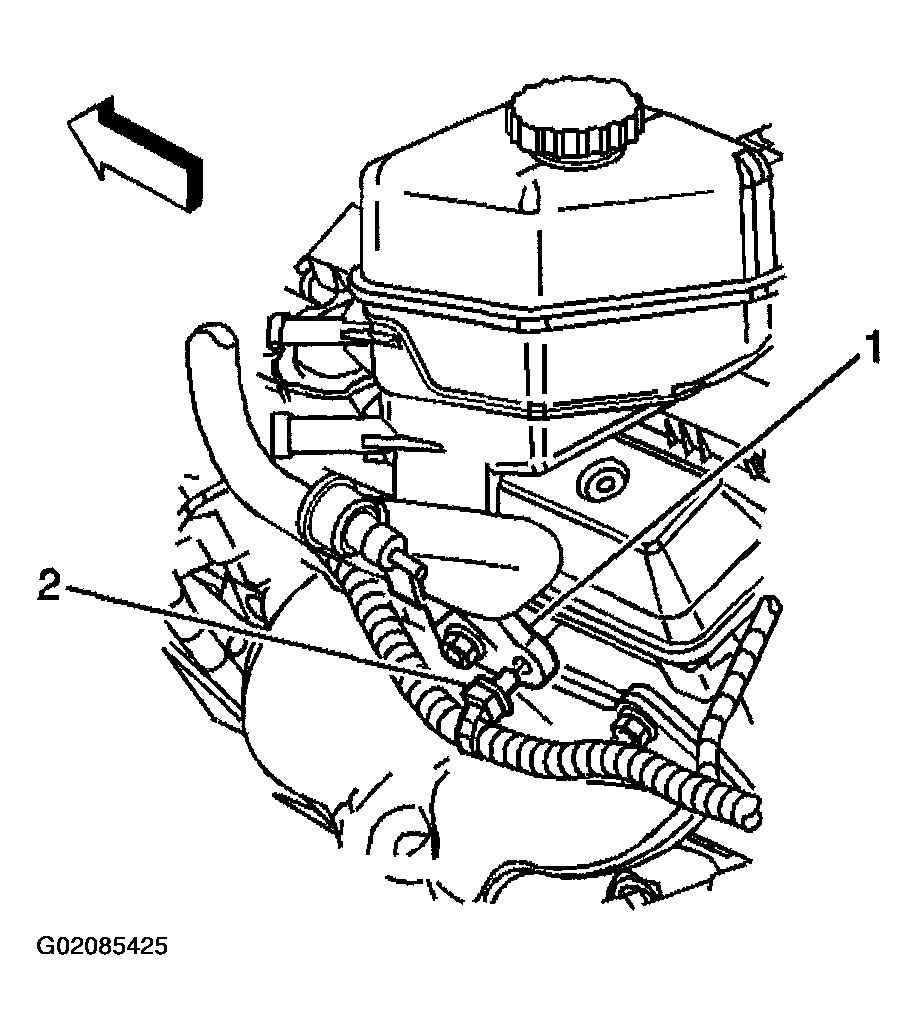

    Fig 2: Power Steering Reservoir Wiring Harness
    G02085425Courtesy of GENERAL MOTORS CORP.
  5. Connect the power steering reservoir outlet hose to the power steering reservoir.
    Fig 3: Power Steering Reservoir Outlet
    G02085426Courtesy of GENERAL MOTORS CORP.
  6. Connect the power steering return hose to the power steering reservoir.
  7. Remove the drain pan from under the vehicle.
  8. Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM  .
    Fig 4: Power Steering Return Hose
    G02085427Courtesy of GENERAL MOTORS CORP.
