Wheel Alignment Specifications

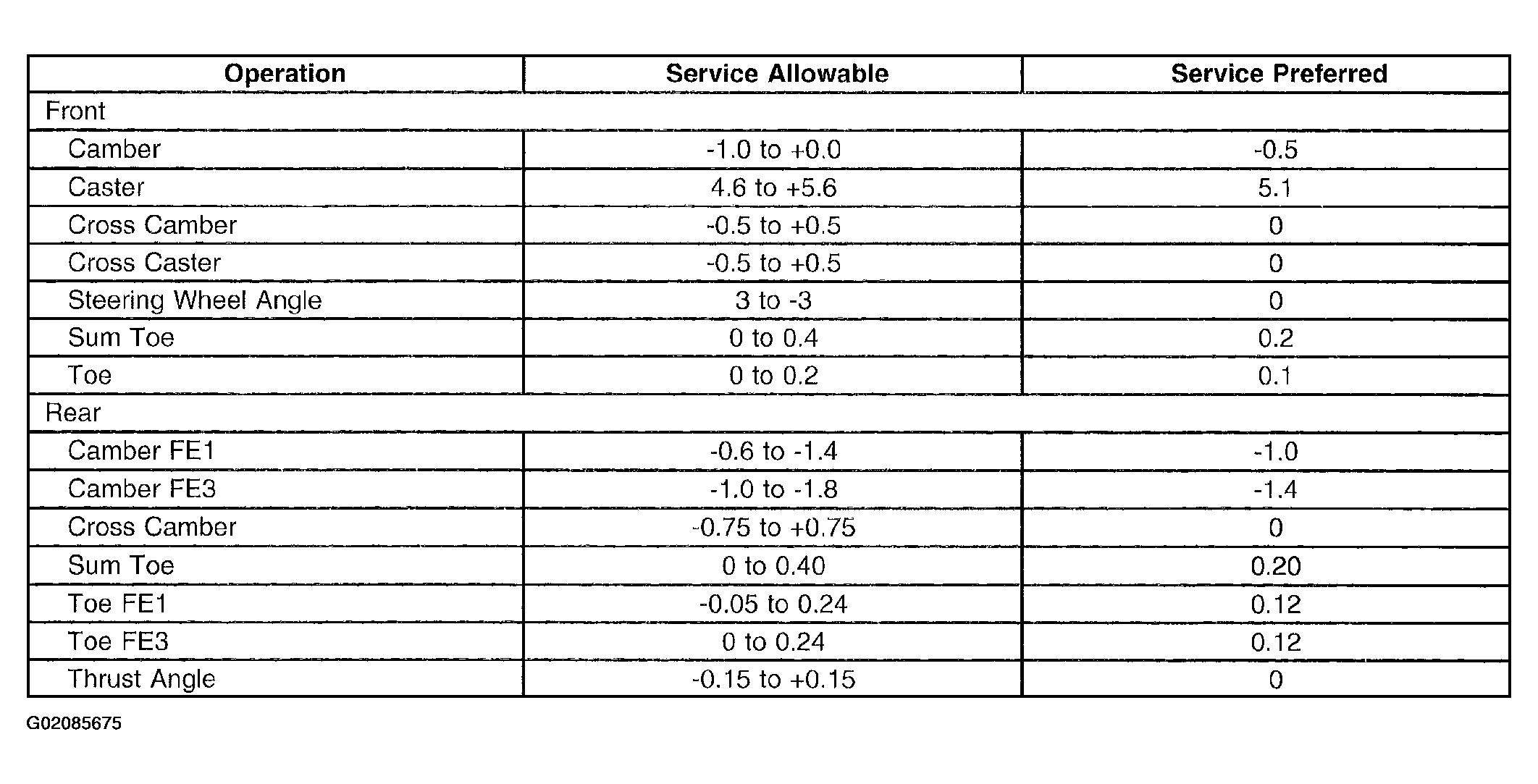

Fig 1: Wheel Alignment Specifications
G02085675Courtesy of GENERAL MOTORS CORP.
