Output Speed Sensor: Installation

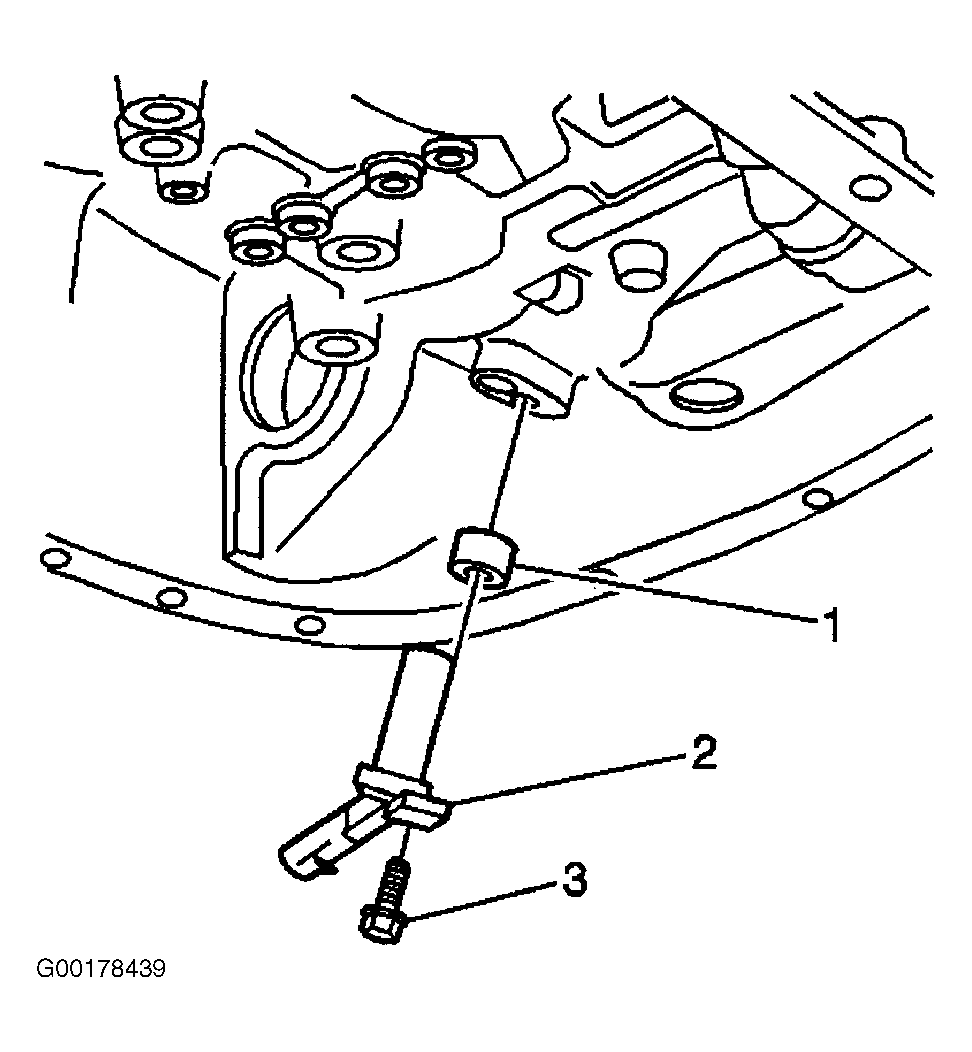

  1. Install the output speed sensor spacer (1). See Figure.
  2. Install the output speed sensor (2).
  3. Install the output speed sensor bolt (3). Tighten to specification. See TORQUE SPECIFICATIONS .

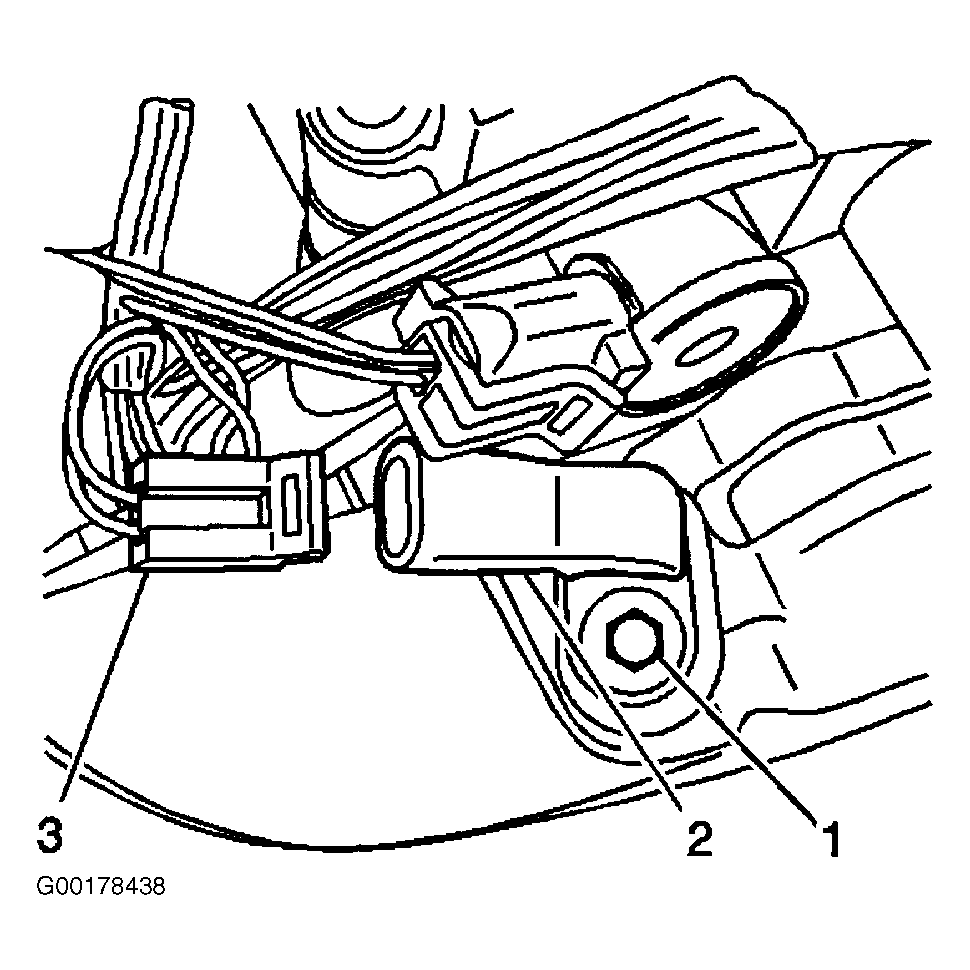

  4. Connect the electrical wiring harness connector (3) to the output speed sensor (2). See Figure.
  5. Install the transmission oil pan and filter.
