Component Location

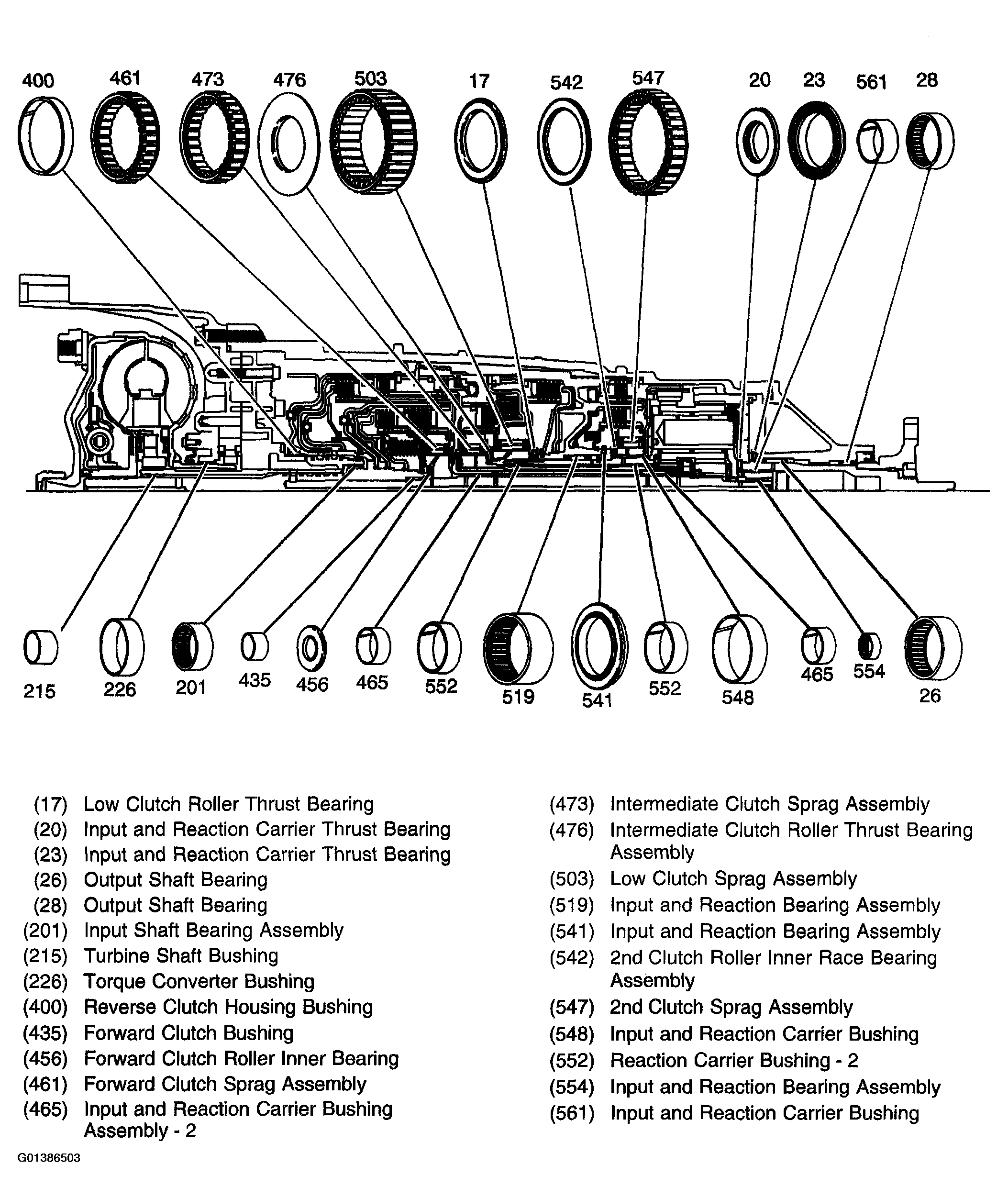

Fig 1: Automatic Transmission - Bushing & Bearing Locations
G01386503Courtesy of GENERAL MOTORS CORP.

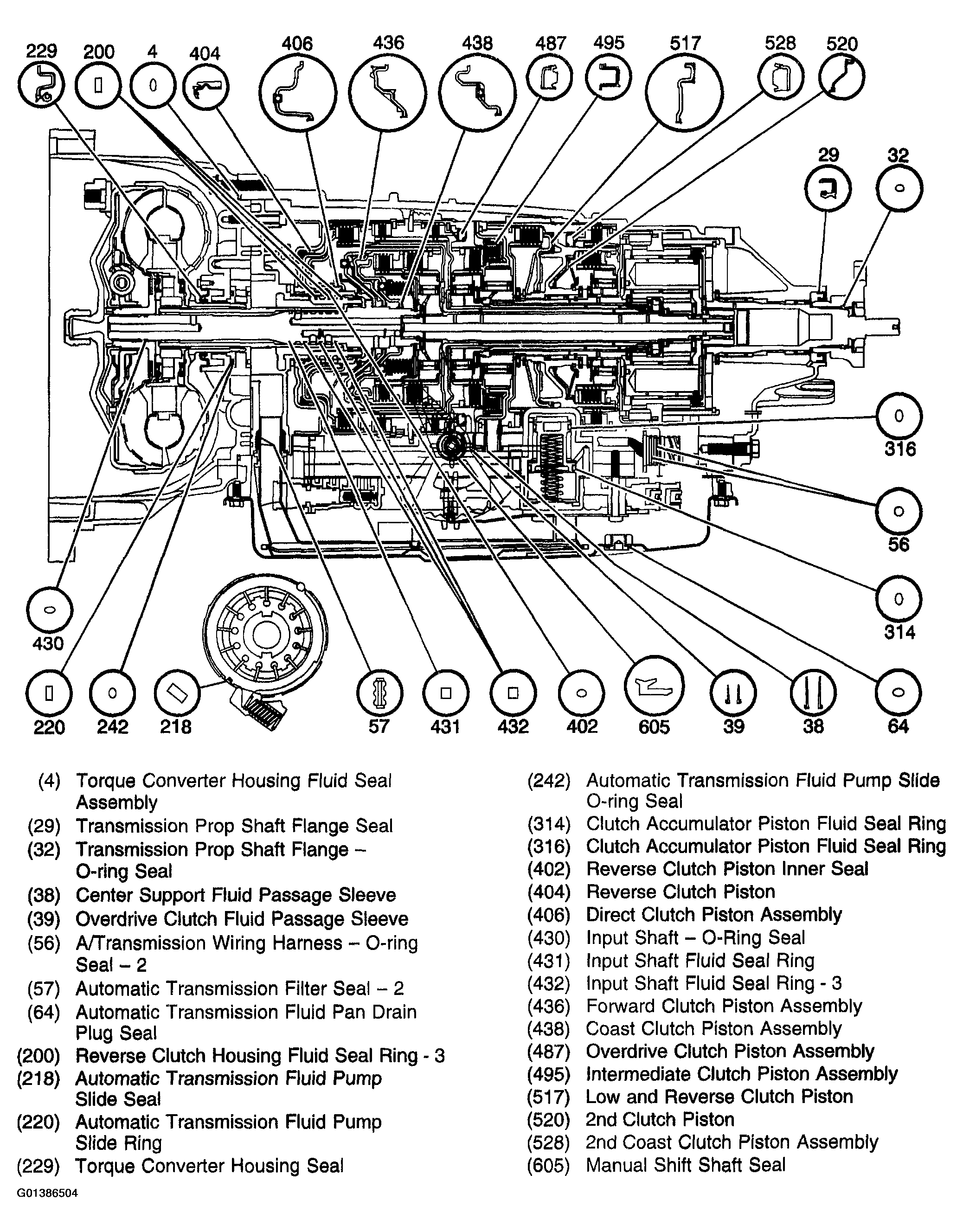

Fig 2: Automatic Transmission - Seal Locations
G01386504Courtesy of GENERAL MOTORS CORP.
