Case Components Assemble
NOTE:
Refer to FASTENER NOTICE
in Cautions and Notices.
Important:

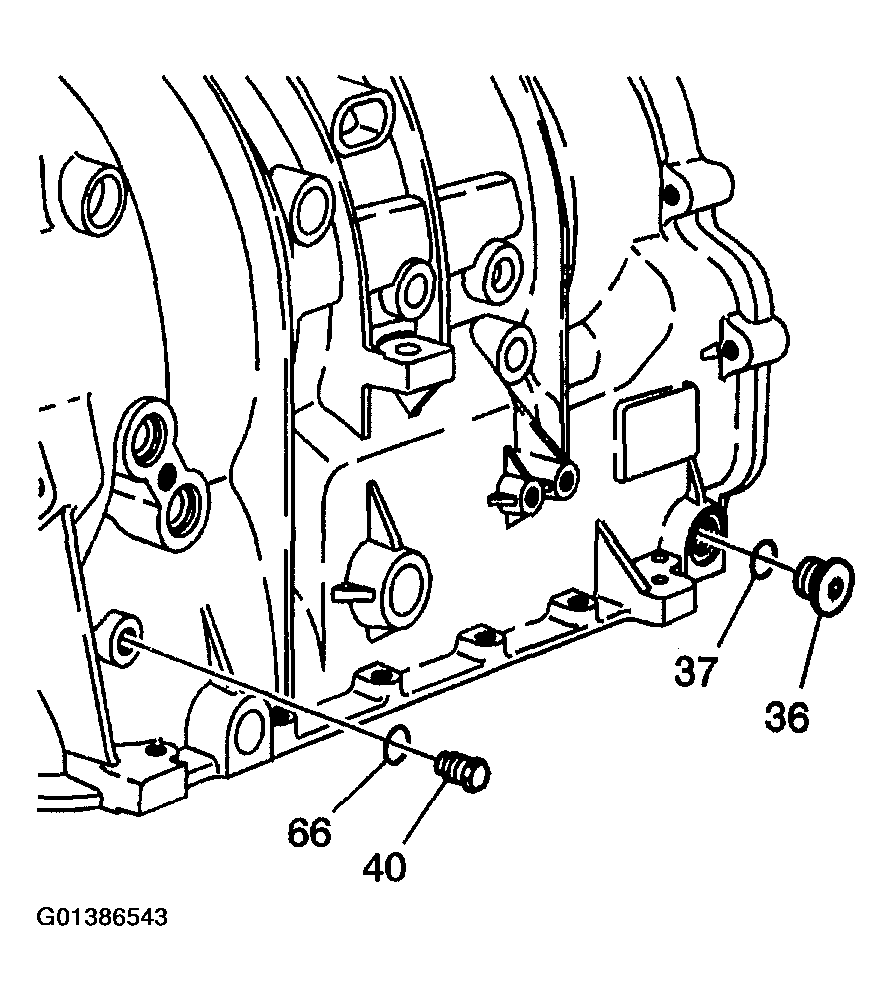

If the pressure test plug (40), O-ring (66), level hole plug (36) and O-ring (37) are not damaged, they should be reused.
- Inspect the pressure test hole plug (40) and O-ring (66) for damage.
- Install the pressure test plug (40) and O-ring (66).
Tighten
- Tighten the pressure test plug to 11 N.m (8 lb ft).
- Inspect the level hole plug (36) and O-ring (37) for damage.
- Install the transmission fluid level hole plug O-ring (37) and the transmission level hole plug (36).
Tighten
- Tighten the level hole plug to 20 N.m (15 lb ft).
