End Play Specifications

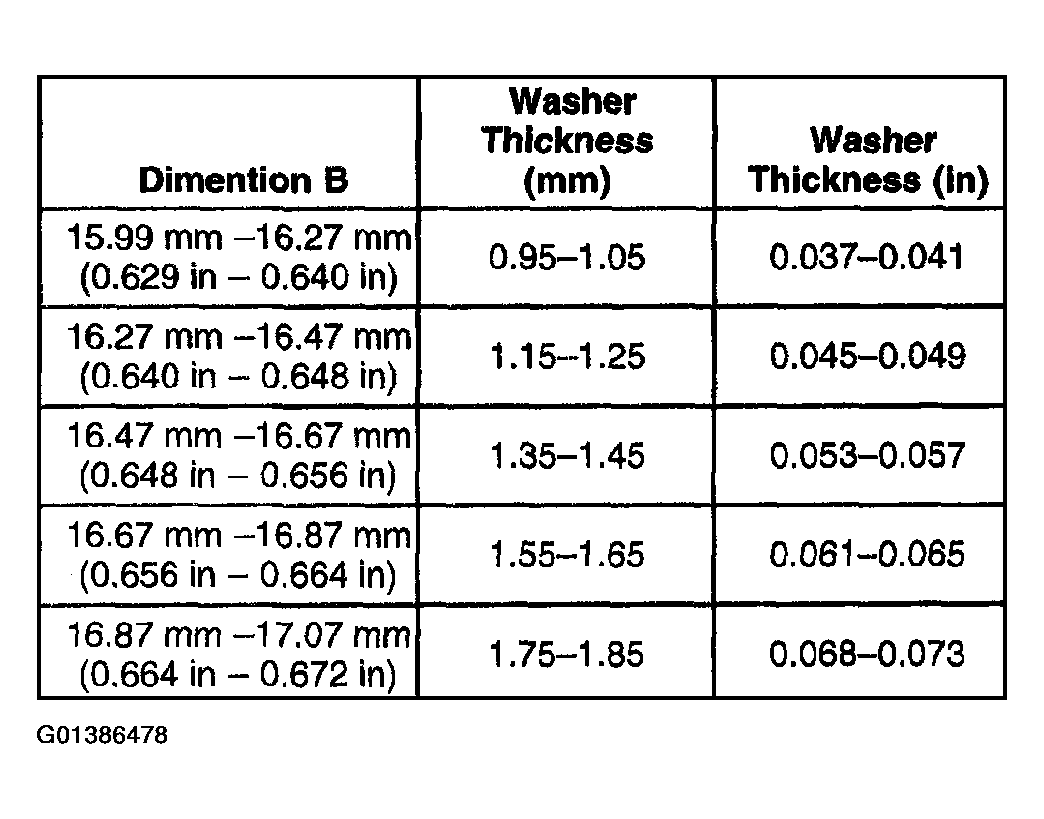

Fig 1: Output Shaft End Play Chart (1 Of 2)
G01386478Courtesy of GENERAL MOTORS CORP.

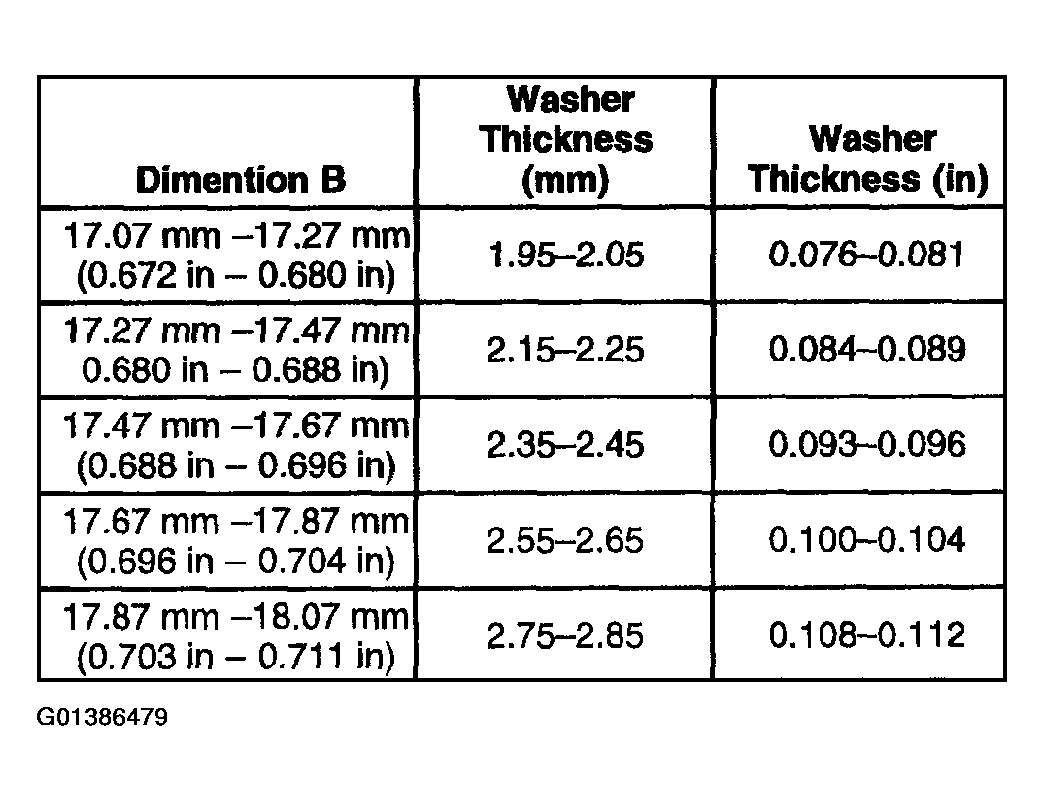

Fig 2: Output Shaft End Play Chart (2 Of 2)
G01386479Courtesy of GENERAL MOTORS CORP.
