Scan Tool Data List

Fig 1: Rear Integration Module - Scan Tool Data List
G02094752Courtesy of GENERAL MOTORS CORP.

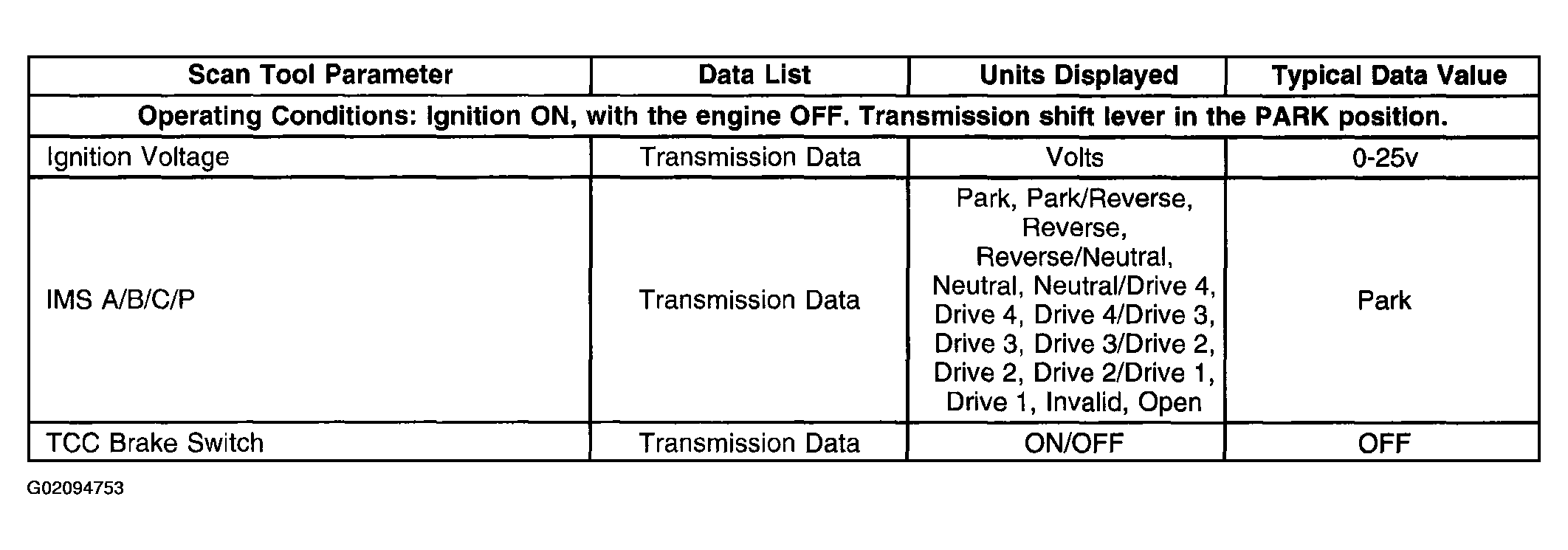

Fig 2: Powertrain Control Module (PCM) - Scan Tool Data List
G02094753Courtesy of GENERAL MOTORS CORP.
