Scan Tool Data List

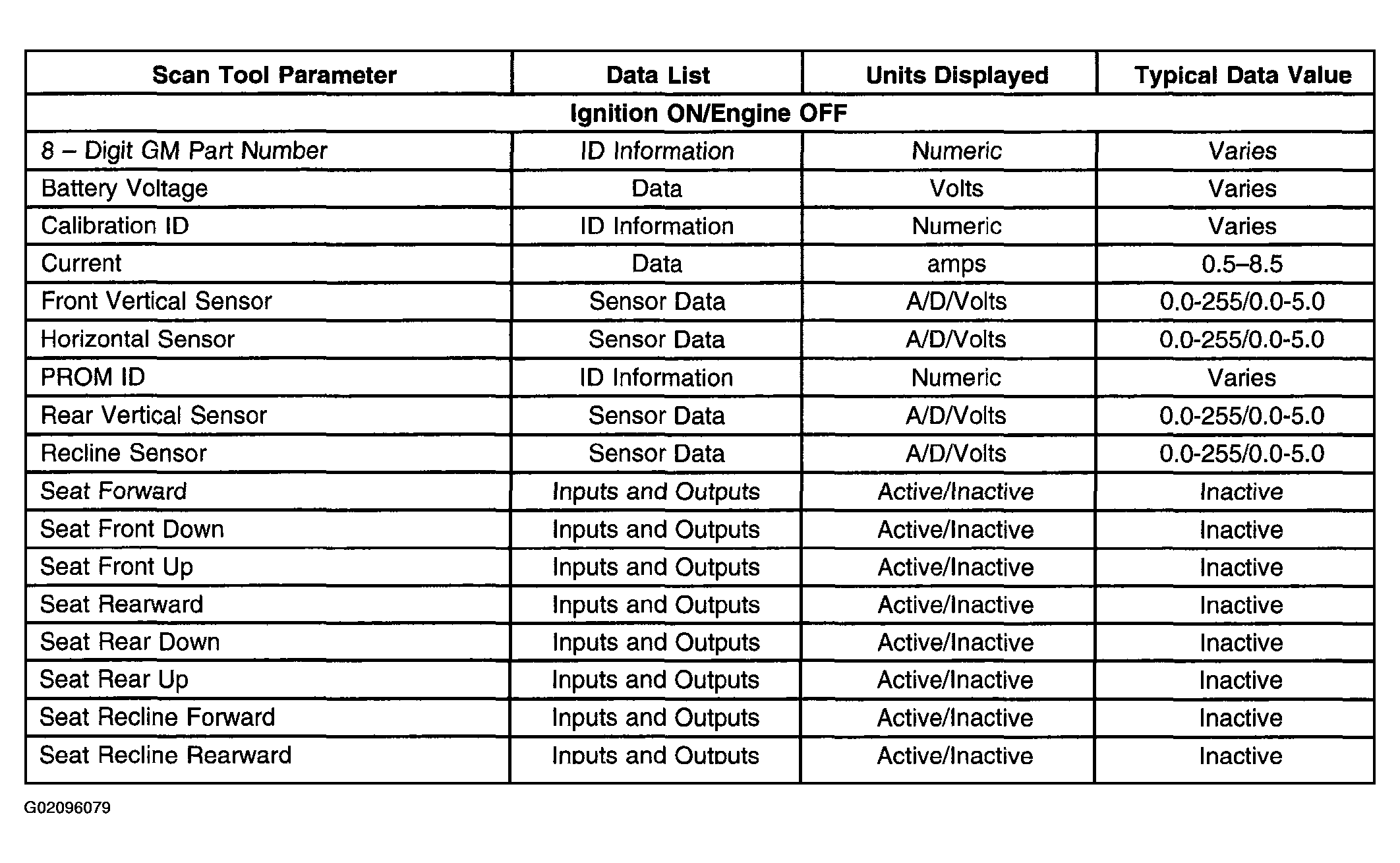

Fig 1: Scan Tool Data List (MSM)
Courtesy of GENERAL MOTORS CORP.

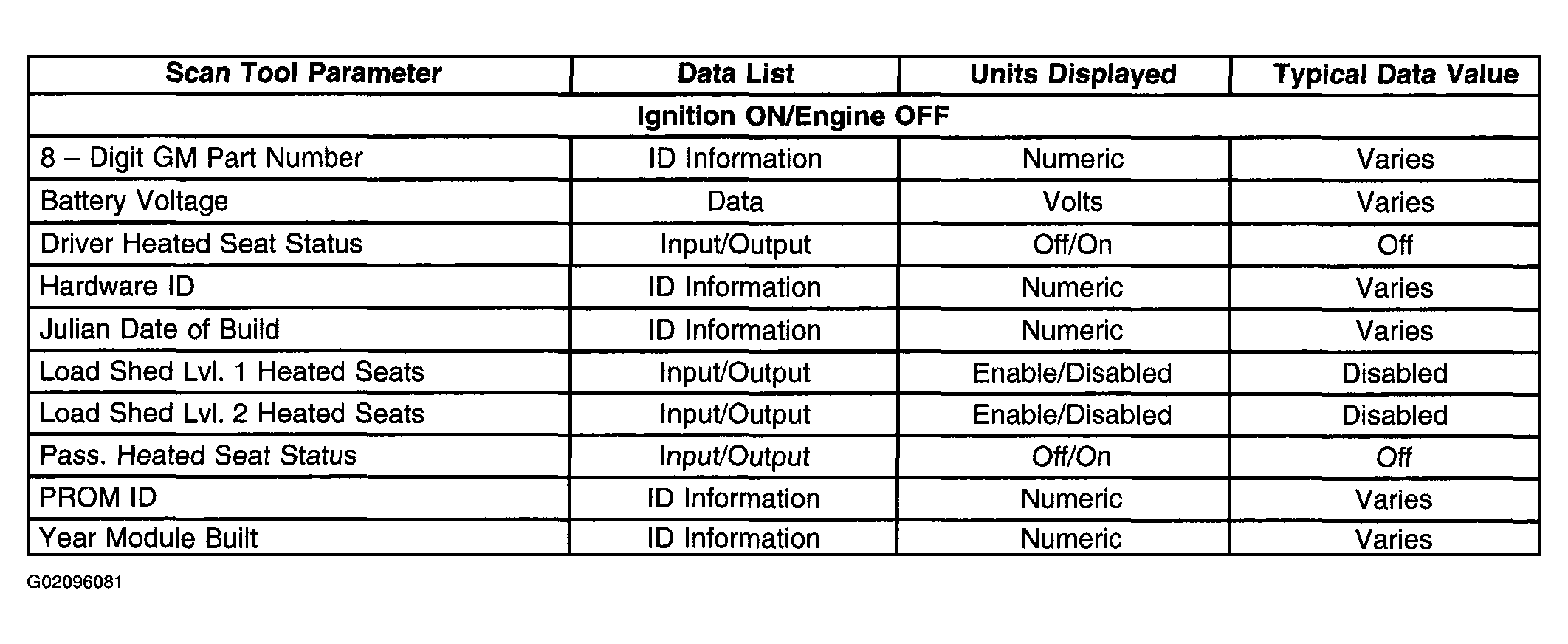

Fig 2: Scan Tool Data List (DDSA)
Courtesy of GENERAL MOTORS CORP.

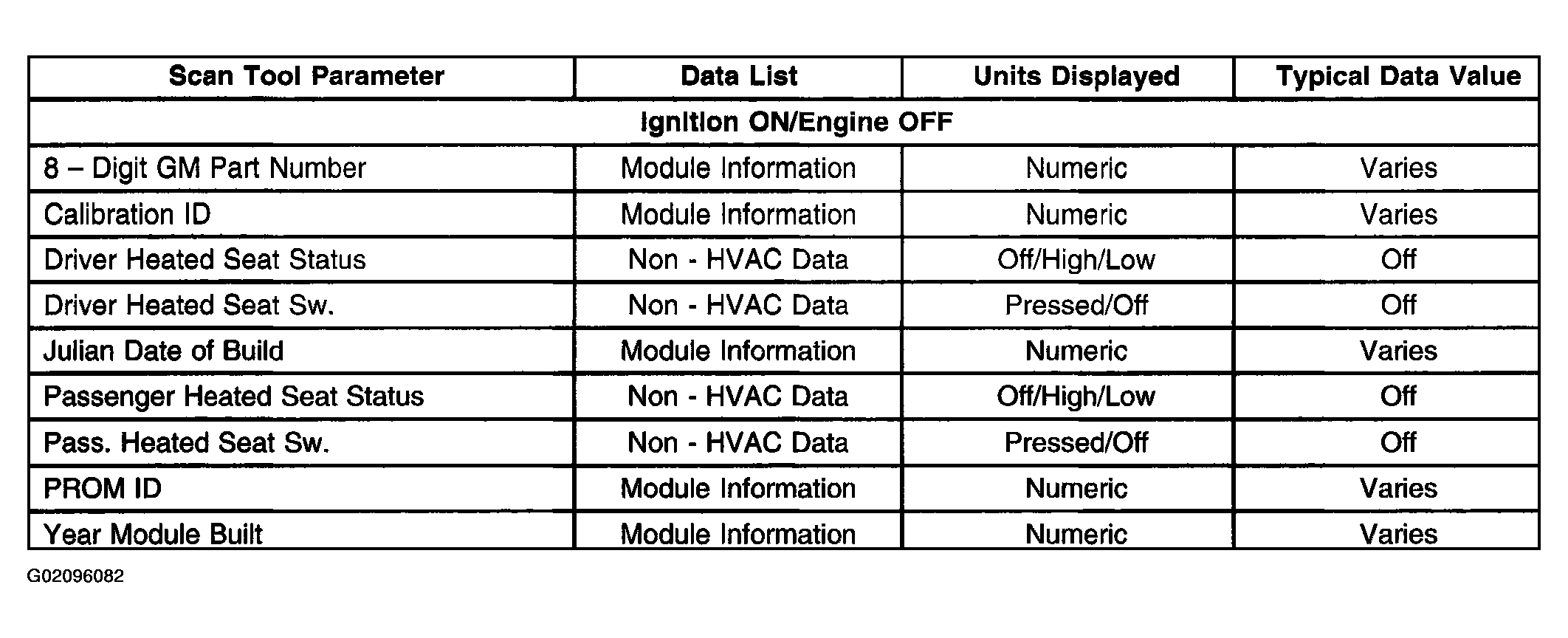

Fig 3: Scan Tool Data List (RIM)
Courtesy of GENERAL MOTORS CORP.
Fig 4: Scan Tool Data List (CCP)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
