Schematics and Routing Diagram

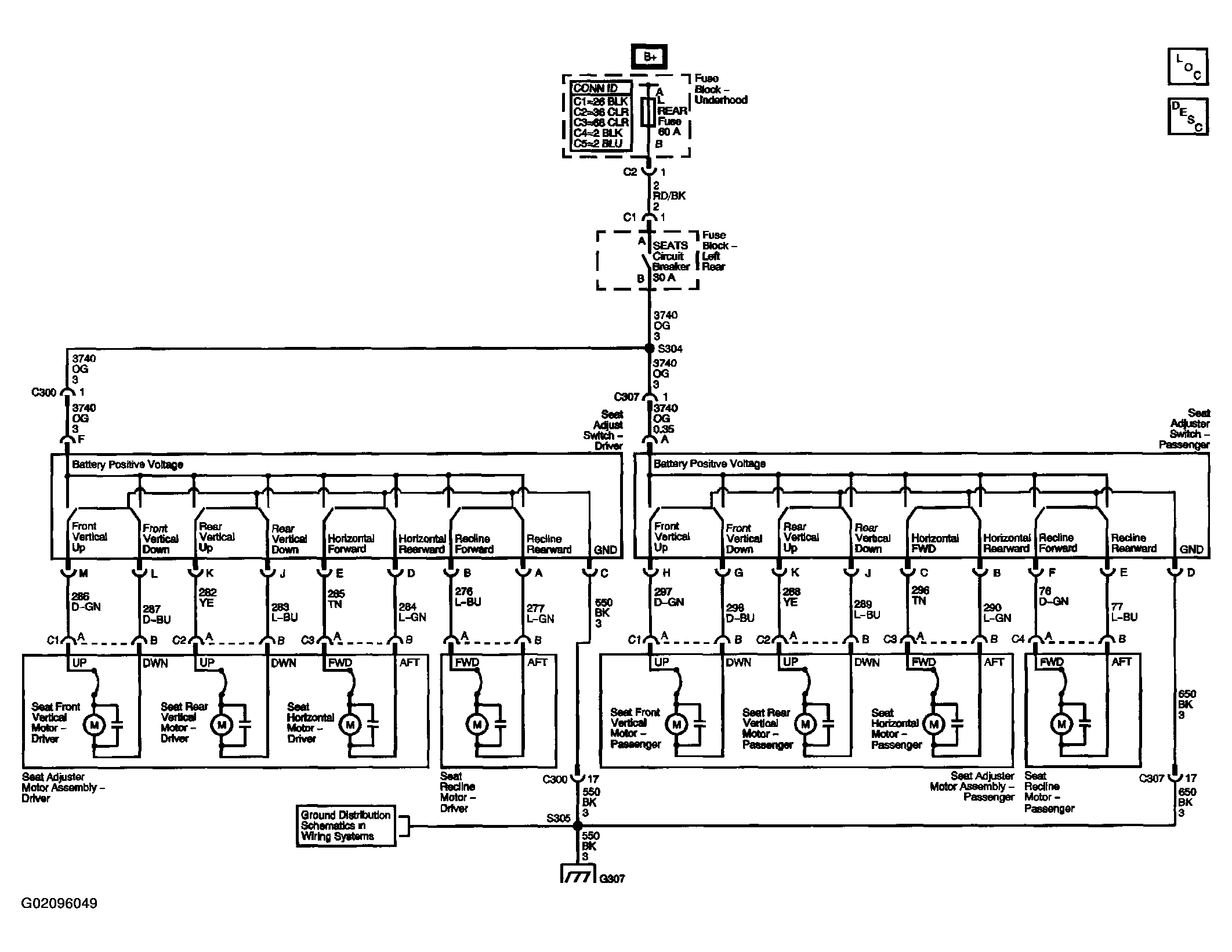

Fig 1: Power Seats Schematics

Courtesy of GENERAL MOTORS CORP.

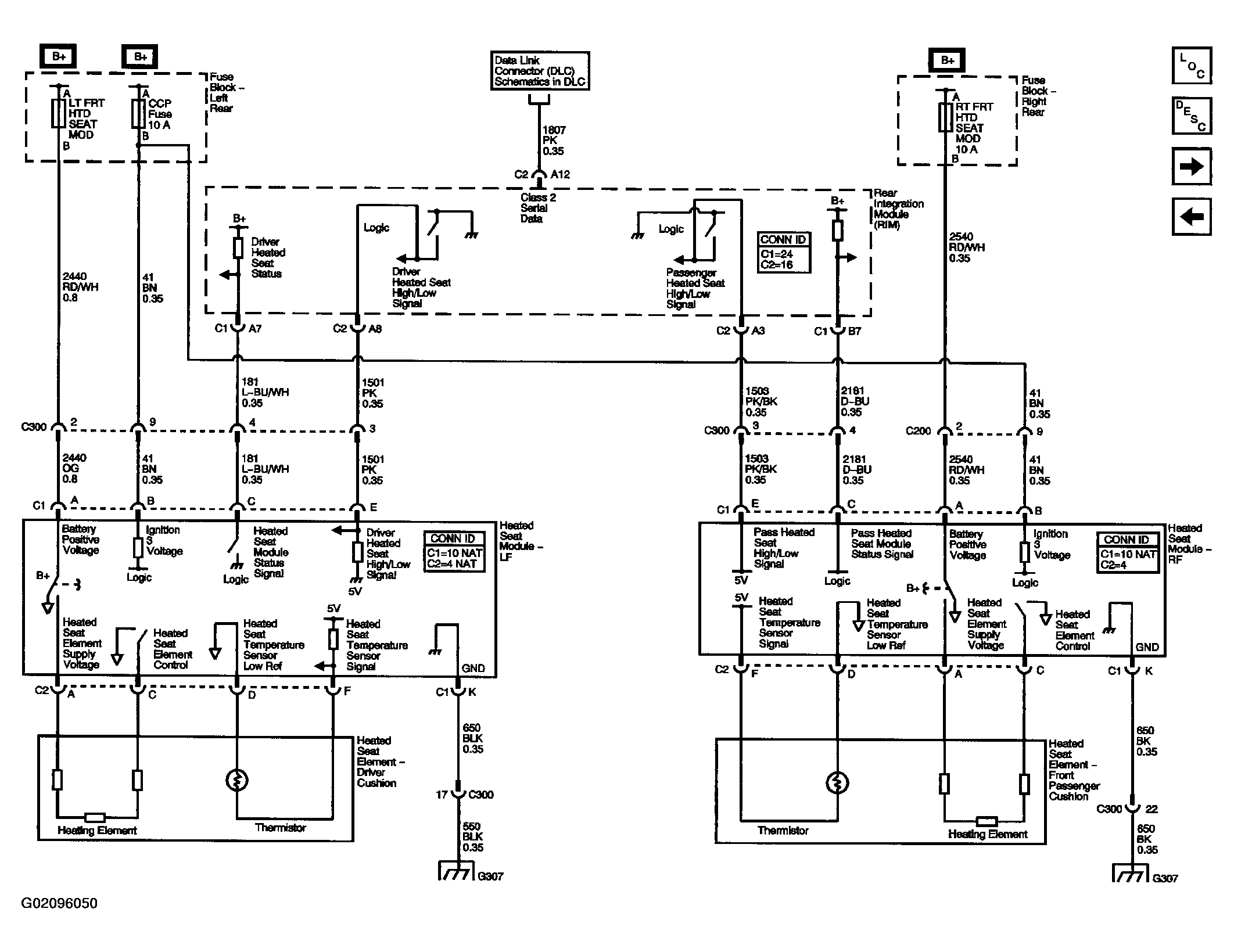

Fig 2: Heated Seats Schematics

Courtesy of GENERAL MOTORS CORP.

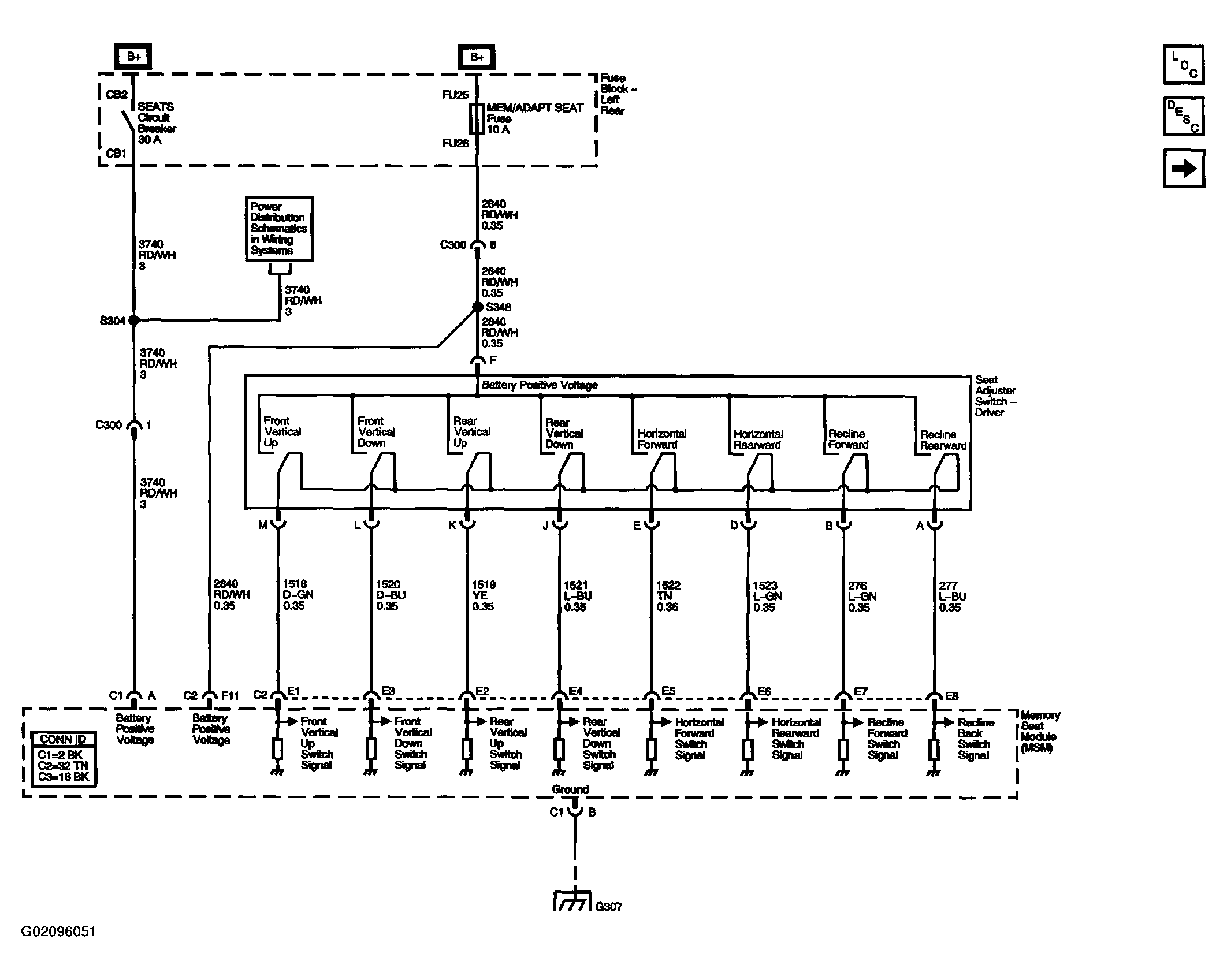

Fig 3: Memory Seats Schematics (MSM Power and Ground)

Courtesy of GENERAL MOTORS CORP.

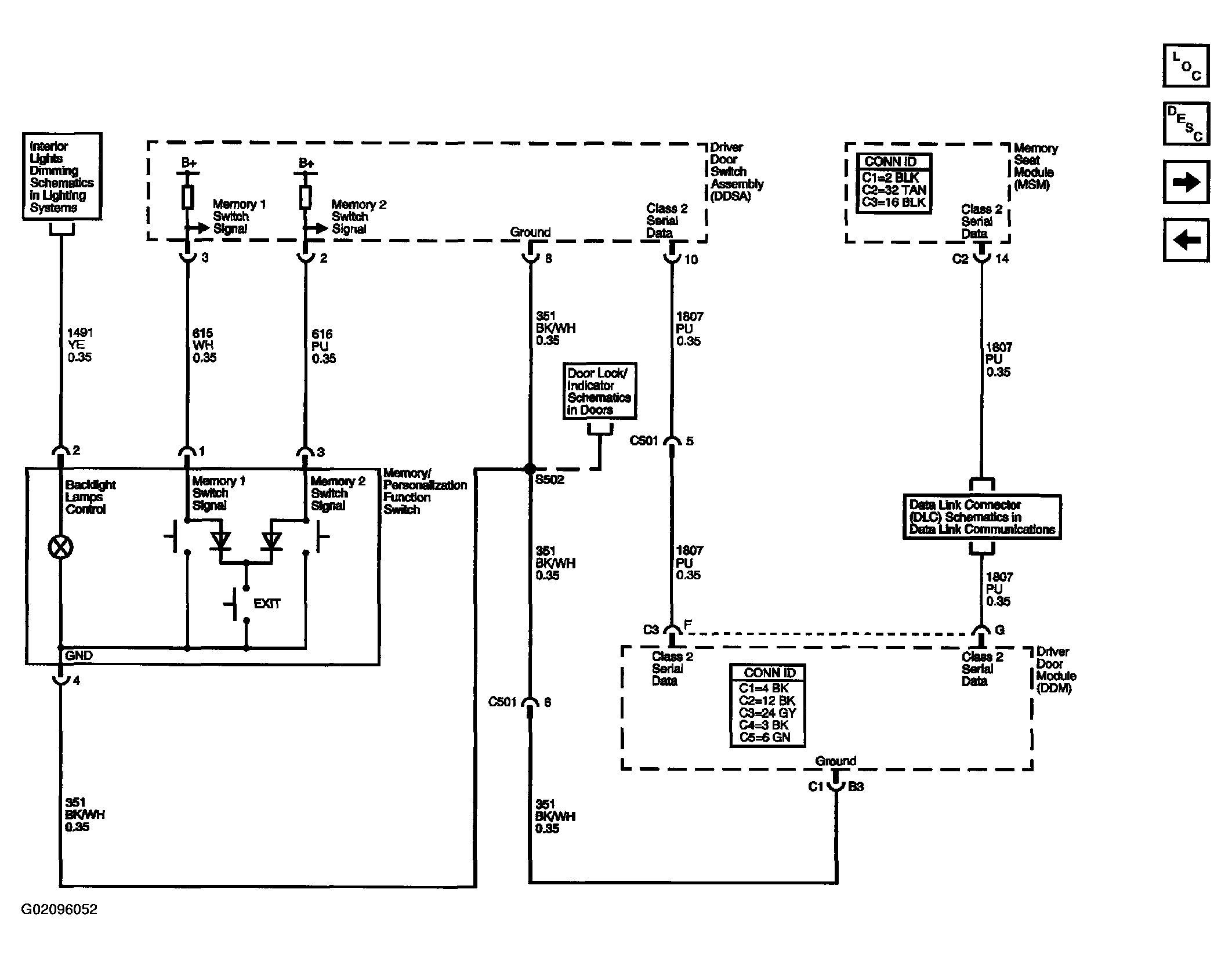

Fig 4: Memory Seats Schematics (Memory Switch)

Courtesy of GENERAL MOTORS CORP.

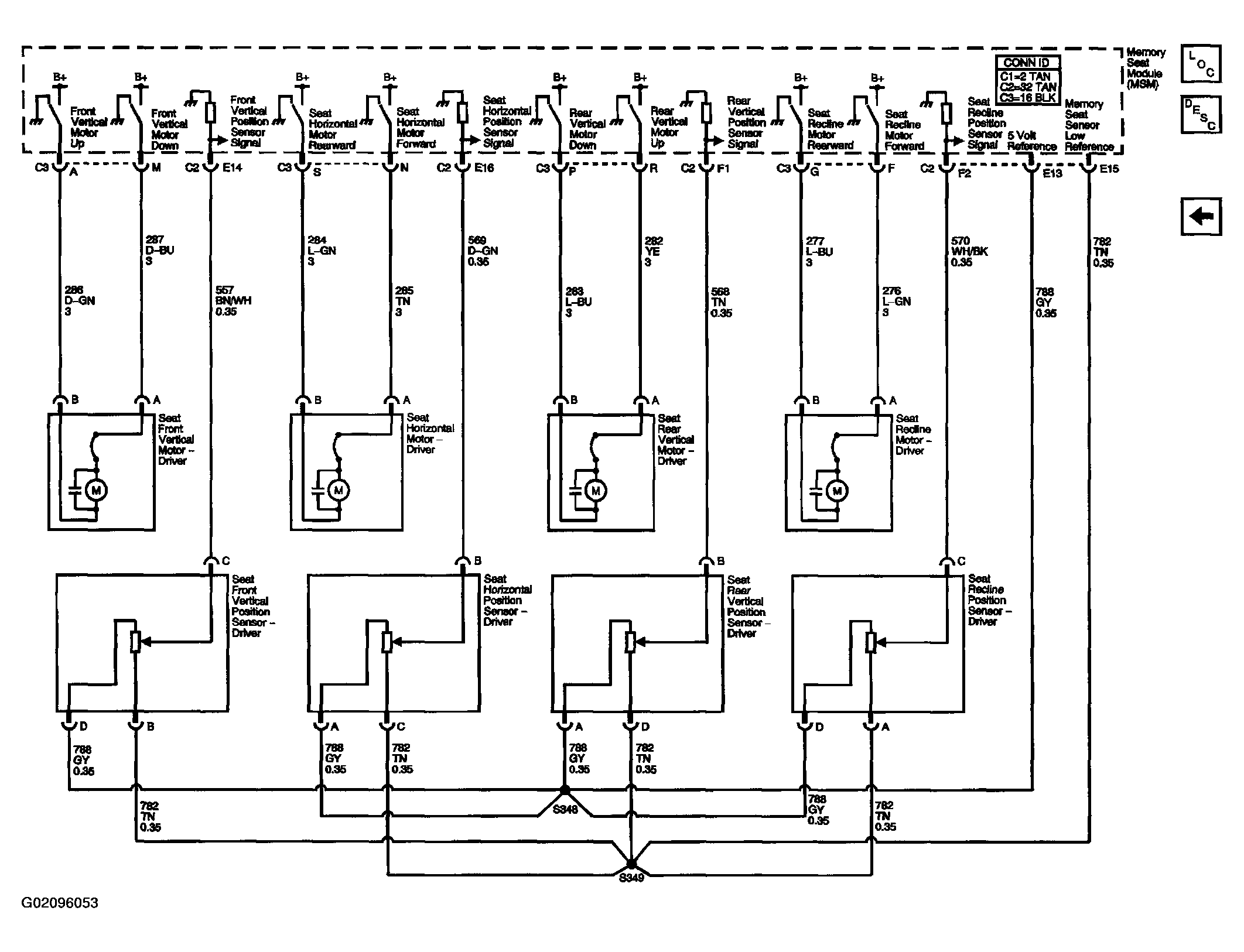

Fig 5: Memory Seats Schematics (Position Sensors and Motors)

Courtesy of GENERAL MOTORS CORP.
