Removal Procedure

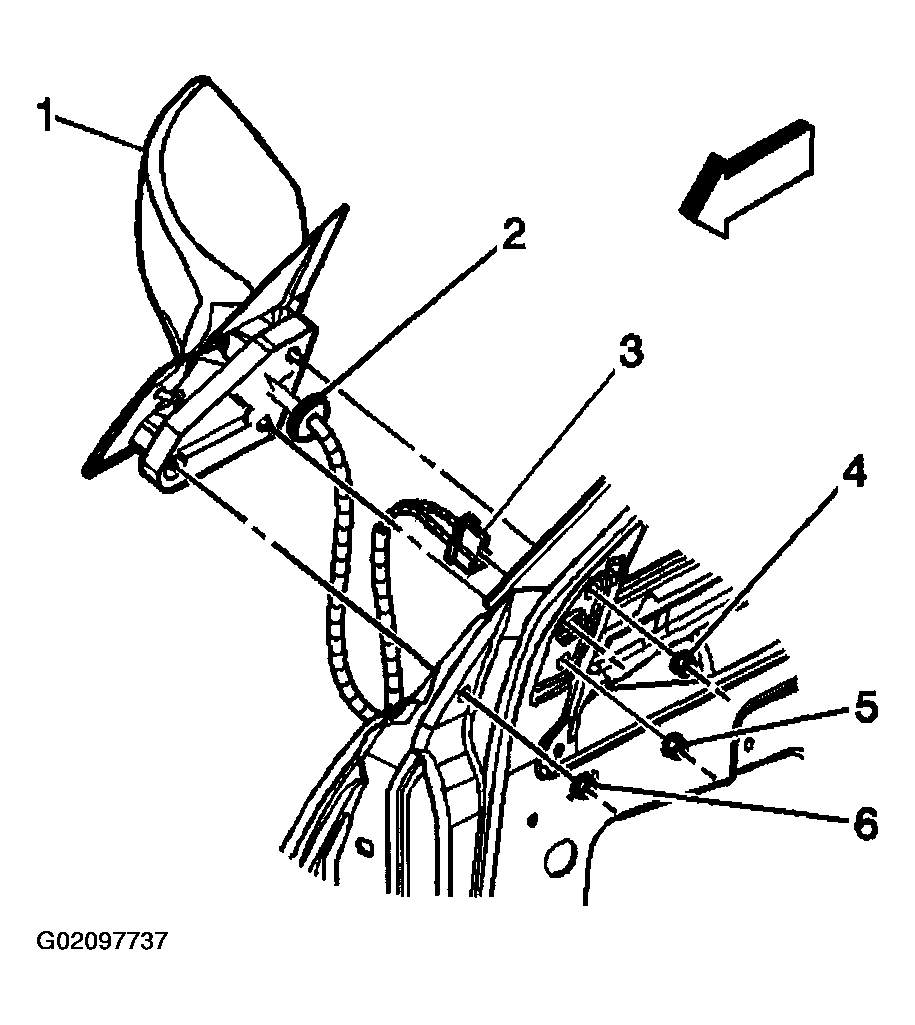

- Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .
- Disconnect the power mirror wire harness electrical connector (3).
- Remove the mirror fasteners (4, 5, 6).
- Remove the mirror (1) from the door.
- Pull the wiring harness through the hole in the mirror patch.
