Power Window Schematics

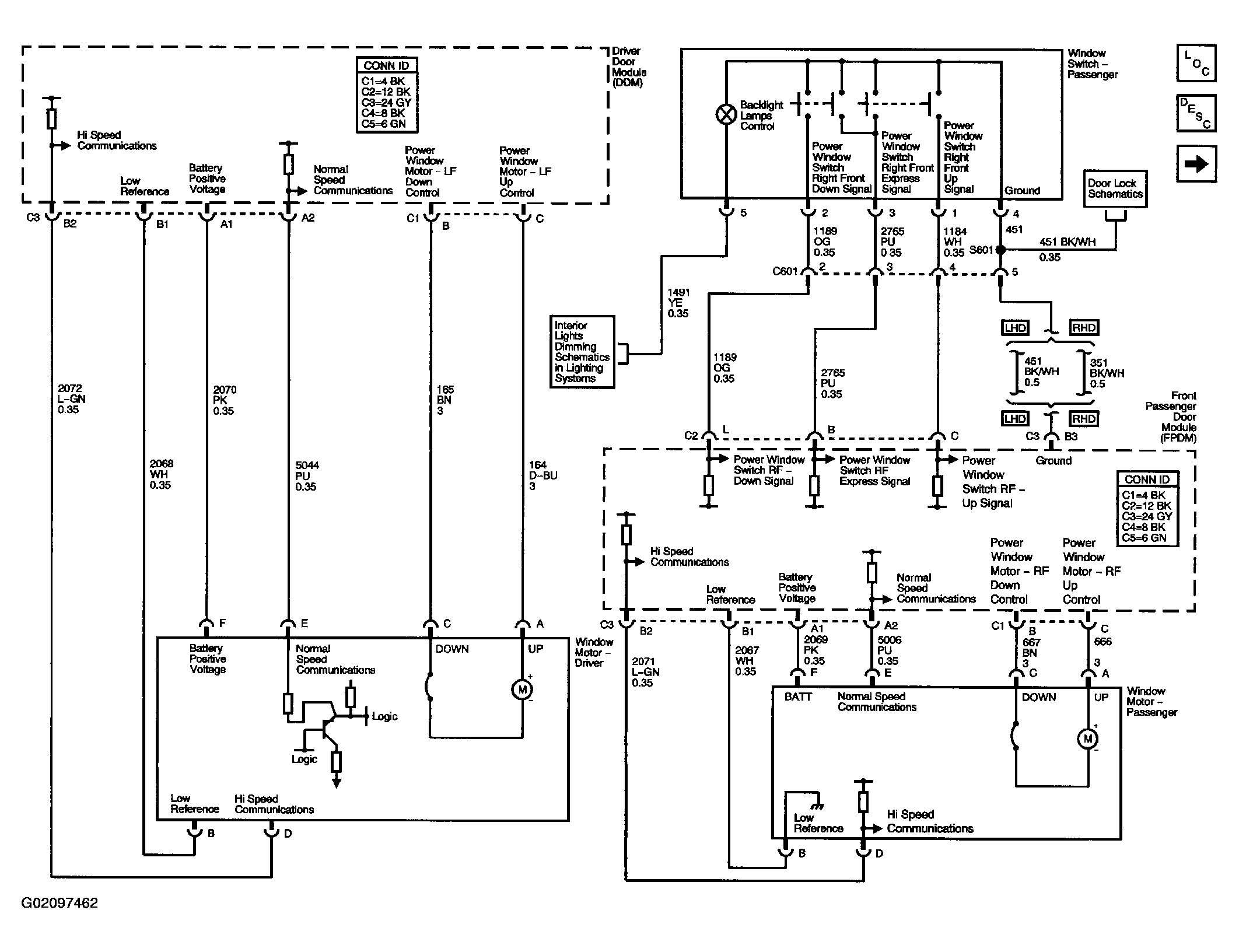

Fig 1: Power Window (Front Passenger Window Switch) Schematics Diagram
G02097462Courtesy of GENERAL MOTORS CORP.

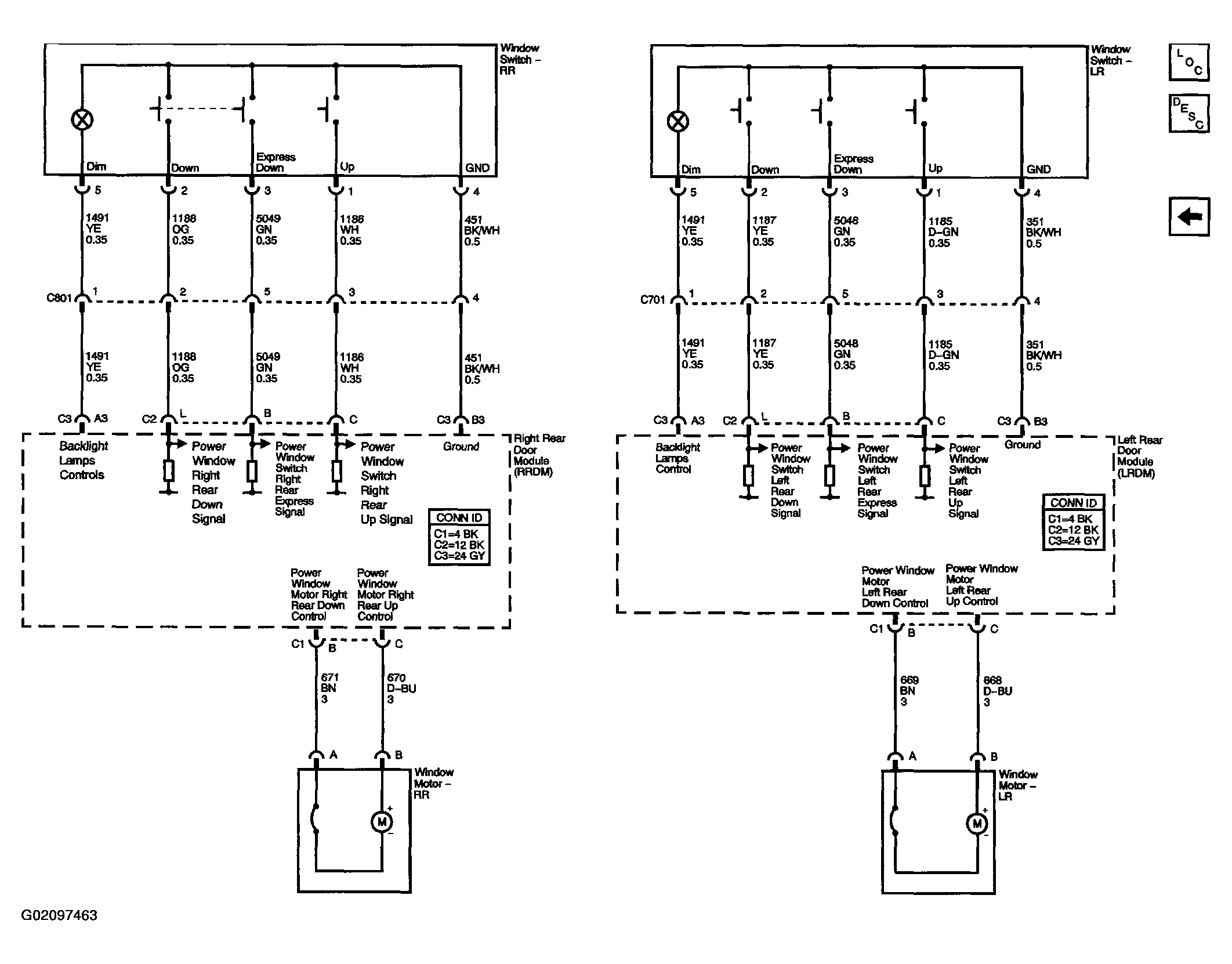

Fig 2: Power Window (Rear Window Switches And Motors) Schematics Diagram
G02097463Courtesy of GENERAL MOTORS CORP.
