Stationary Windows Connector End Views

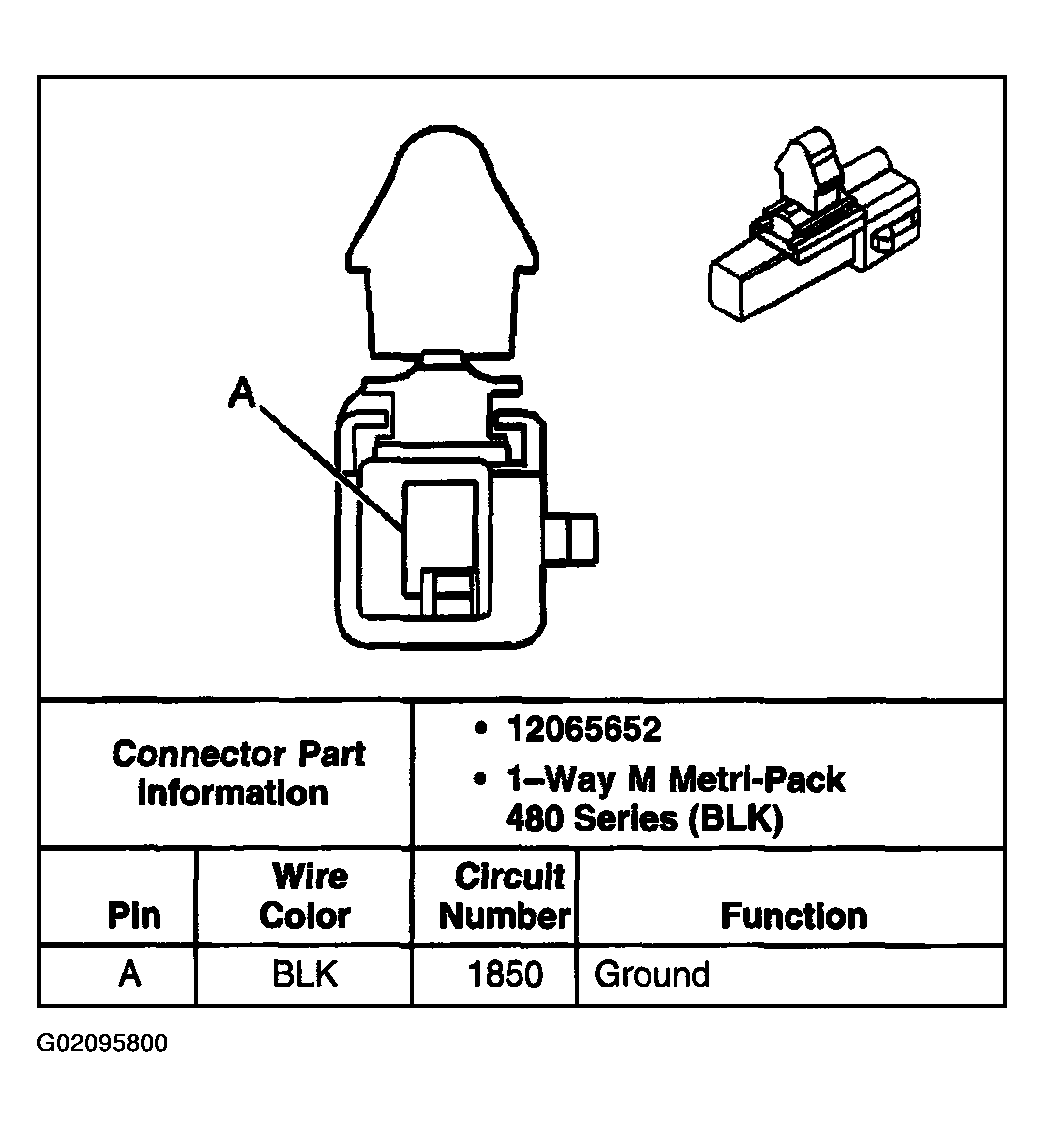

Fig 1: Rear Defogger Connector End View - Right

Courtesy of GENERAL MOTORS CORP.

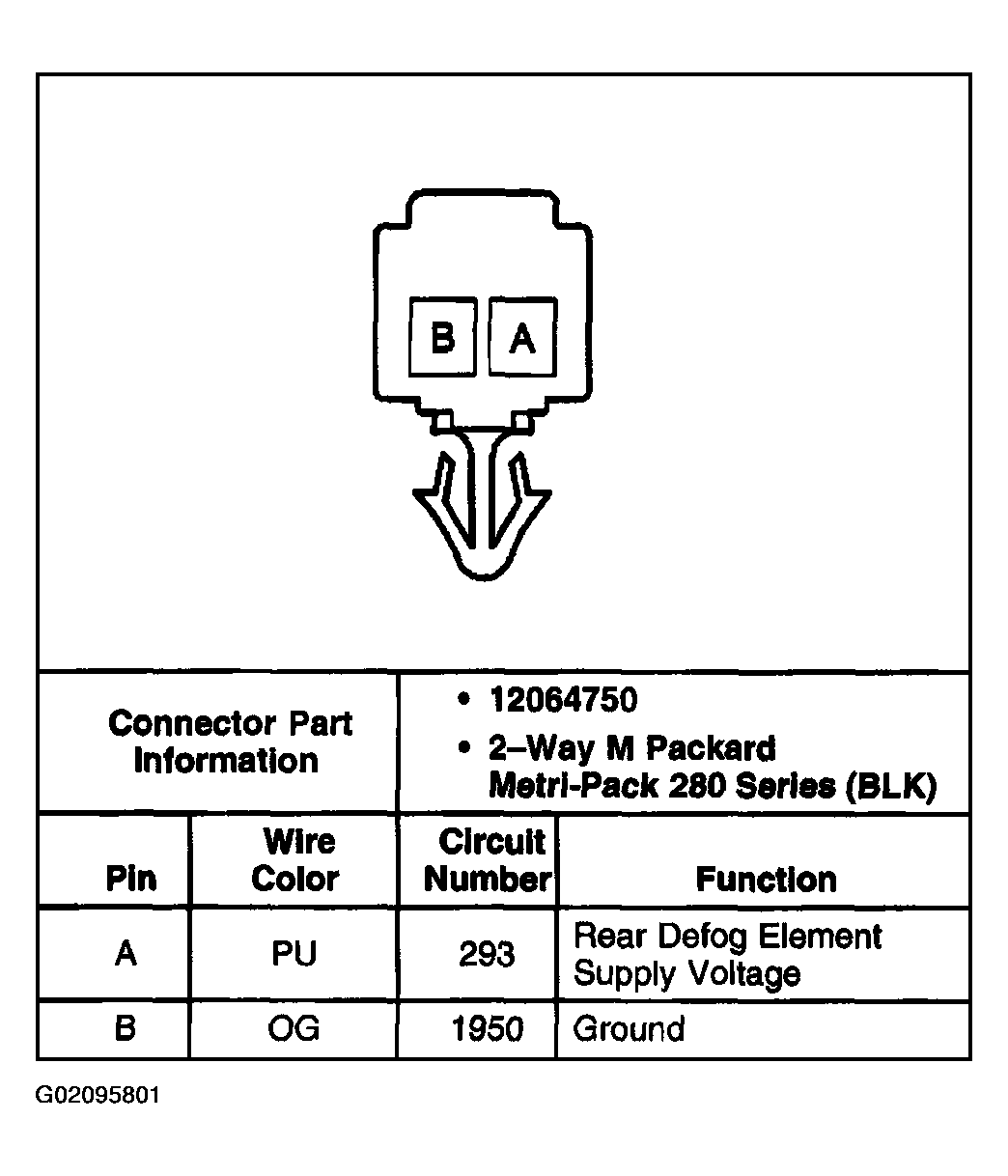

Fig 2: Rear Defogger Connector End View - Left

Courtesy of GENERAL MOTORS CORP.

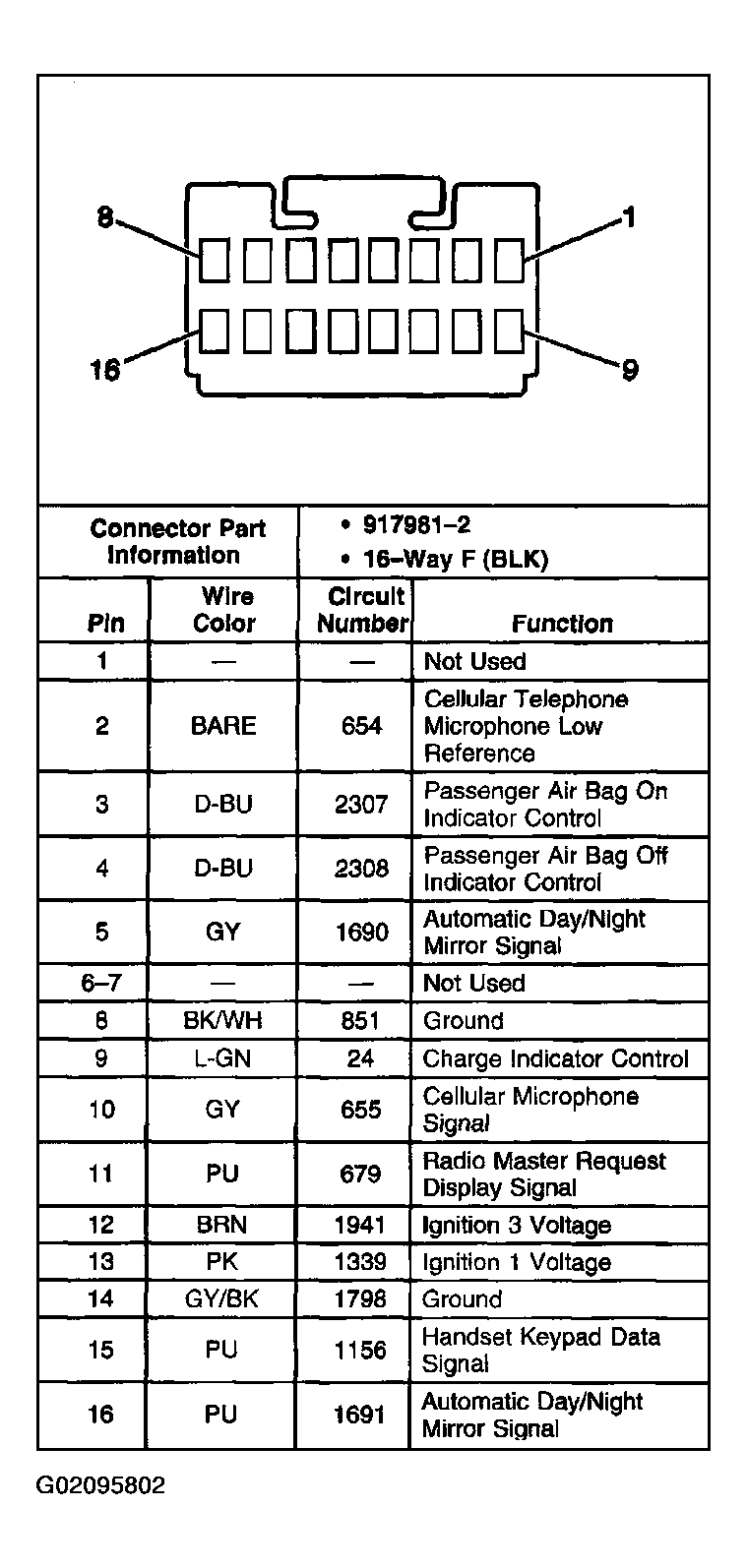

Fig 3: Inside Rearview Mirror Connector End View

Courtesy of GENERAL MOTORS CORP.
