ABS Schematics

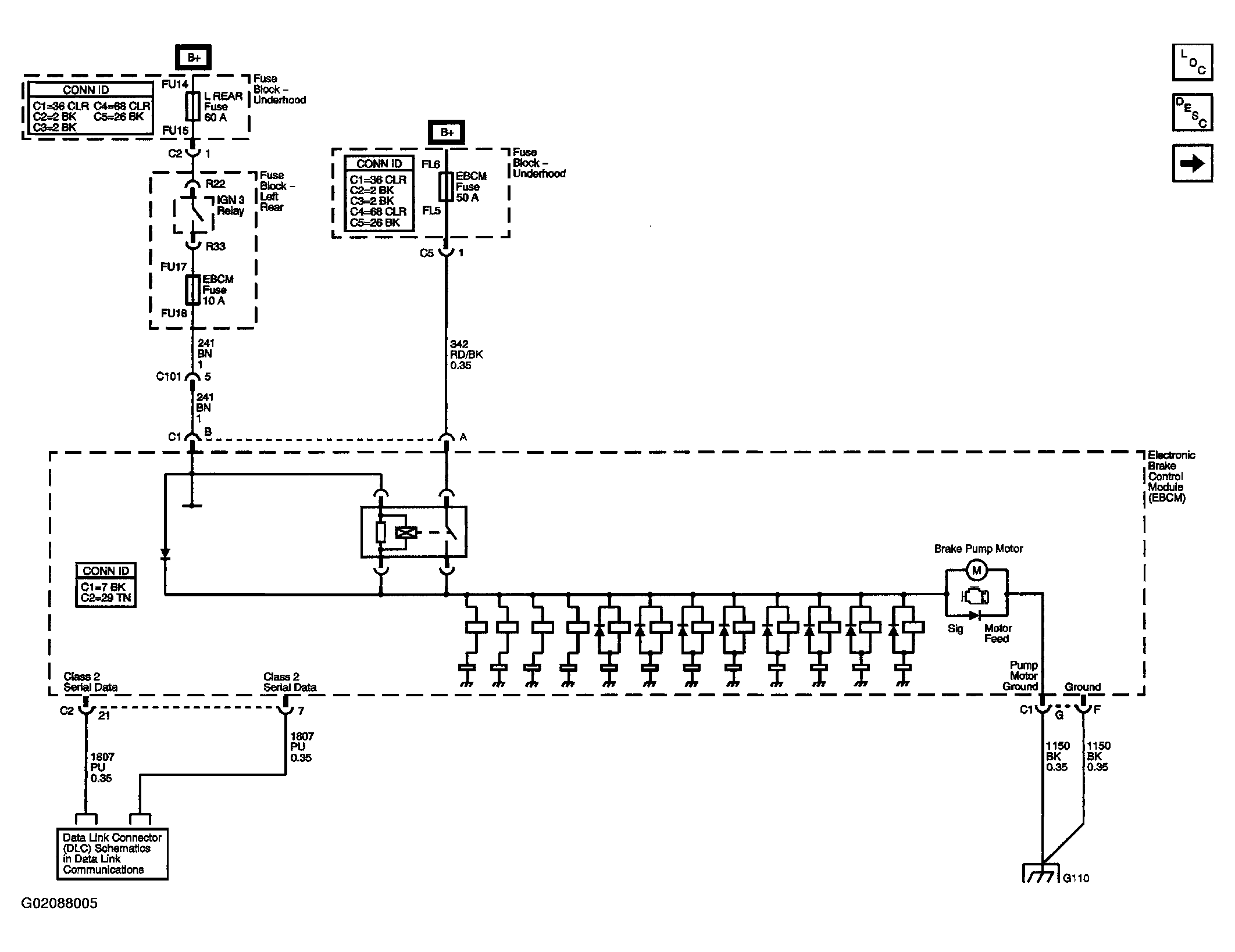

Fig 1: ABS Schematics (Module Power, Ground, and Serial Data)

Courtesy of GENERAL MOTORS CORP.

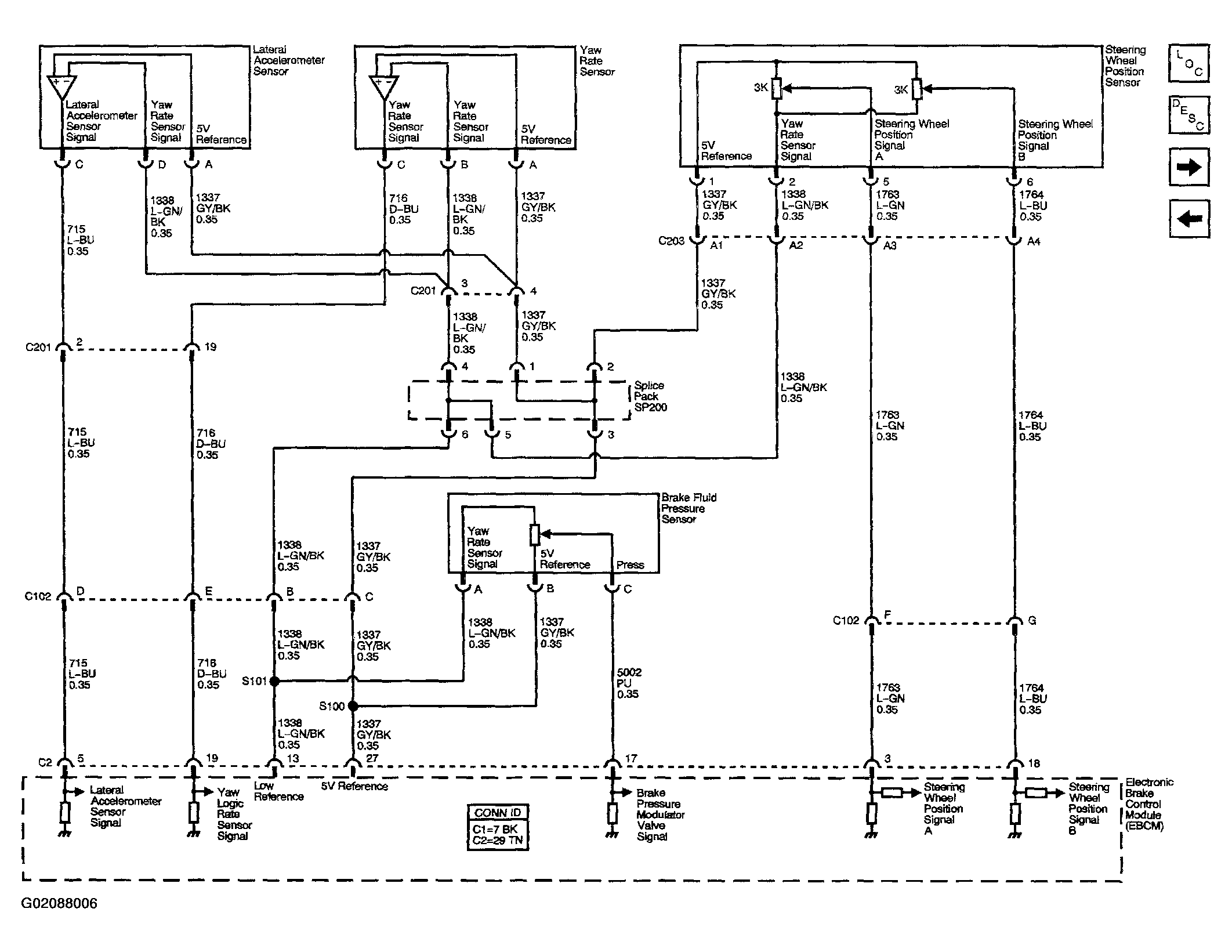

Fig 2: ABS Schematics (Vehicle Stability Enhancement System)

Courtesy of GENERAL MOTORS CORP.

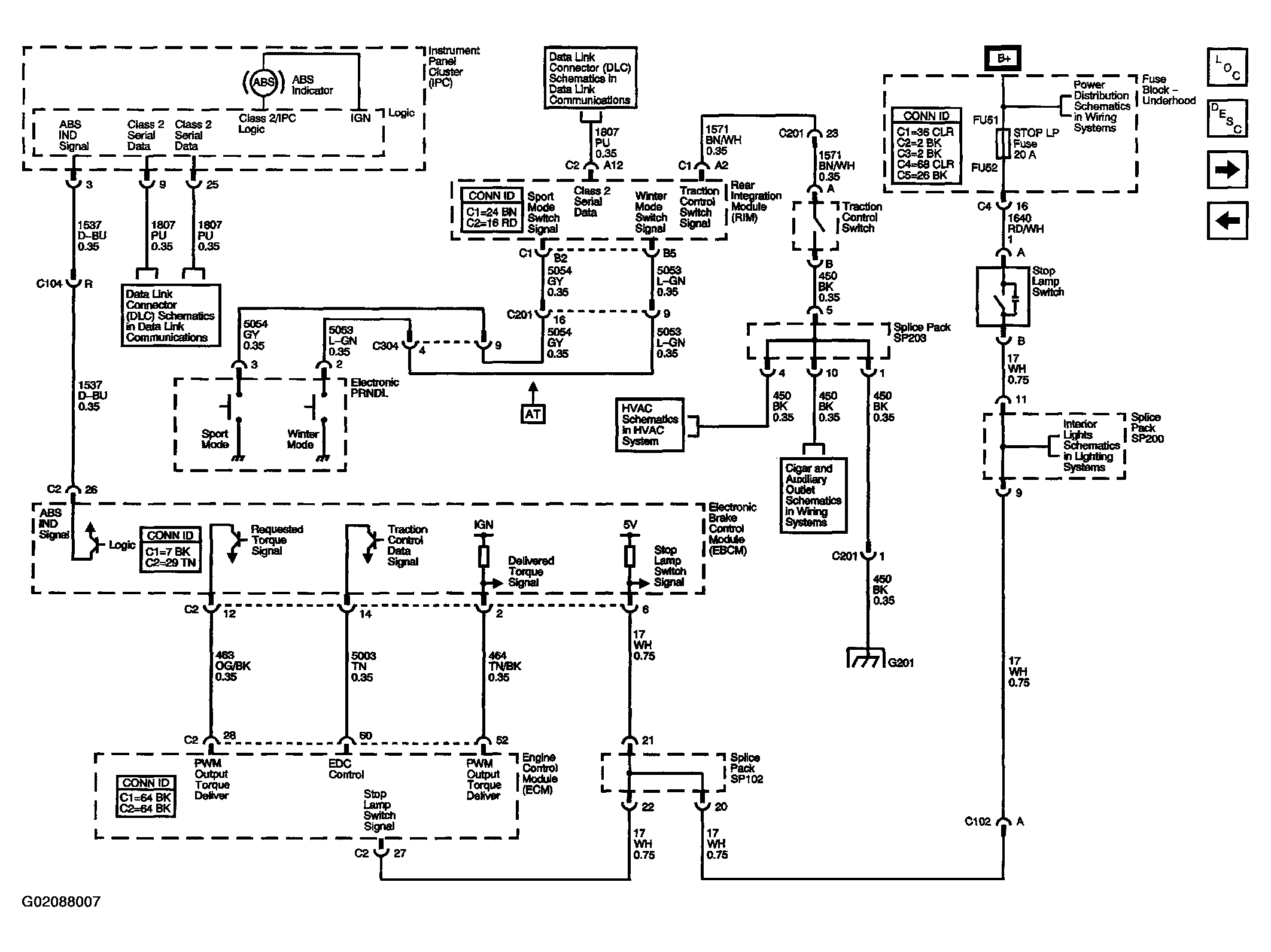

Fig 3: ABS Schematics (Switches and Indicators)

Courtesy of GENERAL MOTORS CORP.

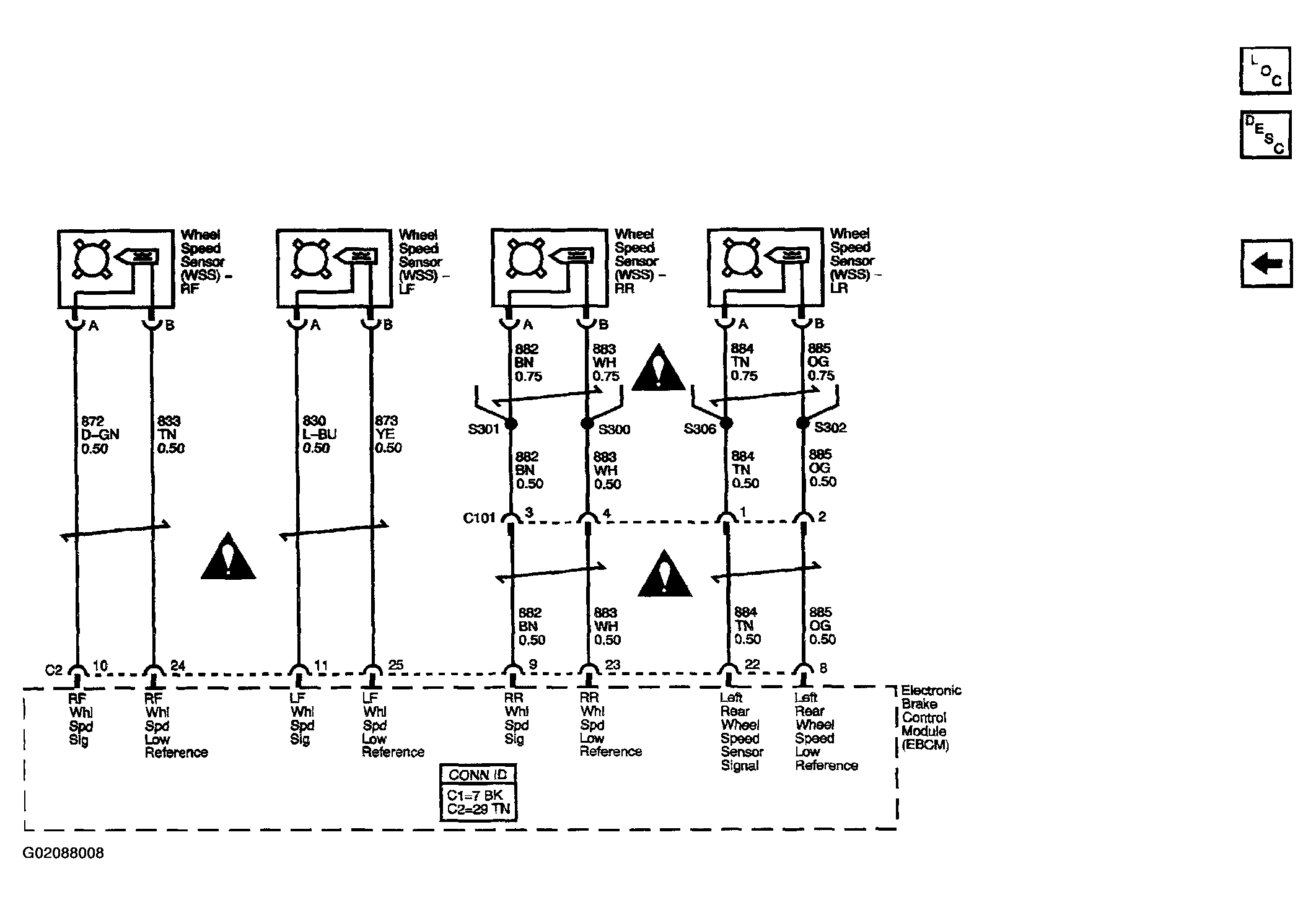

Fig 4: ABS Schematics (Wheel Speed Sensors)

Courtesy of GENERAL MOTORS CORP.
