Sunroof Limit Switch Connector End View
Sunroof Limit Switch Connector End View

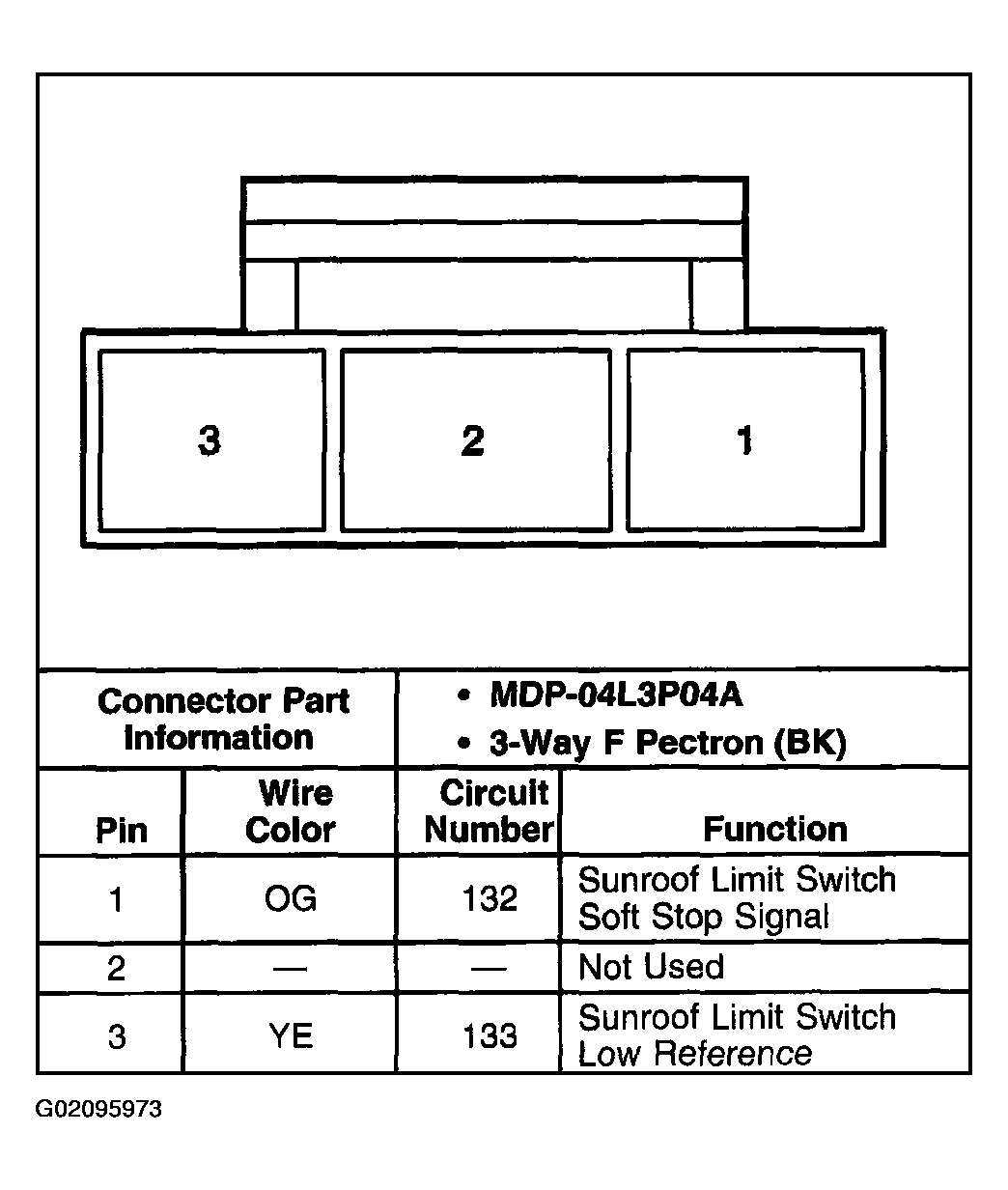

Fig 1: Sunroof Limit Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
