Home › Cadillac › 2003 › CTS Standard › Repair and Diagnosis › Electrical › Horns › Component Locator › Horns Connector End Views

Horns Connector End Views

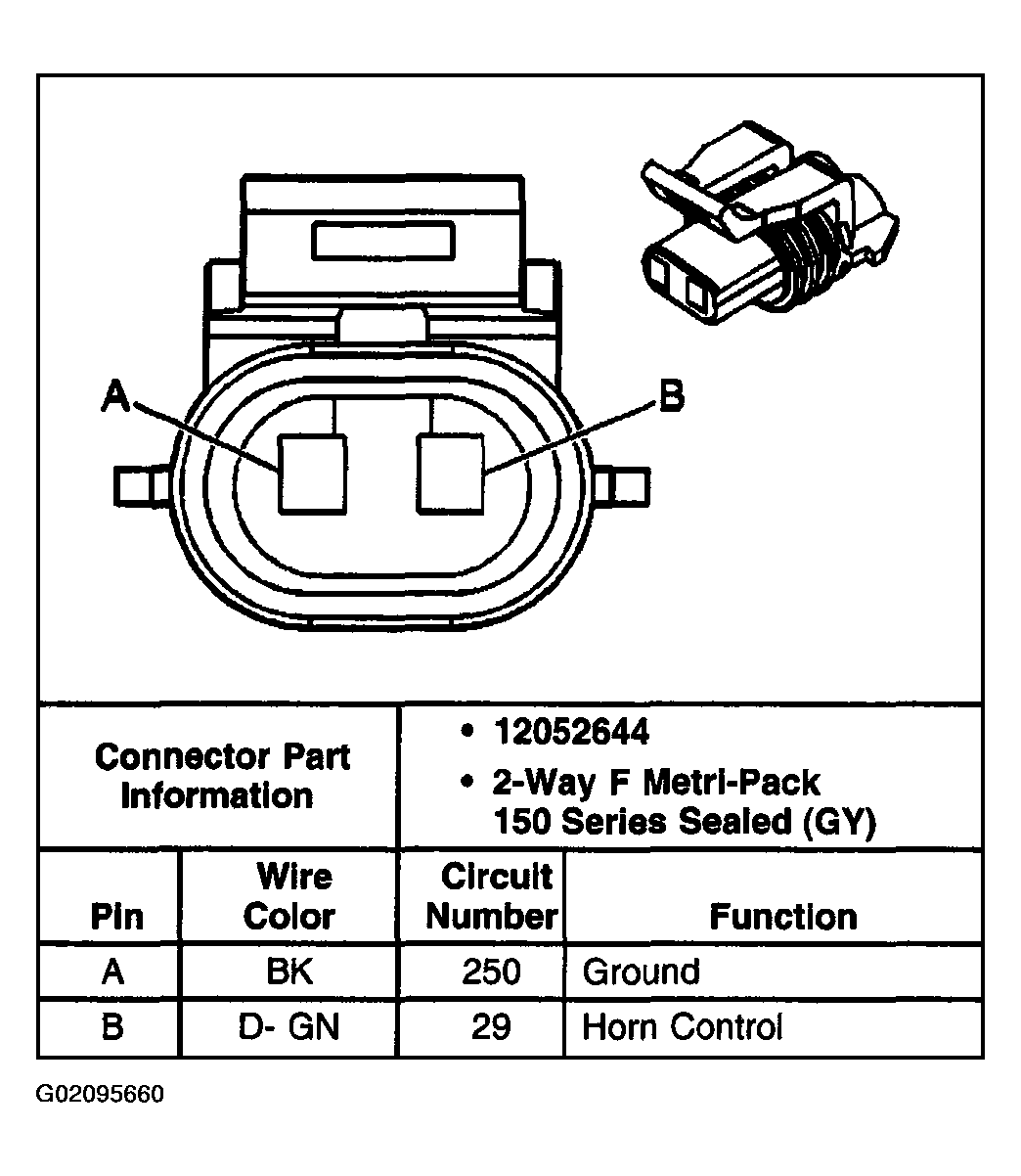

Fig 1: Dual Horn Connector End View
G02095660Courtesy of GENERAL MOTORS CORP.
