Cooling Systems

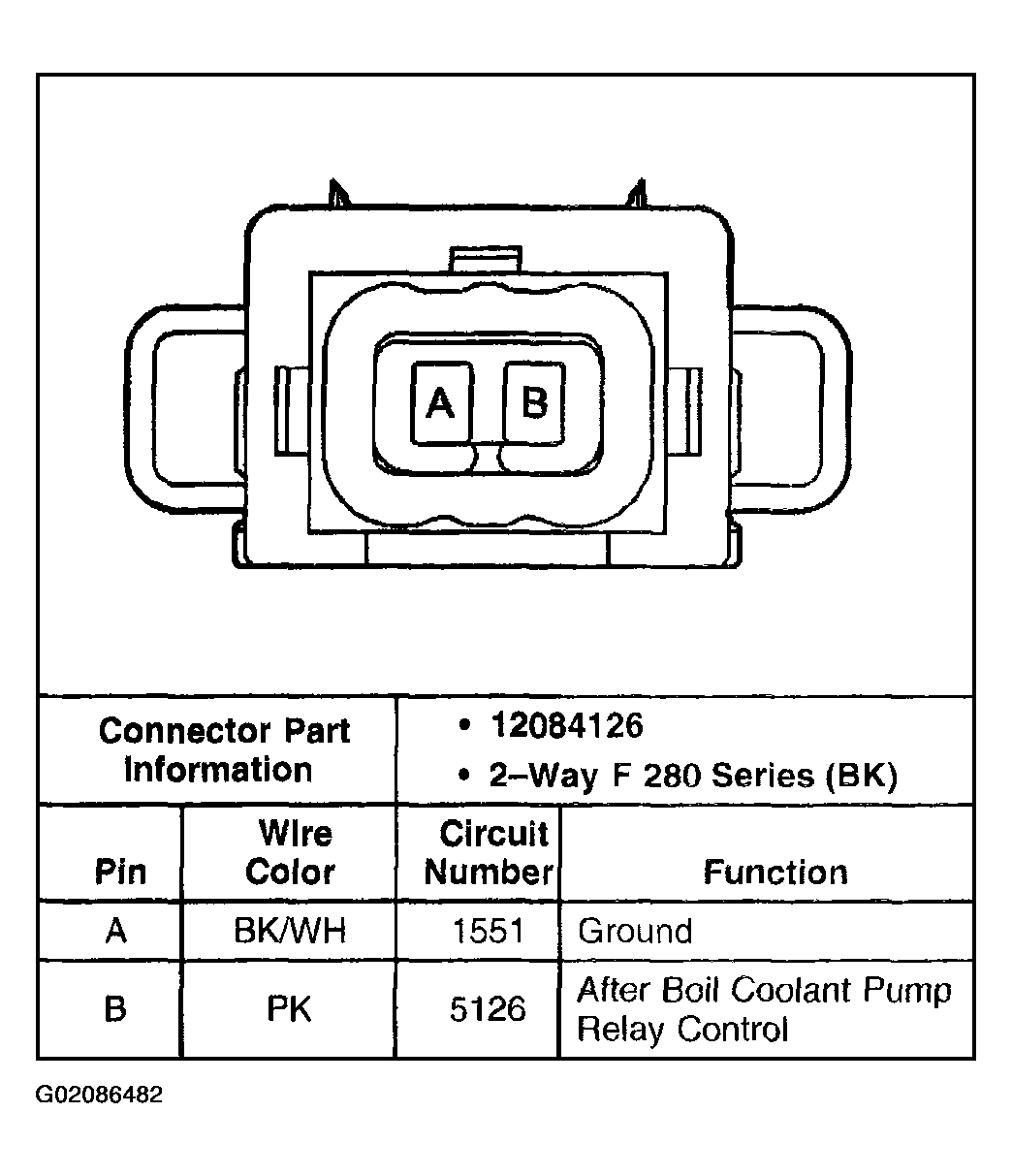

Fig 1: After Boil Coolant Pump Connector End View
G02086482Courtesy of GENERAL MOTORS CORP.

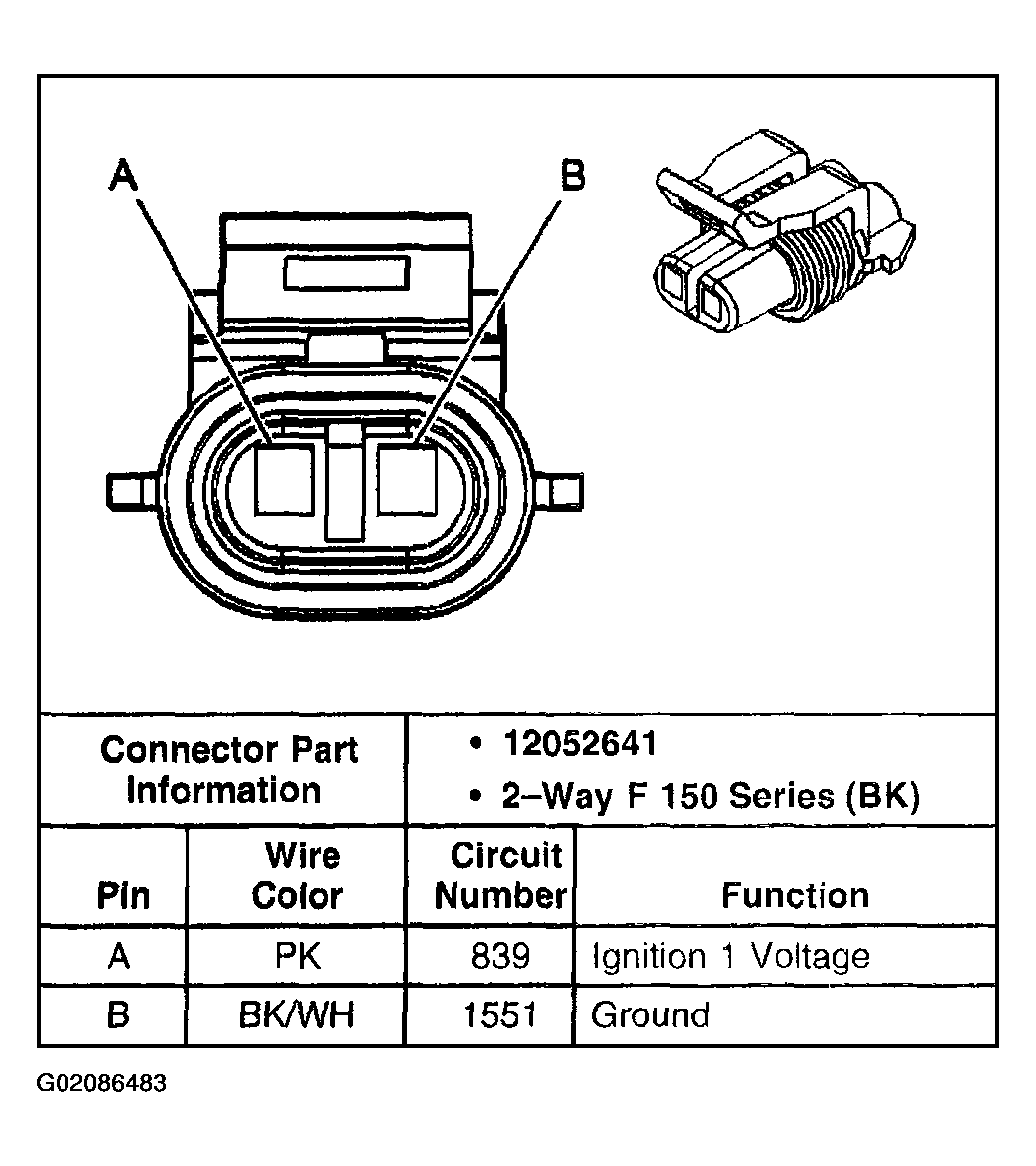

Fig 2: Coolant By-Pass Solenoid Connector End View
G02086483Courtesy of GENERAL MOTORS CORP.

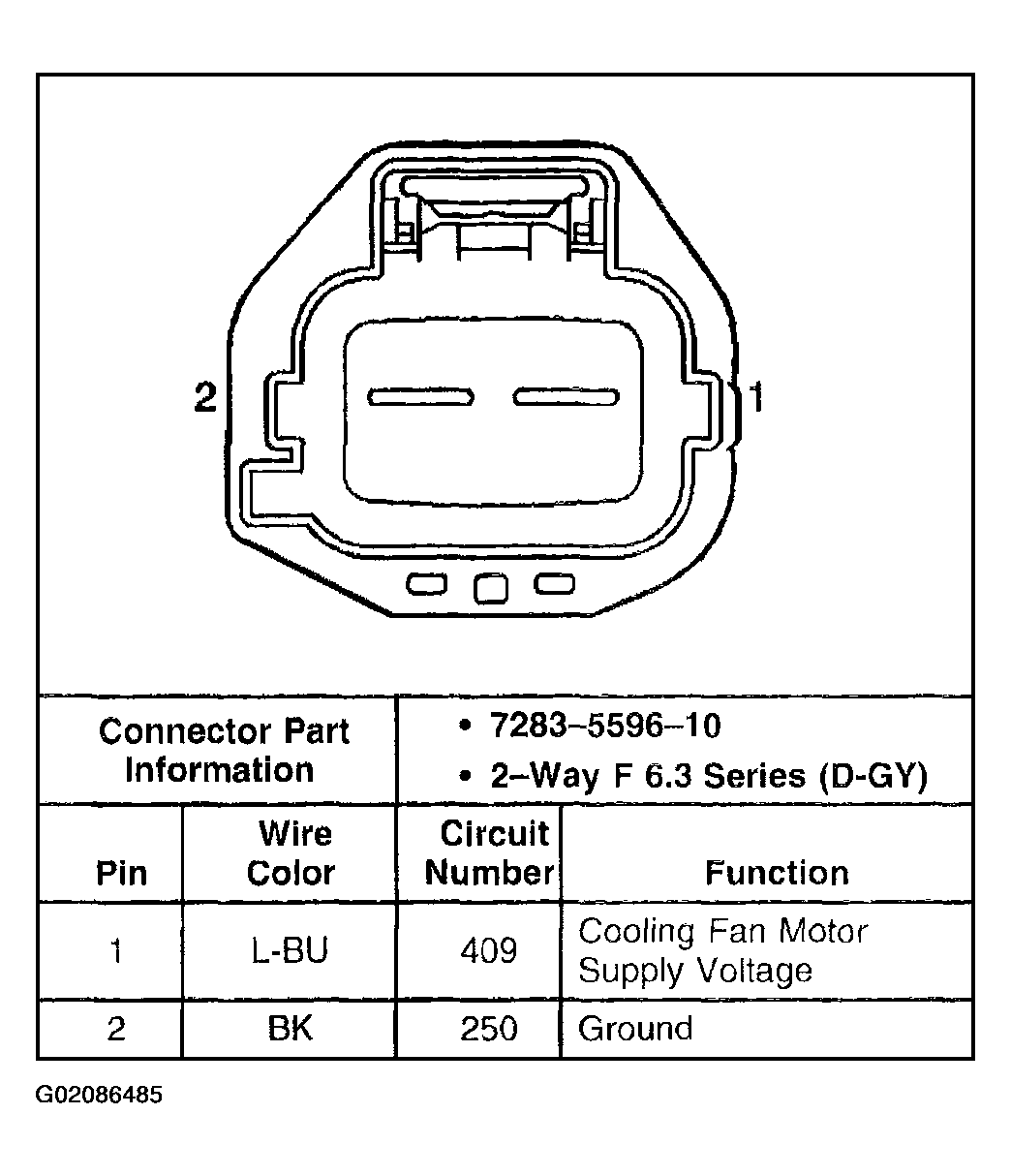

Fig 3: Cooling Fan - Right Connector End View
G02086484Courtesy of GENERAL MOTORS CORP.

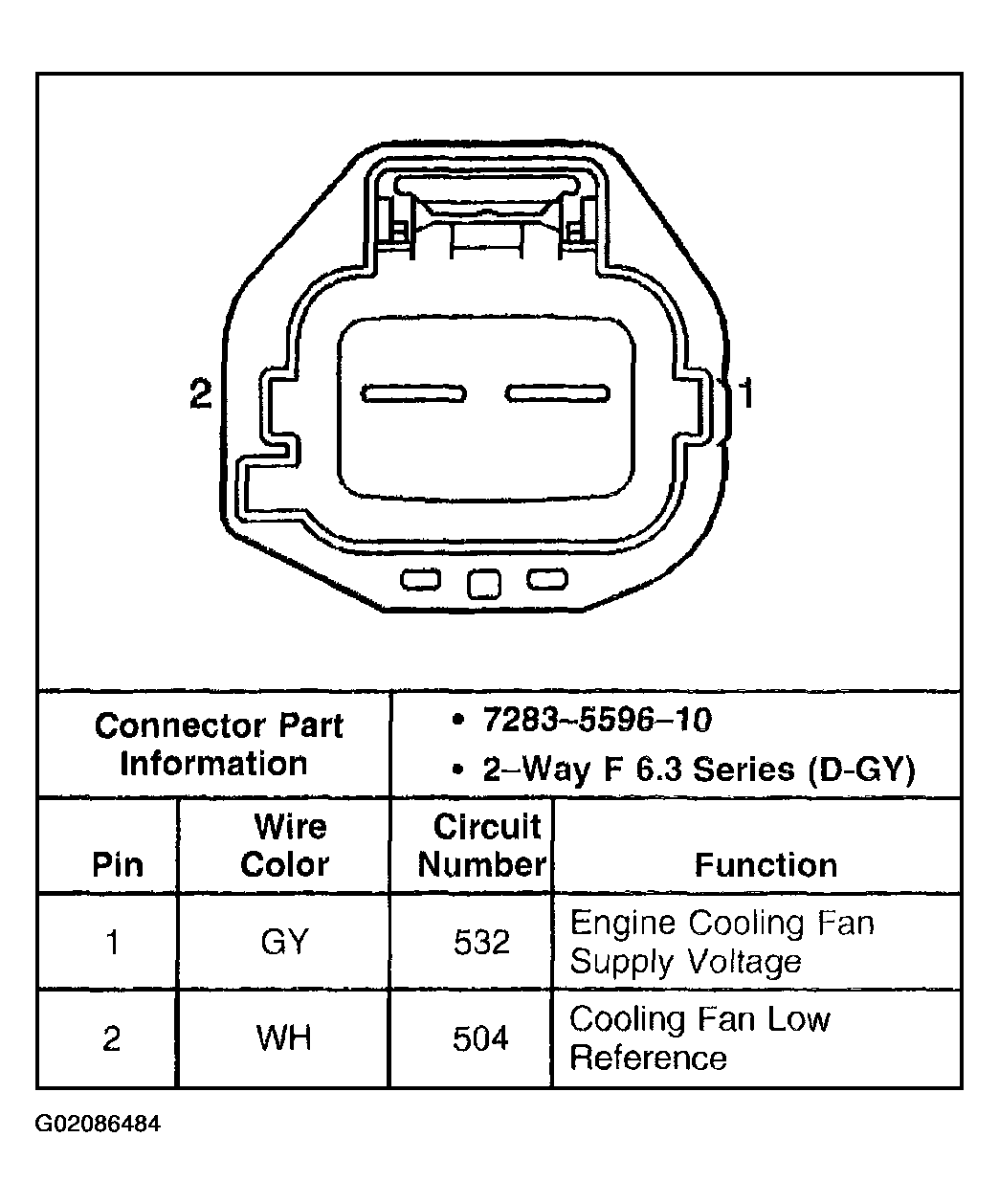

Fig 4: Cooling Fan - Left Connector End View
G02086485Courtesy of GENERAL MOTORS CORP.

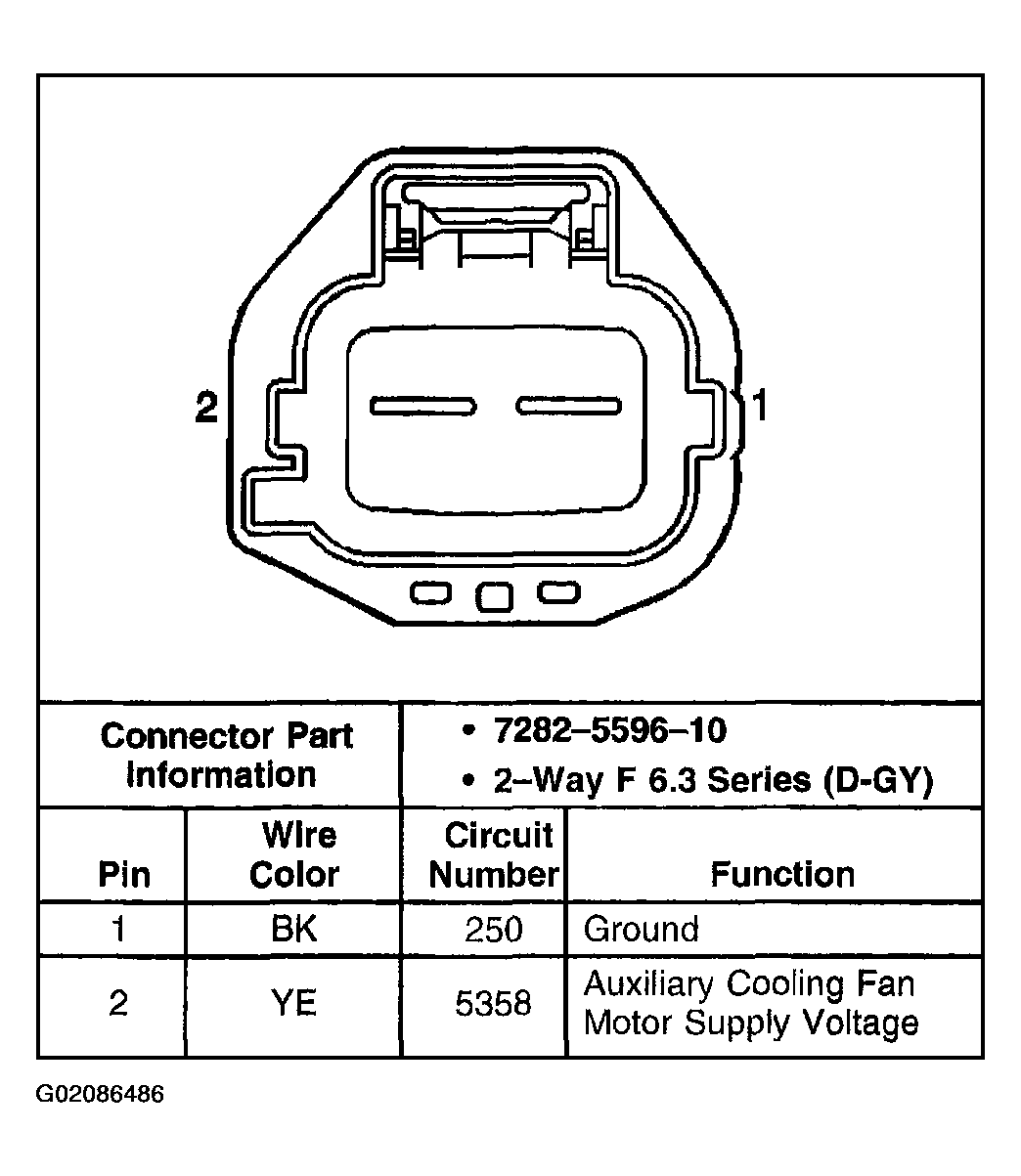

Fig 5: Cooling Fan - Auxiliary Connector End View
G02086486Courtesy of GENERAL MOTORS CORP.

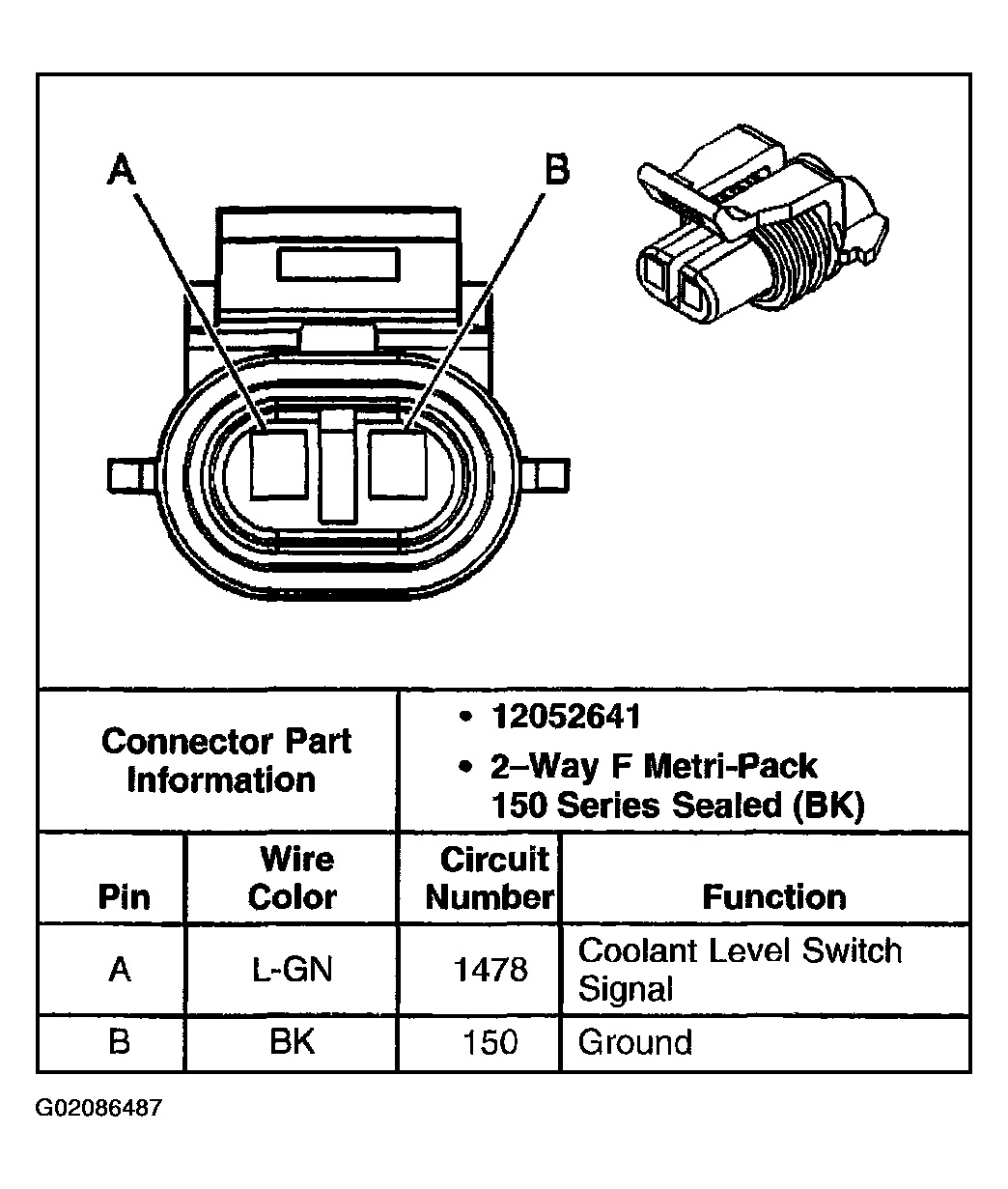

Fig 6: Coolant Level Switch Connector End View
G02086487Courtesy of GENERAL MOTORS CORP.
