Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Place the data link connector into position.
CAUTION: Refer to FASTENER NOTICE .
Install the bolts/screws to the data link connector.
Tighten

Tighten the bolts/screws to 2 N.m (18 lb in).

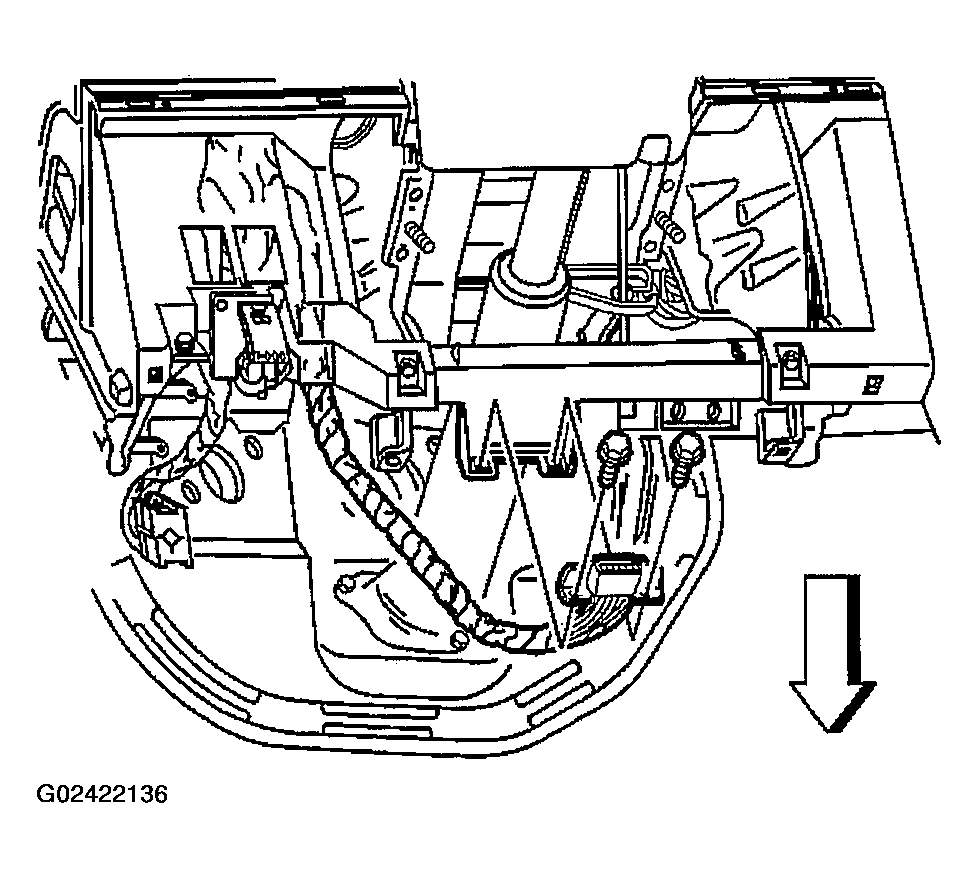

Fig 1: Installing Data Link Connector
Courtesy of GENERAL MOTORS CORP.
