Cruise Control Switch Connector End View
Cruise Control Switch Connector End View

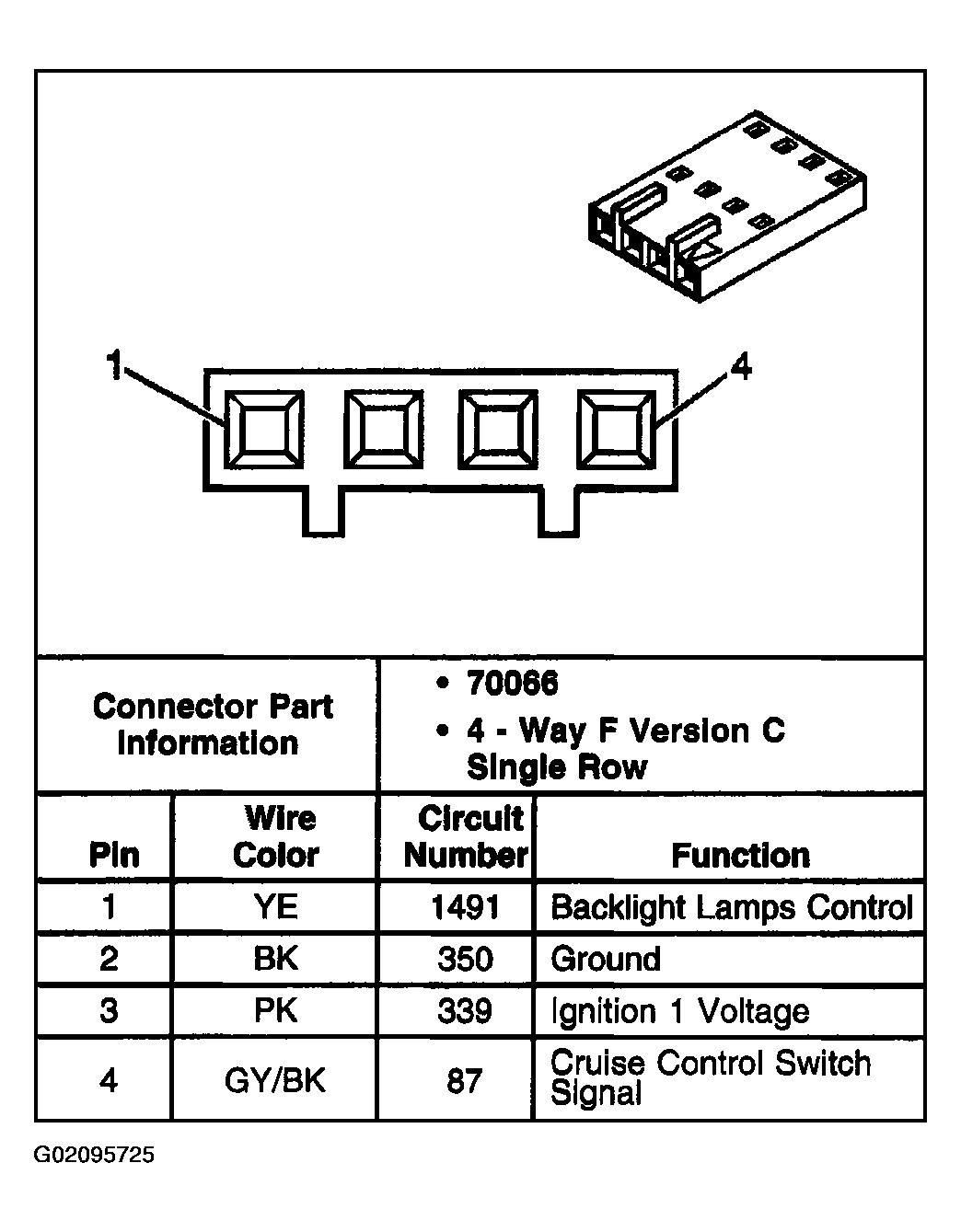

Fig 1: Cruise Control Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
