HVAC Control Module Connector End View (2 Of 2)

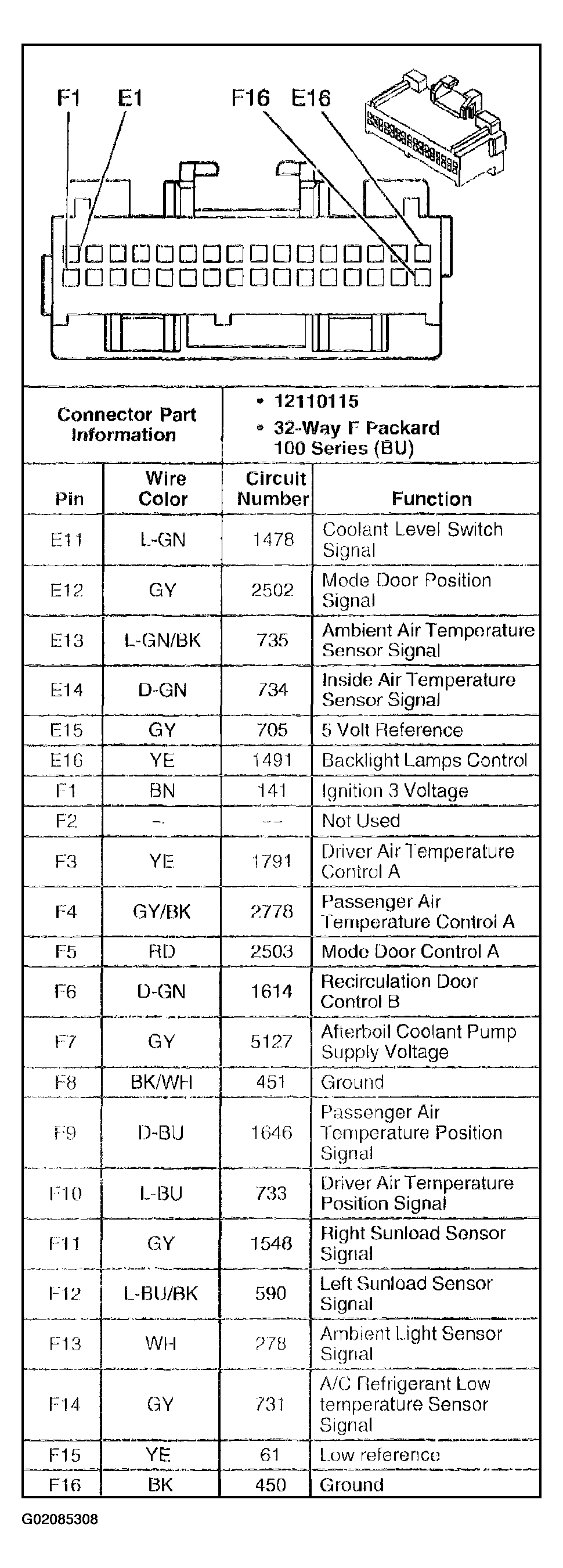

Fig 1: HVAC Control Module (2 Of 2)
G02085308Courtesy of GENERAL MOTORS CORP.
