Memory Seat Module (MSM) Connector End View - C3

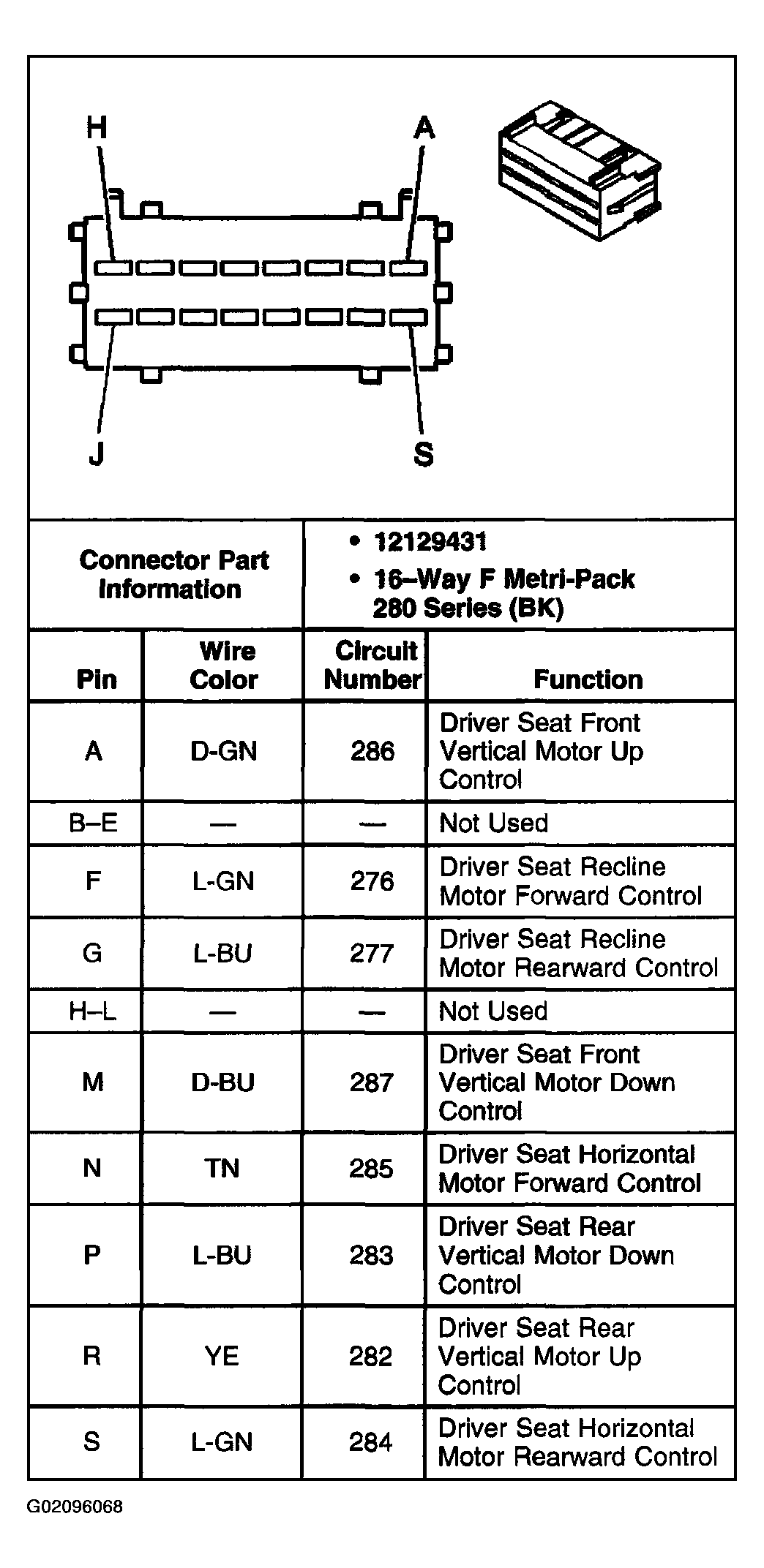

Fig 1: Memory Seat Module (MSM) - C3
G02096068Courtesy of GENERAL MOTORS CORP.
