Steering Wheel Position Sensor Connector End View
Steering Wheel Position Sensor Connector End View

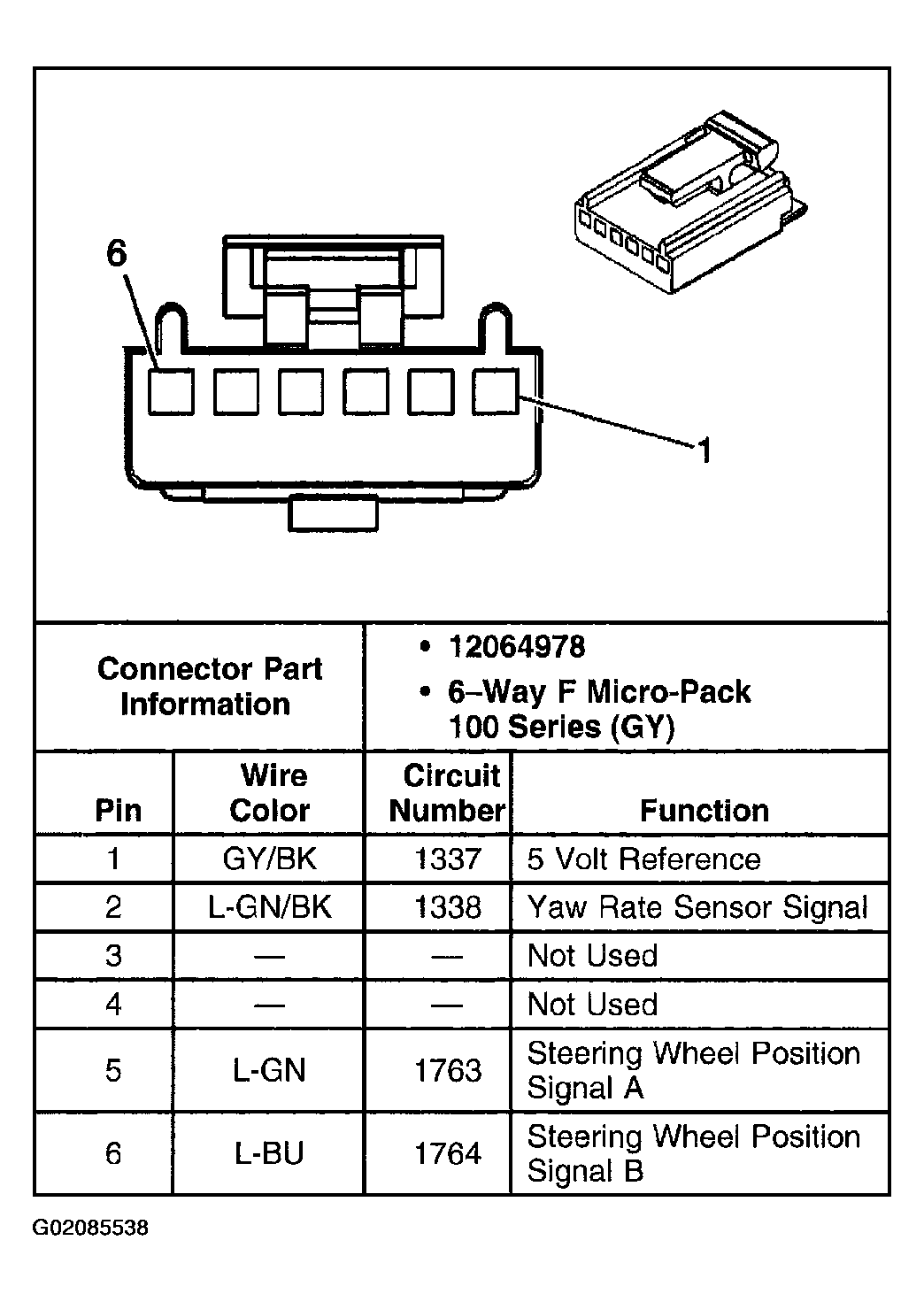

Fig 1: Steering Wheel Position Sensor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
