Yaw Rate Sensor Connector End View
Yaw Rate Sensor Connector End View

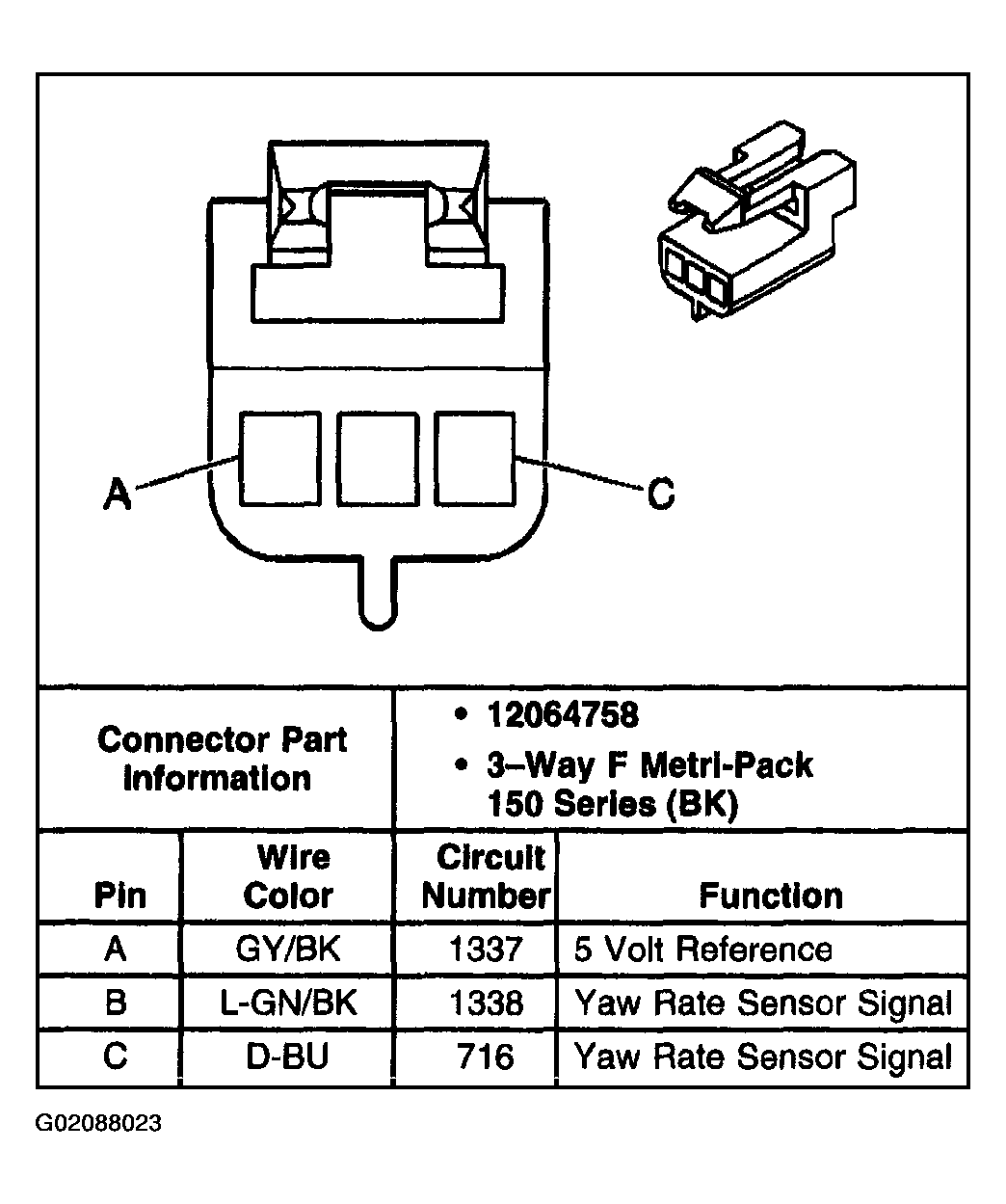

Fig 1: Yaw Rate Sensor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
