Installation Procedure

  1. Install the power steering cooler pipe/hose to the vehicle.
  2. Connect the power steering cooler pipe/hose to the power steering reservoir.
    Fig 1: Power Steering Cooler Pipe & Power Steering Reservoir
    G02085459Courtesy of GENERAL MOTORS CORP.
  3. Connect the power steering cooler pipe/hose to the power steering cooler.

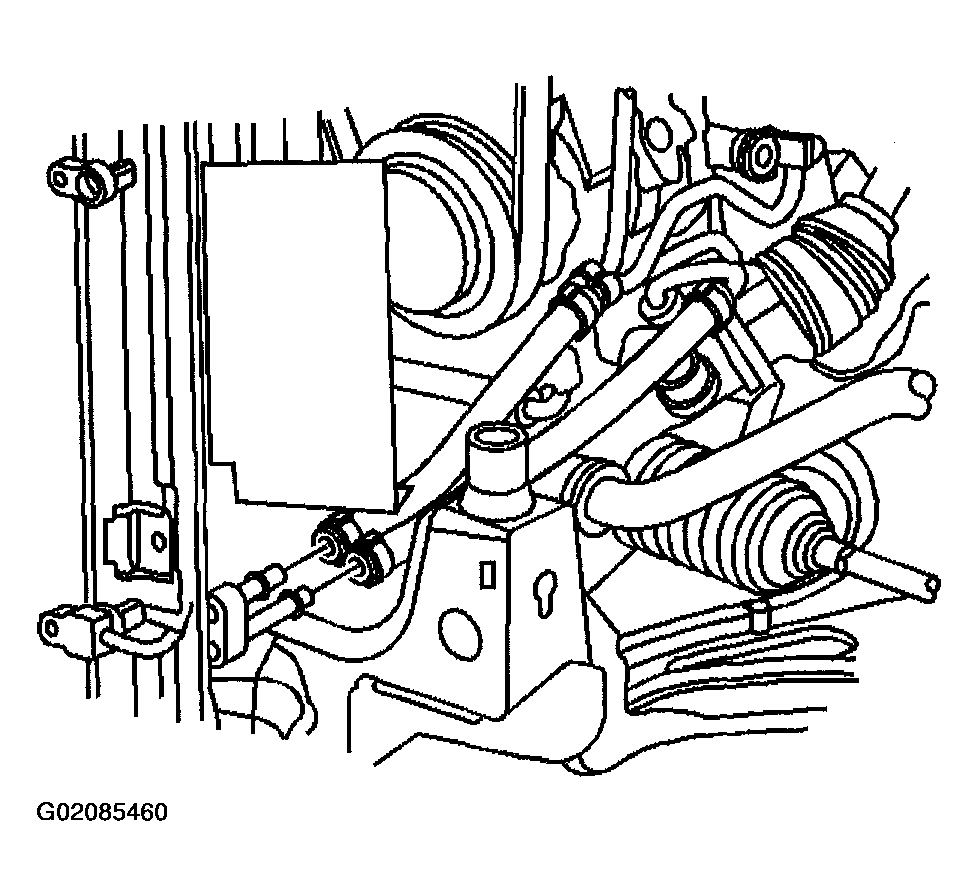

    Fig 2: Power Steering Cooler Pipe & Power Steering Cooler
    G02085460Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the retaining nut for the power steering cooler pipe/hose at the air conditioning compressor.

    Tighten

    Tighten the nut to 8 N.m (71 lb in).

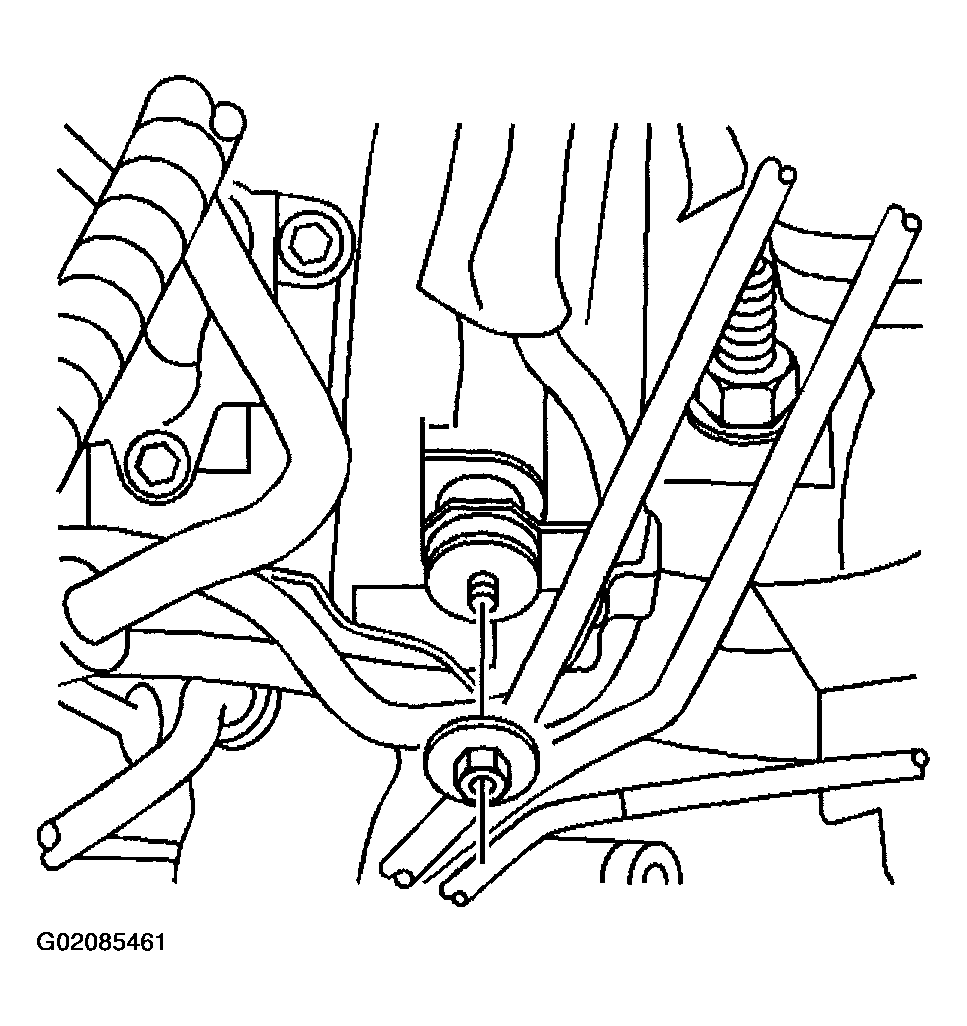

    Fig 3: Retaining Nut For Power Steering Cooler Pipe
    G02085461Courtesy of GENERAL MOTORS CORP.
  5. Connect the retaining clip to the power steering cooler pipe/hose at the power steering pressure hose.
  6. Install the air cleaner assembly. Refer to AIR CLEANER ASSEMBLY in Engine Controls - 2.6L and 3.2L.
  7. Remove the drain pan from under the vehicle.
  8. Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM .

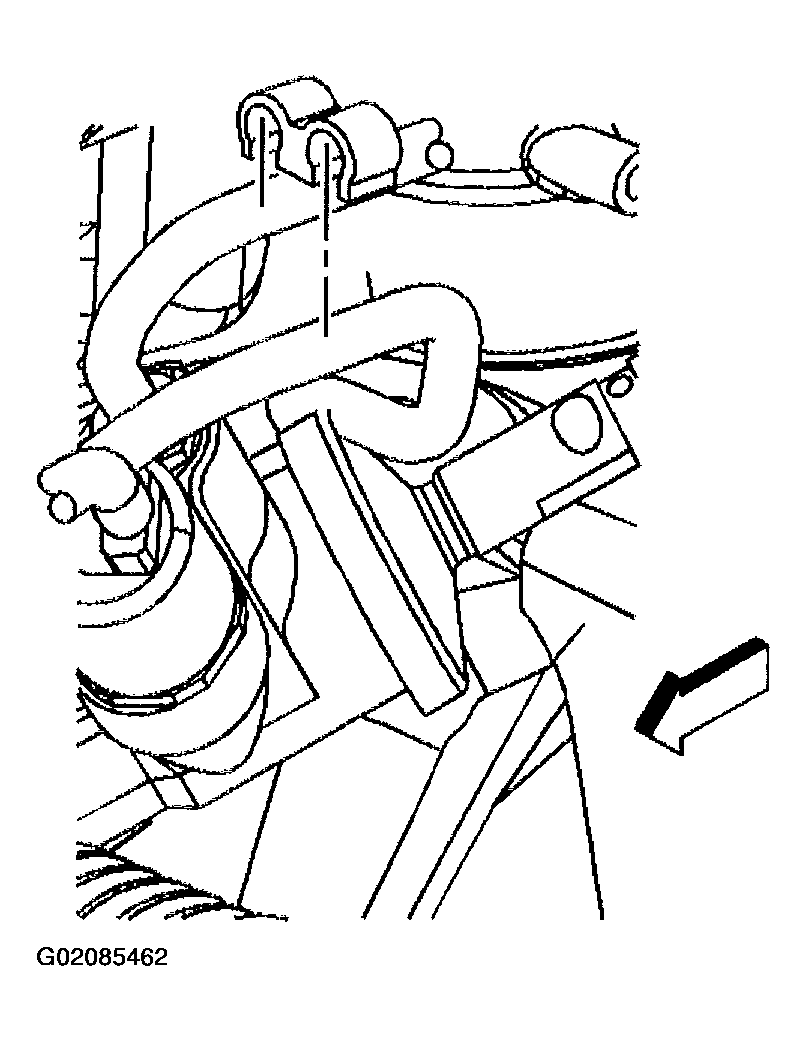

    Fig 4: Retaining Clip To Power Steering Cooler Pipe
    G02085462Courtesy of GENERAL MOTORS CORP.
