Removal Procedure

Place a drain pan under the vehicle.
Disconnect the power steering return hose from the power steering reservoir.

Fig 1: Power Steering Return Hose
Courtesy of GENERAL MOTORS CORP.
Disconnect the power steering reservoir outlet hose from the power steering reservoir.

Fig 2: Power Steering Reservoir Outlet
Courtesy of GENERAL MOTORS CORP.
Disconnect the brake vacuum hose from the power steering reservoir.
Disconnect the wiring harness (2) from the power steering reservoir (1).

Fig 3: Wiring Harness Power Steering Reservoir
Courtesy of GENERAL MOTORS CORP.
Remove the power steering reservoir mounting bolts (1 and 3).
Remove the power steering reservoir (2).

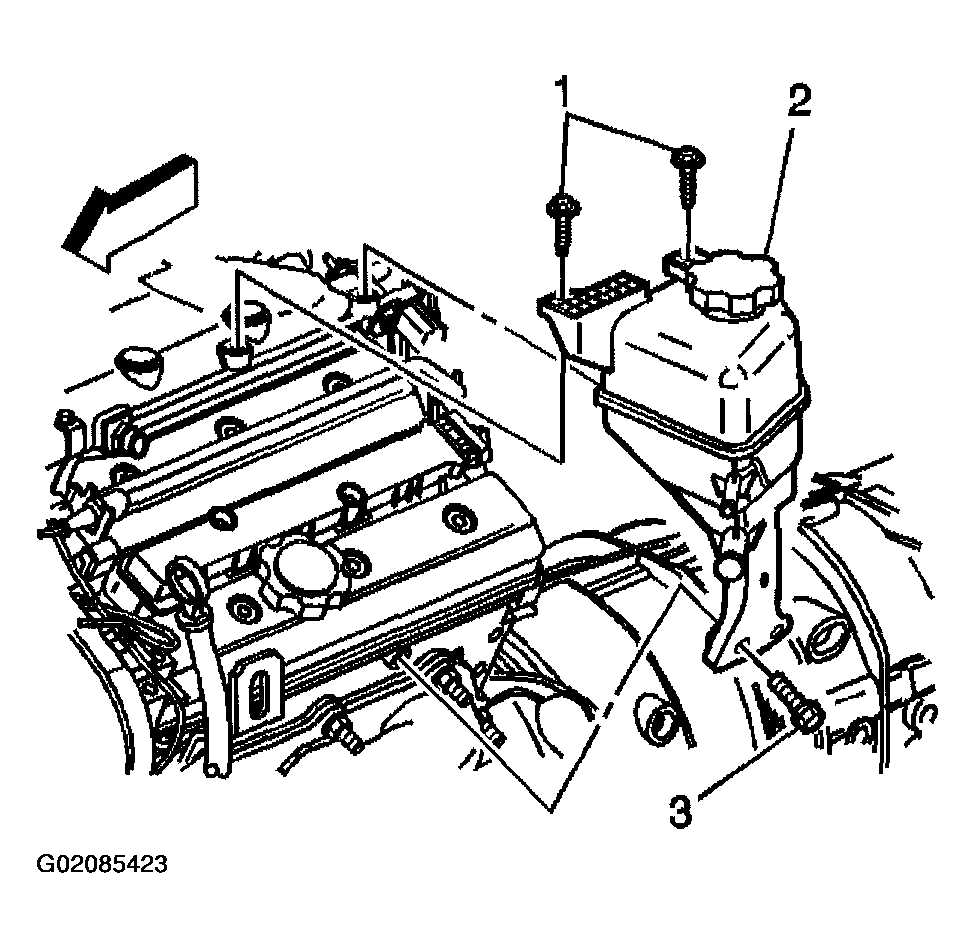

Fig 4: Power Steering Reservoir
Courtesy of GENERAL MOTORS CORP.
