Shift Lever Does Not Move With Brake Pedal Depressed

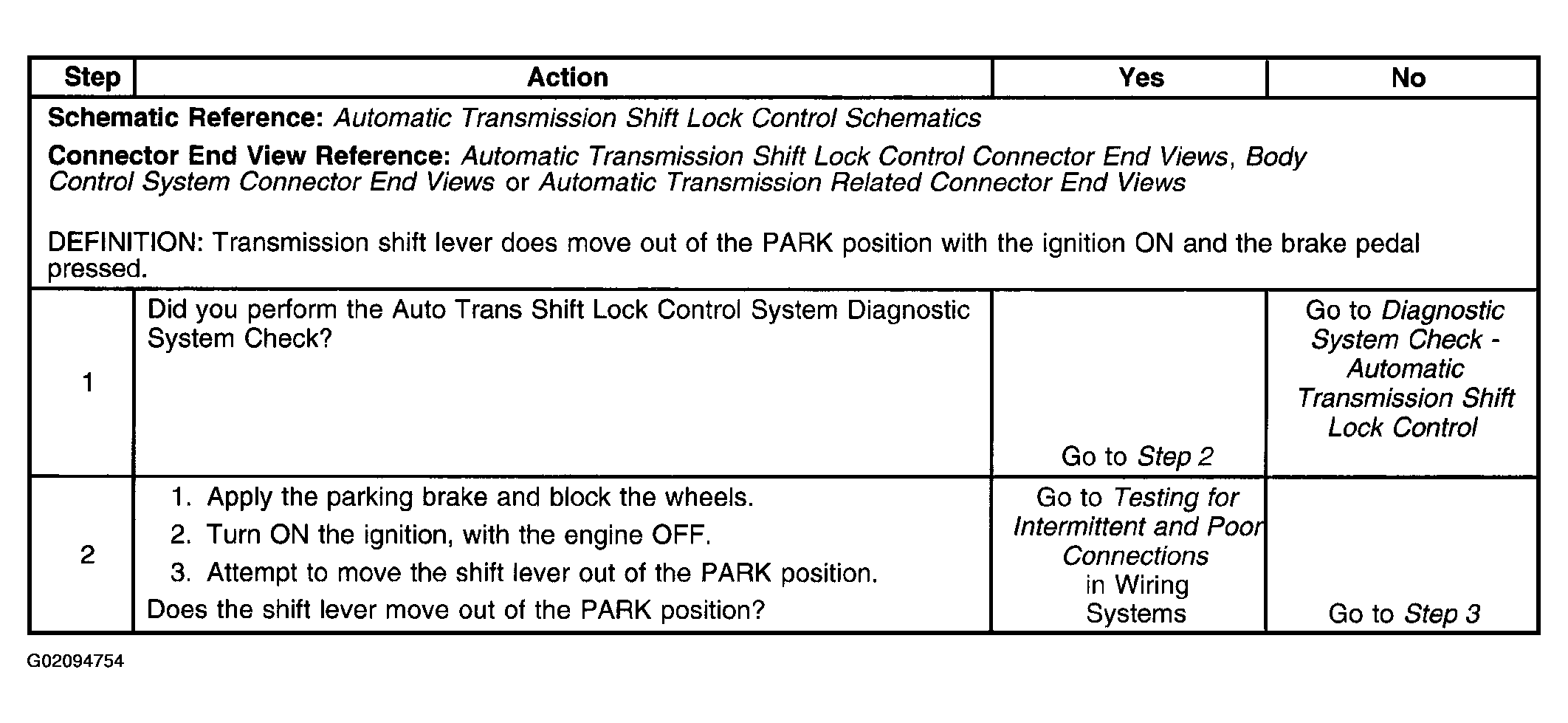

Fig 1: Shift Lever Does Not Move With Brake Pedal Depressed (Steps 1 - 2)
G02094754Courtesy of GENERAL MOTORS CORP.

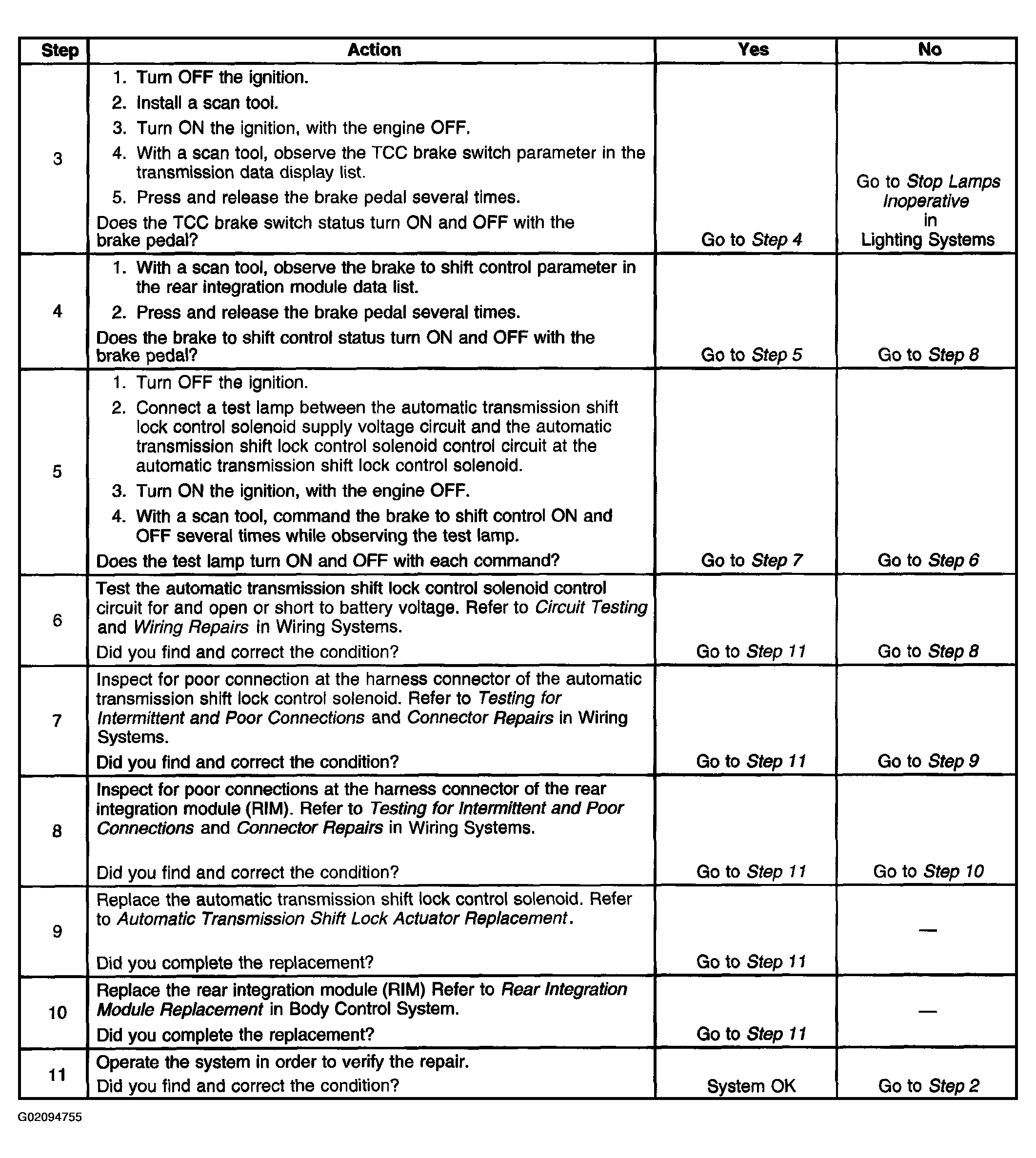

Fig 2: Shift Lever Does Not Move With Brake Pedal Depressed (Steps 3 - 11)
G02094755Courtesy of GENERAL MOTORS CORP.
