Manual Transmission - M35 (Unit Repair)
›
Component Locator
›
Disassembled Views
Disassembled Views

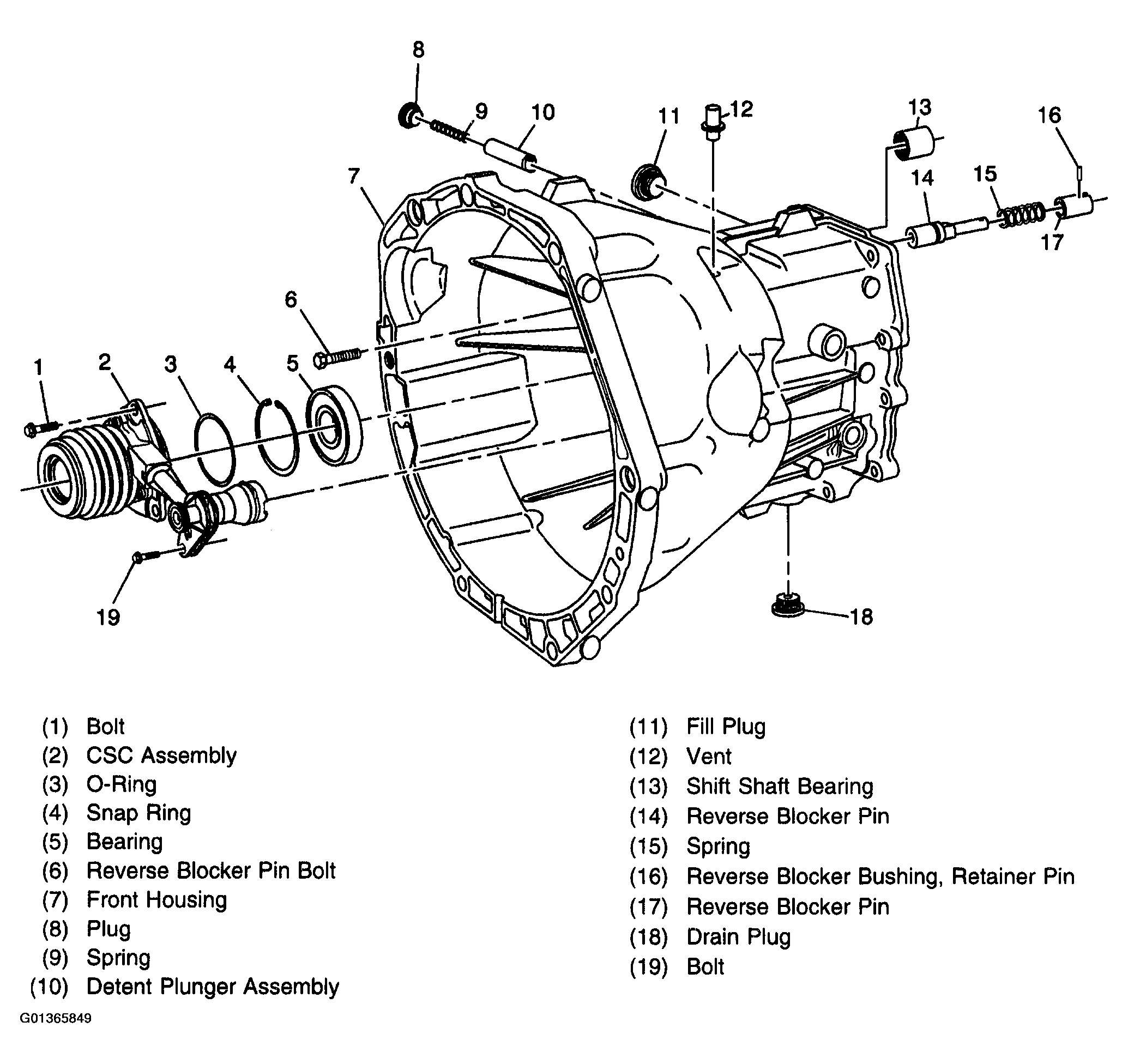

Fig 1: Disassembled Views - Front Unit
Courtesy of GENERAL MOTORS CORP.

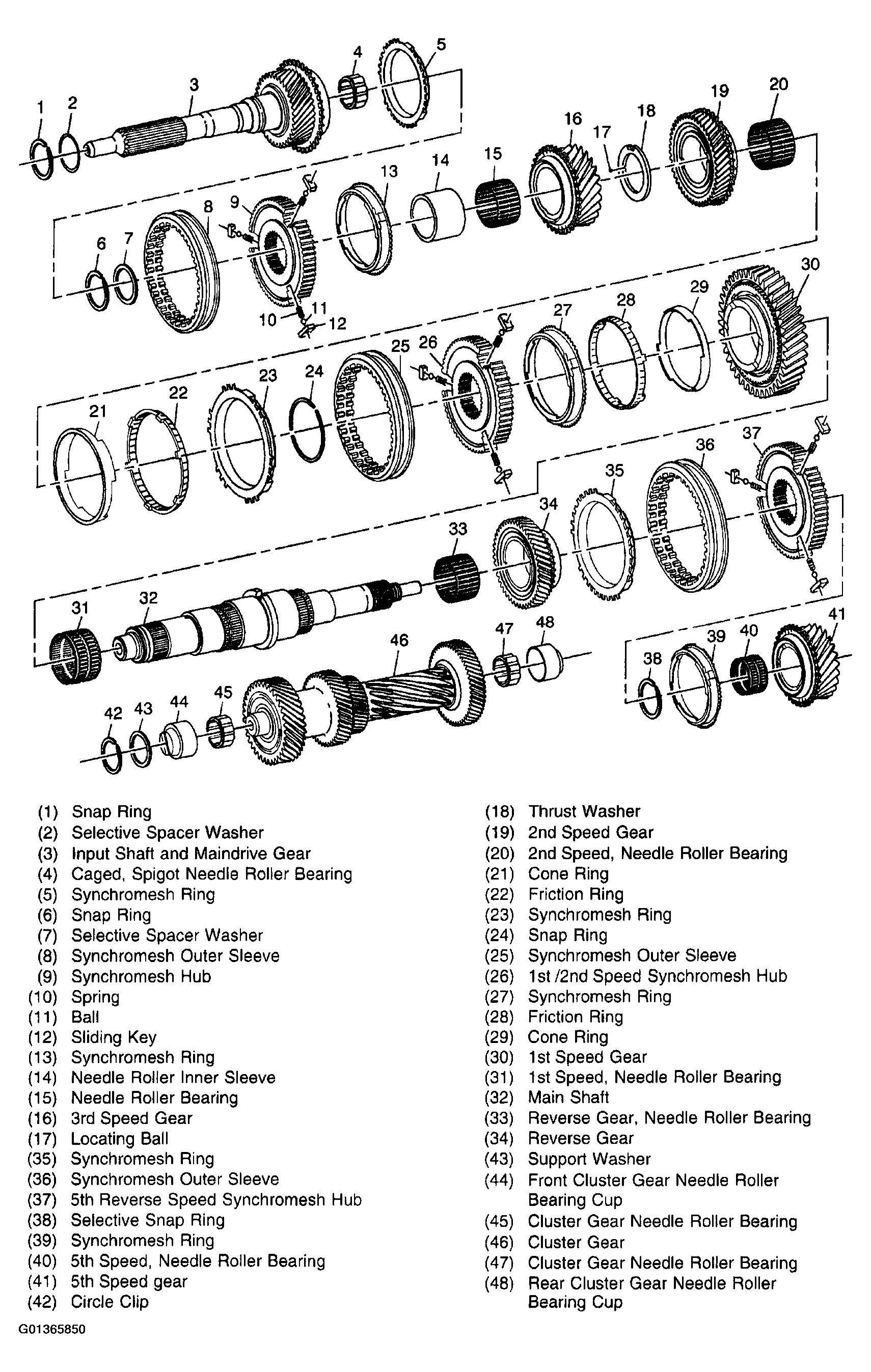

Fig 2: Disassembled Views - Gears
Courtesy of GENERAL MOTORS CORP.

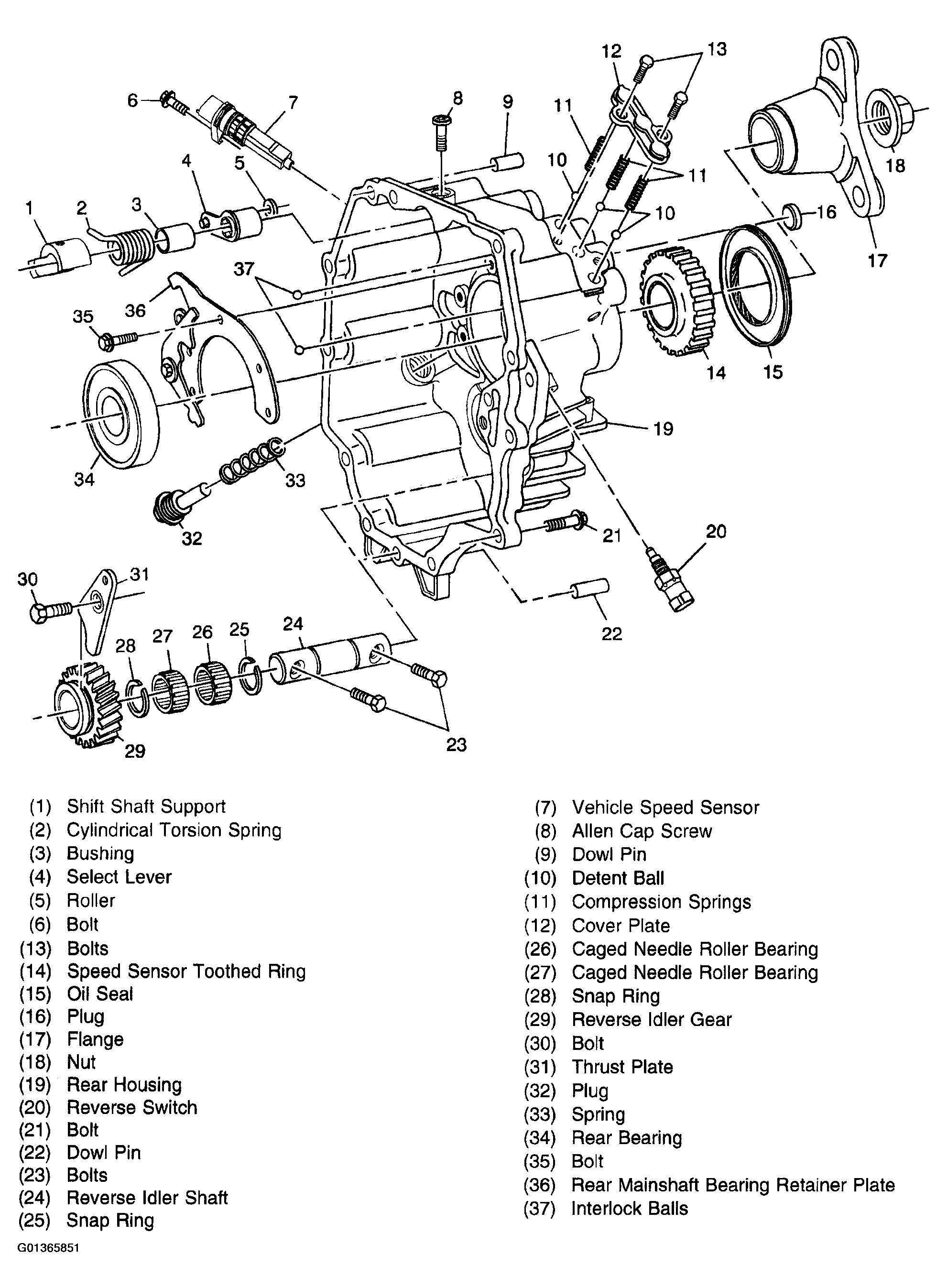

Fig 3: Disassembled Views - Rear Unit
Courtesy of GENERAL MOTORS CORP.

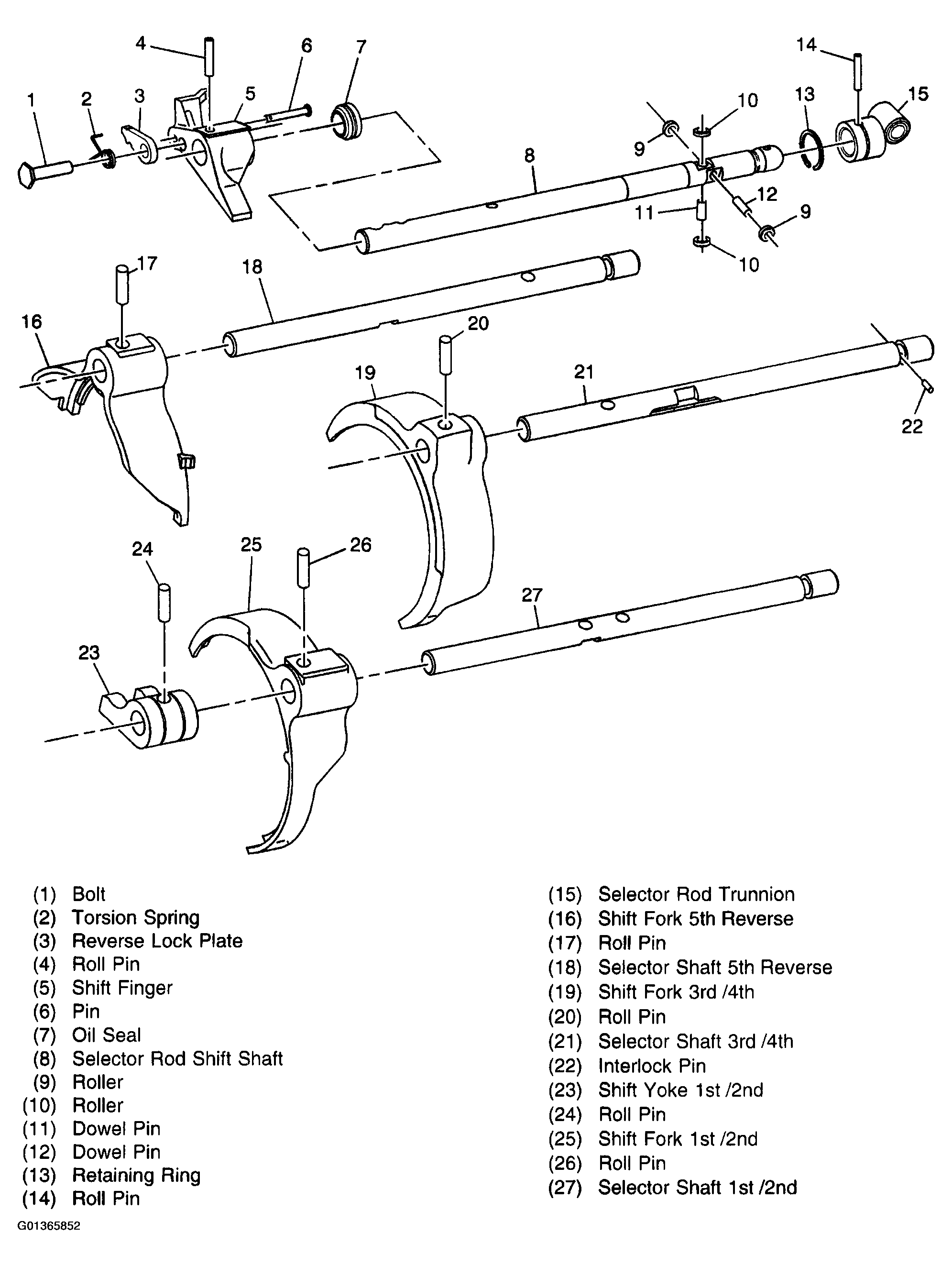

Fig 4: Disassembled Views - Shift Forks
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
